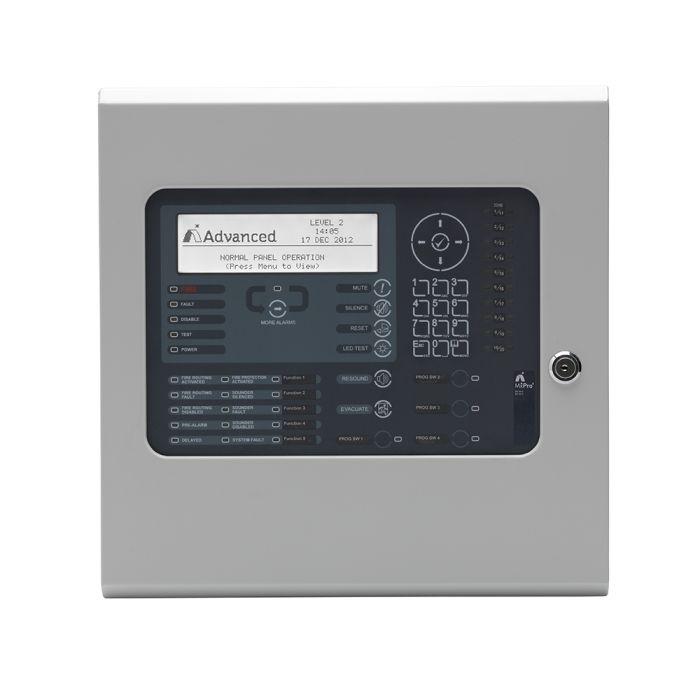

Advanced MxPro 5 1 Loop Panel
1 Loop Addressable Fire Alarm Panel
Apollo/Hochiki Protocol
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
The MxPro 5 series control panels are supplied with a single loop driver card, 2 onboard sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 system LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation.
The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple 'select & click' programming aid for engineer configuration and end user operation.
Powerful cause-and-effect programming coupled with dynamic zoning, and enhanced trace diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable on-site via the on-board alphanumeric keypad, or PC-NeT Configuration Software.
An extensive suite of user-friendly Windows based PC software programs has been developed to enhance your experience when using MxPro 5 series fire panels. The suite incorporates a number of different programmes which include configuration, service, logo and virtual panel tools to allow the flexibility of the equipment to be fully explored.
Simply adding a network card allows the panel to communicate with any other MxPro 5 fire panel, remote terminal, or network periferal, such as ipGateway™, BMS or graphical interface. The network operates as a true peer-to-peer system and can be configured in a fault tolerant loop or radial format.
Features:
- 20 programmable zonal / 25 System LEDs
- Apollo, ArgusVega, Hochiki & Nittan Evolution protocol support
- Advanced graphical LCD user interface and support for up to 200 fire zones by default allowing full EN54 compliance without additional hardware
- Dedicated USB & RS232 Serial Port for direct PC or modem connection
- Installer friendly Auto-learn, Loop Detection and Onboard Scope facility
- Graphical display configurable for virtually any language
- Robust removable equipment chassis with plug-inconnectors for simple fixing and cable termination
- Integral P-Bus for system expansion via available option cards
- Ad-NeT peer-to-peer network with up to 2000 zones
- Programmable push buttons
- Rack-mountoptions
- Multiple languages
- Global compliance
- Fully networkable
- 3-year warranty
- Fully programmable
- Installer's logo application
The MxPro 5 series control panels are supplied with a single loop driver card, 2 onboard sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 system LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation.
The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple 'select & click' programming aid for engineer configuration and end user operation.
Powerful cause-and-effect programming coupled with dynamic zoning, and enhanced trace diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable on-site via the on-board alphanumeric keypad, or PC-NeT Configuration Software.
An extensive suite of user-friendly Windows based PC software programs has been developed to enhance your experience when using MxPro 5 series fire panels. The suite incorporates a number of different programmes which include configuration, service, logo and virtual panel tools to allow the flexibility of the equipment to be fully explored.
Simply adding a network card allows the panel to communicate with any other MxPro 5 fire panel, remote terminal, or network periferal, such as ipGateway™, BMS or graphical interface. The network operates as a true peer-to-peer system and can be configured in a fault tolerant loop or radial format.
Features
- Connectivity to AdvancedLive (UK&I only), Ethernet connection on-board
- 20 programmable zonal / 25 System LEDs
- Apollo, Hochiki protocol support
- Advanced graphical LCD user interface and support for up to 200 fire zones by default allowing full EN54 compliance without additional hardware
- Dedicated USB & RS232 Serial Port for direct PC or modem connection
- Installer friendly Auto-learn, Loop Detection and Onboard Scope facility
- Graphical display configurable for virtually any language
- Robust removable equipment chassis with plug-inconnectors for simple fixing and cable termination
- Integral P-Bus for system expansion via available option cards
- Ad-NeT peer-to-peer network with up to 2000 zones
- Programmable push buttons
- Rack-mountoptions
- Multiple languages
- Global compliance
- Fully networkable
- 3-year warranty
- Fully programmable
- Installer's logo application
| Approval | EN54-2 , EN54-4, EN54-13 |
|---|---|
| Category Type | Panel |
| Colour | Grey |
| IP Rating | IP30 |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Base Technology | Dual flash-based processors with real-time clock, trace diagnostics, programmable languages and character sets |
| Display | White backlit 240 x 64 graphical LCD |
| LED Indicators | 22 red (1 x Fire, 1 x More Alarms, 20 x Zonal Programmable), 1 green (Power), 13 amber and 12 bi-colour (Fault & System) |
| Controls | Alpha numeric keypad permitting navigation, Reset, Mute, Silence, Resound, Evacuate, and 4 x programmable push buttons |
| Protocol | Apollo (Soteria / XP95 / Discovery), Hochiki ESP |
| Number of Fire Zones | 200 per individual panel - 2000 when networked |
| Number of Loops | 1 |
| Devices per Loop | Protocol dependent |
| Loop Current | 500mA |
| On-Board Sounder Circuits | 2 x 1 Amp programmable |
| On-Board Relays | 2 x 1 Amp 30v AC/DC programmable(10mA, 5v min) - expandable to 4 using MXP-507 |
| Auxiliary Supply | 1 x 24v 500mA |
| Programmable Input | 1 x monitored programmable input on-board |
| Programmable Key Switch Inputs | 1 x volt free input (standard enc.), 8 x inputs (M, L, D enc.) |
| Total Available Output Current | 3A maximum available for loop current + sounder outputs + auxiliary supply |
| Mains Supply | 200 - 240v 50-60 Hz AC (+10%, -15% tolerance) 1.0A Max |
| Charger Current | 1A temperature compensated |
| Ethernet Port | 10-Base-T, 100-Base-T - providing AdvancedLive connectivity (UK&I only) |
| Serial Port | 1 x on-board RS232 connection for PC, modem, IP, or portable printer |
| USB Interface | 1 x USB B type connection for PC communication |
| Programming | On-board keypad or PC running Windows tools |
| Event Log | 5000 event & diagnostic + 500 fire |
| Networking | Optional plug-in network card (MXP-503 - standard, or MXP-509 - fault-tolerant) |
| Printer (optional) | On-board (M, L, D enclosures only) |
| Enclosure / Colour | Steel IP30 / RAL7035 |
| Metalwork Options | Flushing bezel, battery box, utility enclosure, termination enclosure and rack mount |
