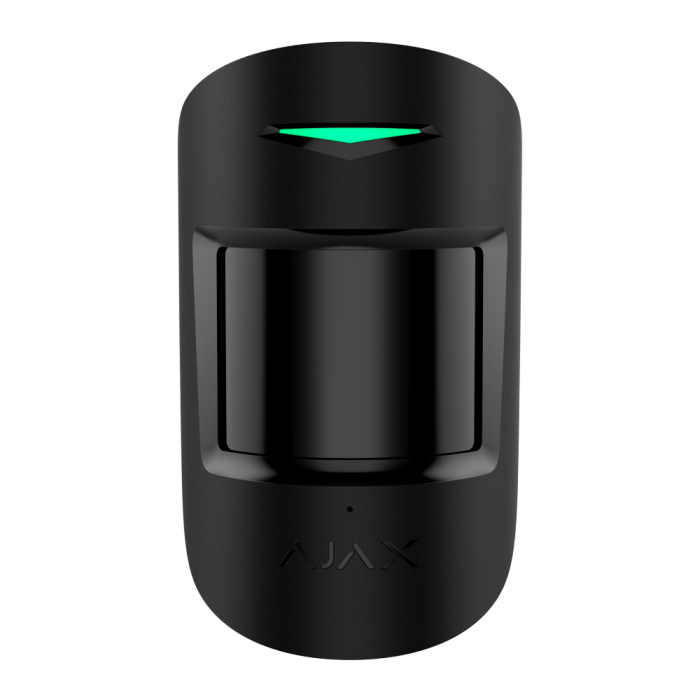

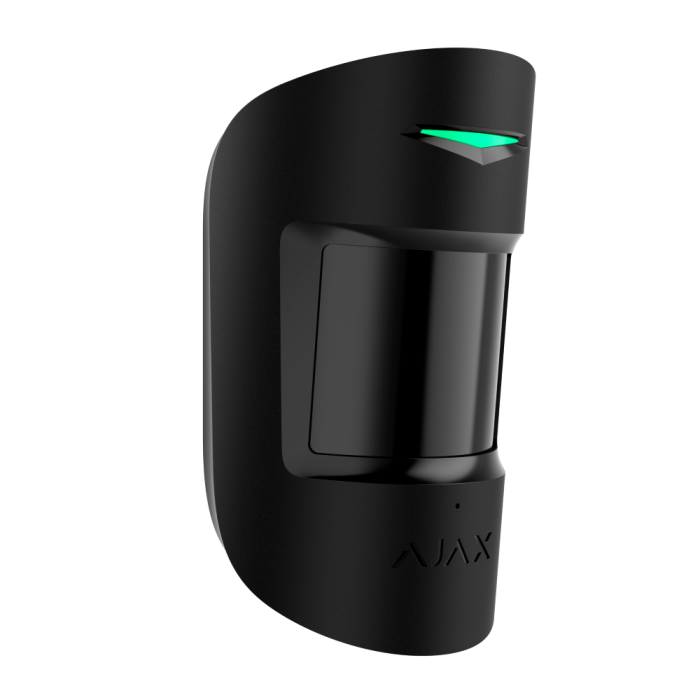

Ajax CombiProtect U Jeweller (8EU) ASP - Black

In stock

Product Code

130354.06.BL1

SKU

130354.06.BL1

Wireless PIR motion and glass break detector with a microphone

DELIVERY

We always aim to same day dispatch on all orders received before 2.30pm.

Firesense also offer the ability to collect your order from our trade counter.

Attributes
Approval	Grade 2 (EN 50131), PD 6662:2017
Category Type	Glass break detectors, Motion detectors
Colour	Black
IP Rating	IP50
System Type	Intruder
Clearance	No

Jeweller communication technology	Proprietary wireless communication technology to transmit commands, alarms, and events. Key features: Two-way communication. Advanced anti-sabotage. Block encryption featuring a dynamic key. Instant notifications. Remote control and configuration in Ajax apps.
Frequency bands	868.0–868.6 MHz
Maximum effective radiated power (ERP)	up to 20 mW Automatic power control to reduce power consumption and radio interference.
Radio signal modulation	GFSK
Radio communication range	up to 1,200 m Between the range extender and a hub in an open space.
Encrypted communication	All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping	To prevent radio interference and jamming.

Sensitive elements	1 × PIR sensor
Motion detection distance	up to 12 m When installed at a height of 2.4 m.
Motion detection angle	horizontal: 88.5°
Motion detection speed	from 0.3 to 2.0 m/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity	3 levels Adjusted by a PRO or a user with admin rights in Ajax apps.
Pet immunity	weight: up to 20 kg height: up to 50 cm
False alarm prevention	SmartDetect Software algorithm.
Temperature compensation	Effective motion detection at temperatures from −10 °C to +40 °C.

Sensitive elements	electret microphone
detection distance	from 0.3 up to 9 m
detection angle	horizontal: 180° vertical: N/A
Sensitivity	3 levels Adjusted by a PRO or a user with admin rights in Ajax apps.
False alarm prevention	DualTone Two-factor glass break verification software algorithm: by low and high frequencies.

Min size of the glass

400 × 400 mm

Detection distance up to 9 m for all glass types when the High sensitivity level is selected.

Type of glass and its thickness:

standard pane — 4 mm

insulated glass — 4 mm

Tamper alarm	Notifications on attempts to detach the detector from the surface or remove it from the mounting panel.
Protection against spoofing	device authentication
Communication loss detection	after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings.
Holding screw	to secure the detector on SmartBracket

Battery	1 × CR123A Pre-installed.
Type	Type C
Calculated battery life	up to 5 years
operating voltage range	2.1−3.3 V⎓
nominal operating voltage	3 V⎓
Quiescent current consumption at nominal voltage	34 µA
Maximum current consumption at nominal voltage	58 µA
Full capacity	1,600 mAh
Low battery voltage	2.5 V⎓
Low battery recovery volatage	2.7 V⎓
End of life battery voltage	2.1 V⎓ Device is switched off.
End of life battery capacity	300 mAh

Dimensions	110 × 65 × 50 mm
Weight	92 g
Dimensions of the small magnet	55 × 11 × 6 mm
Operating temperature range	from -10 °C to +40 °C
Operating humidity	up to 75%
Protection class	IP50

Available colours

Black, White

Contains

CombiProtect U Jeweller

SmartBracket mounting panel with holding screw

CR123A battery (pre-installed)

Installation kit

Quick start guide

Warranty Period

24 months
