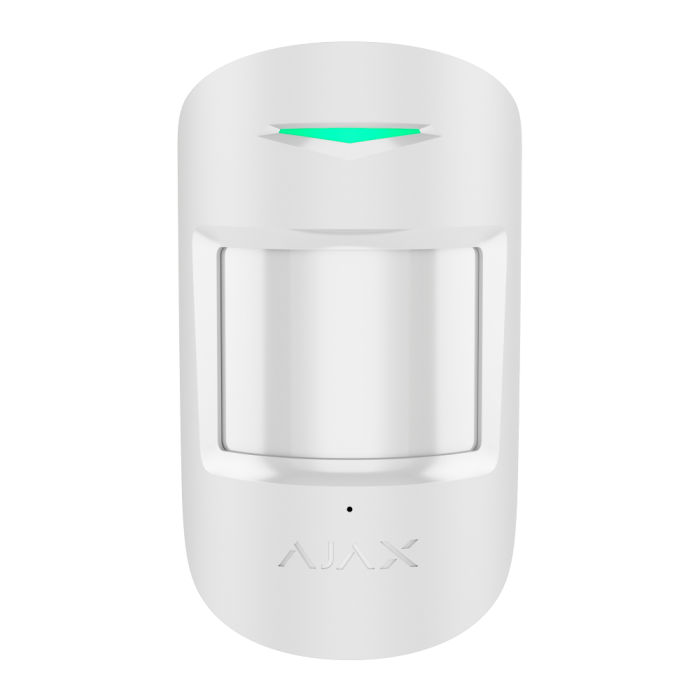

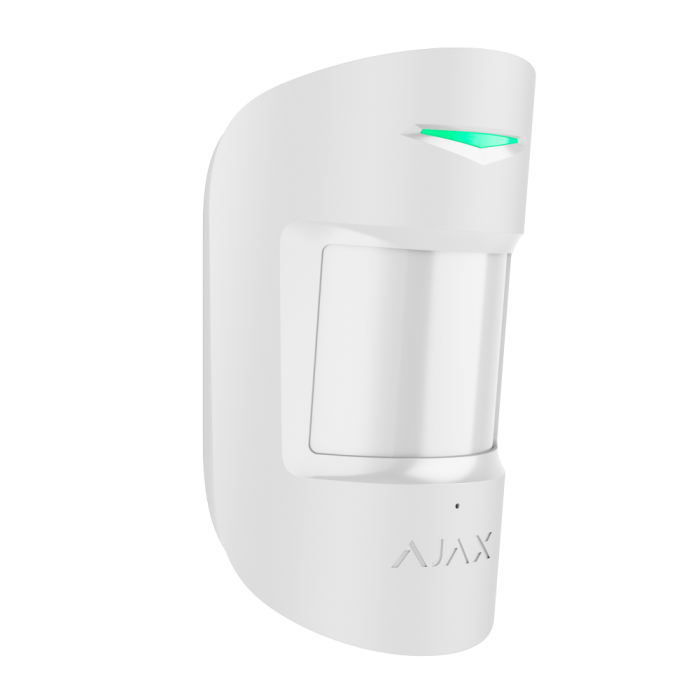

CombiProtect U Jeweller

Wireless PIR motion and glass break detector with a microphone

Single device. Dual protection.

CombiProtect U Jeweller is a versatile device that combines the functionality of two detectors in one enclosure. Thanks to advanced software algorithms, it effectively minimizes false alarms while providing two essential functions: motion and glass break detection. Users can easily configure sensors, adjust sensitivity, and test performance directly in the app. With its simple installation and intuitive interface, CombiProtect U Jeweller offers a seamless experience for security professionals and end users.

Key Features

• Up to 12 m of motion detection range
• Up to 9 m of glass break detection range
• 180° glass break detection angle
• Software algorithm to filter out false alarms
• Digital algorithm to prevent false alarms
• Horizontal motion detection angle - 12m x 16m - 88.5 degrees
• Vertical motion detection angle - 12m x 2.4 m
• Remote control and configuration
• Up to 5 years of operation on the pre-installed battery
• Pet immunity
• Holding screw to secure the detector on a mounting panel
• Up to 1,200  of communication range with an Ajax hub or range extender2
• Jeweller radio communication
• Temperature compensation for effective detection in heat and cold
• Informative push notifications
• Two colors
• Hassle-free installation

Discover future-proof hardware

• Electret microphone
• PIR sensor
• Fresnel lens
• Battery
• Tamper button
• Jeweller antenna
• Smartbracket
• Holding screw to secure the detector on SmartBracket

No intruder goes unnoticed

PIR sensor
The detector is equipped with a PIR sensor from Excelitas Technologies, a leading American manufacturer that has specialized in the design and production of optronic components since 1931. Ajax Systems guarantees the superior quality of these sensors by testing 100% of the devices during the detector manufacturing stage. The commitment to quality combined with Ajax technologies delivers the highest accuracy in intrusion detection.

Fresnel lens
The Fresnel lens sections are specially designed to effectively distinguish between the infrared (IR) signatures of humans, pets, and objects that can cause false alarms (e.g., sunlight, HVAC). Larger lens sections are strategically placed to capture radiation at an adult's head and torso level, while smaller sections are responsible for generating a more detailed thermal image. This way, the lens provides the detector with highly accurate information about heat-emitting objects within the detection zone and their movement patterns. This ensures the reliable identification of real threats by interpreting relevant heat signatures.

Filtering out false alarms
The SmartDetect software algorithm is trained on thousands of thermal patterns obtained from humans, pets, and various environmental factors. When an Ajax system is armed, the motion detector continuously analyzes real-time data from its PIR sensor. The algorithm evaluates key parameters such as the intensity of infrared radiation, the size of thermal spots, and the speed and duration of movement within the detection zone. By quickly identifying and filtering out false alarms, SmartDetect ensures highly accurate detection of human movement.

Temperature compensation
Temperature compensation is a software feature that ensures clear thermal contrast even when the ambient temperature approaches that of the human body. The detector continuously monitors the ambient temperature and adjusts the PIR sensor readings in real time using a pre-programmed coefficient table stored in its memory. This automatic calibration allows the detector to maintain high sensitivity and reliable performance over the entire operating temperature range, ensuring accurate motion detection in any environment.

Sensitivity
The detector adapts to the specific conditions of its installation environment, accounting for potential IR interferences and the presence of pets. By adjusting the sensitivity settings, PRO can modify the set of detection markers the system uses to filter out false alarms. Setting the sensitivity to a lower level reduces the likelihood of the detector responding to active pets1, providing pet-friendly security. Increasing the sensitivity ensures that even the slightest movement within the detection area activates an immediate alarm, delivering maximum security when needed.

Precise installation
When installed correctly at a height of 2.4 m with the lens positioned perpendicularly to the expected intrusion path, the detector provides a highly accurate thermal diagram and reliable pet immunity. This setup allows the device to instantly identify real threats while reducing false alarms caused by pets weighing up to 20 kg and measuring under 50 cm in height. Proper installation ensures optimal performance, balancing precise detection with no false alarms.

Two-stage glass break detection

A highly sensitive electret microphone combined with the DualTone digital algorithm ensures accurate glass break detection. For the alarm to be raised, the system must detect two consecutive sounds within 1.5 seconds: a dull, low-frequency impact followed by the sharp, high-frequency sound of glass shattering. This two-stage detection process greatly minimizes the risk of false alarms caused by similar sounds. The sensitivity can be easily adjusted via an Ajax app, which offers three levels to perfectly tailor the detector to different environments and security requirements.

Stable performance at any temperature

Ajax devices are powered by batteries from trusted manufacturers only. Each battery is tested during production and undergoes additional quality control at Ajax Systems to ensure consistent performance. Even in extreme conditions, the batteries guarantee stable operation, maintaining capacity and reliability in a temperature range from –10 °C to +40 °C.

• Minimal impact of threshold temperatures on battery life
• High quality proven by regular tests
• Up to 5 years of battery life

Unique wireless technology

Jeweller is Ajax’s proprietary radio protocol for secure two-way communication. It provides block encryption and device authentication during each communication session with an Ajax hub or radio signal range extender. Jeweller prevents sabotage, spoofing, and data theft.

• Up to 1,200 m of communication range in an open space
• Data encryption
• Notification of jamming and connection loss
• Automatic power adjustment

System supervision

All Ajax devices continuously perform automatic self-diagnosis and transmit information about their state to the hub in real time. The system constantly monitors critical parameters, such as the states of the tamper button, sensors, communication, and power supply, to ensure flawless operation. Ajax Cloud manages the connection between the hub and Ajax apps, guaranteeing instant notifications for users, CMSs, and security companies. If a malfunction or communication loss is detected, an installer will be immediately informed to provide rapid support and maintain uninterrupted security.

• Automatic device self-diagnosis with a state report
• Regular polling to display the current device state in Ajax apps
• Instant maintenance notifications
• System supervision

Sabotage protection

Tamper alarm
The detector's enclosure has a tamper button that notifies the monitoring company and users once the device is detached from the mounting panel.

Data encryption
All data the system stores and transmits is protected by block encryption featuring a dynamic key. Encryption makes it extremely difficult to reprogram the device and replace or steal the data.

Informative notifications
An Ajax system instantly notifies about alarms and events. Monitoring companies and users know exactly which device triggered, when, and where it happened.

Regular polling
The device regularly exchanges data with the hub. The system controls each device's state and reports if there is a malfunction or connection loss.

Device authentication against spoofing
The hub checks the device's unique parameters for authentication during each communication session. If any parameter fails the check, the hub ignores the device commands.

Communication loss detection
The device regularly exchanges data with the hub. When the polling interval is set to the minimum (3 data packages once in 12 seconds), it takes only 36 seconds to detect communication loss and notify the monitoring company and users of the incident.

Quick installation and easy setup

CombiProtect U Jeweller comes ready to work right out of the box. Thanks to the SmartBracket mounting panel, installation is quick and requires a minimum of tools, as there is no need to disassemble the enclosure. Adding the device to an Ajax system is also easy: simply scan the QR code in the app. All settings can be adjusted remotely, which makes further configuration fast and effortless. Therefore, no on-site visits are needed.
