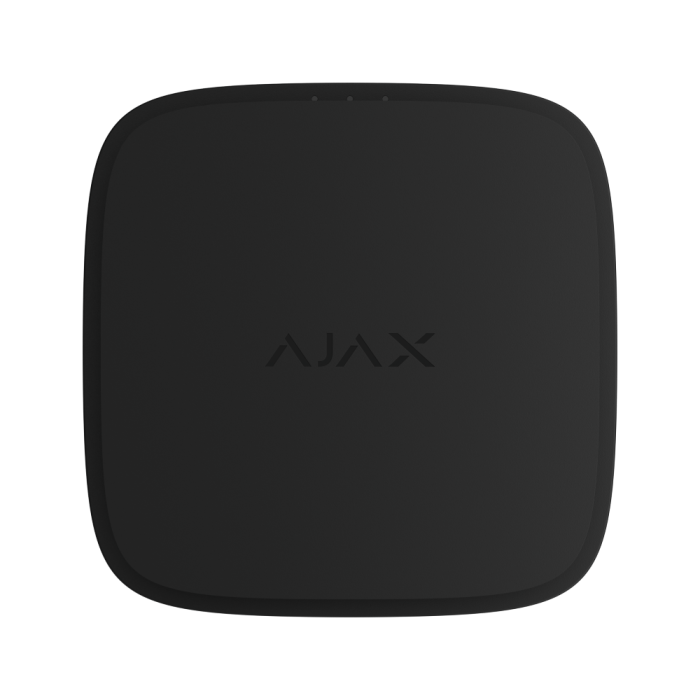

Ajax EN54 FireProtect (Smoke/Sounder) Jeweller - Black

In stock
Product Code
119920.276.BL1
SKU
AJ2602SB

Ajax EN54 FireProtect (Smoke/Sounder) Jeweller - Black

Wireless addressable point smoke detector with sounder


DELIVERY

We always aim to same day dispatch on all orders received before 2.30pm.

Read more about our delivery policy

TRADE COUNTER

Firesense also offer the ability to collect your order from our trade counter.

Read more about our trade counter

EN54 FireProtect (Smoke/Sounder) Jeweller in Black is a wireless fire detection device designed for professional fire alarm installations where both rapid detection and local audible warning are required. Combining smoke detection, temperature monitoring, and an integrated alarm sounder in a single addressable device, it helps simplify system design while maintaining compliance with EN54 standards.

Built around Ajax's advanced fire detection technology, the detector uses a dual-spectrum optical sensor to identify smoke particles while reducing the likelihood of false alarms. Two precision thermistors continuously monitor temperature changes, enabling the device to react to developing fire conditions even when visible smoke is minimal.

The black finish makes this model particularly suitable for modern commercial interiors, hospitality environments, architectural projects, and design-conscious spaces where standard white detectors may be visually intrusive. The discreet appearance allows the device to blend more naturally into darker ceilings and contemporary décor schemes.

As part of the Ajax wireless fire system, the detector communicates using secure Jeweller radio technology, eliminating the need for extensive cabling and enabling faster installation in both new-build and retrofit projects. Long battery life helps minimise maintenance requirements, while remote configuration and diagnostics through Ajax software provide installers with a streamlined commissioning and servicing experience.

Regular system health monitoring, automated notifications, and detailed maintenance reporting help ensure ongoing reliability throughout the life of the installation. Whether used as a standalone fire detection point or as part of a larger Ajax fire safety network, the EN54 FireProtect (Smoke/Sounder) Jeweller Black delivers dependable performance, straightforward deployment, and an aesthetically refined finish.

Offered in both black and white. Find the white version here.

Attributes
Label / Promotion New
Approval EN54-3, EN54-7, EN54-25
Category Type Detector Sounder
Colour Black
Detection Optical
IP Rating IP21C
System Type Wireless
Clearance No
Write Your Own Review
You're reviewing:Ajax EN54 FireProtect (Smoke/Sounder) Jeweller - Black

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

  • Two-way communication.
  • Advanced sabotage protection.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps.
Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the sales region.

Maximum effective radiated power (ERP)

Up to 20 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation GFSK
Radio communication range

Up to 1,700 m

Between the device and control and indicating equipment (CIE) or a range extender in an open space.

Encrypted communication All stored and transmitted data is protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming.



Smoke Detection

Sensitive element

Dual-spectrum optical sensor

Detects smoke based on the size of particles in the air.

False alarm protection The device does not respond to water vapor.
Patented smoke chamber Protects the smoke sensor from dust, dirt, and insects.



Alarm annunciation

Alarm Type Acoustic
Sound Volume

Up to 95 dB at a distance of 1 m

Adjusted by a PRO or user with admin rights in an Ajax app.

Sound Pattern 32 tones
Sound Synchronisation An audible alarm is automatically synchronized on all devices with a sounder connected to the same CIE.
Alarm annunciation test An audible alarm check to ensure the fire alarm is clearly audible on the premises.



Installation recommendations

Where to install

The device is designed for indoor use only.

The SmartBracket mounting panel allows the detector to be rotated up to 90° even after installation.



Sabotage protection

Tamper button

Fault notification when an attempt is made to remove the device from the mounting panel.

Lock for SmartBracket

To secure the device on the SmartBracket mounting panel

When locked, the lock secures the device and prevents it from being removed without a special tool.

Protection against spoofing Device authentication
Connection loss detection

After 36 s

Detection time depends on Jeweller settings.



Power supply

Battery 2 x CR123A. Pre installed
Tool-free battery replacement To replace the batteries, open the lids of the battery compartments.
Reverse polarity protection Prevents device damage if the batteries are put in incorrectly.
Recommended battery type Huiderui CR123A; 3 V; 1,600 mAh, LiMnO₂
Calculated battery life Up to 5 years



Enclosure



Dimensions 124 × 124 × 48 mm
Weight 295g
Operating temperature range from 0 °C to +50 °C
Operating humidity up to 80%
Protection class IP21C
Flammability rating UL 94 V-0



Colour

Available colours Black, white



Complete set

Contains

EN54 FireProtect (Smoke/Sounder) Jeweller

SmartBracket mounting panel

2 × CR123A battery (pre-installed)

Installation kit

Quick start guide



Warranty

Warranty period 24 months
