In stock
Product Code
125718.314.WH
SKU
AJ1000W

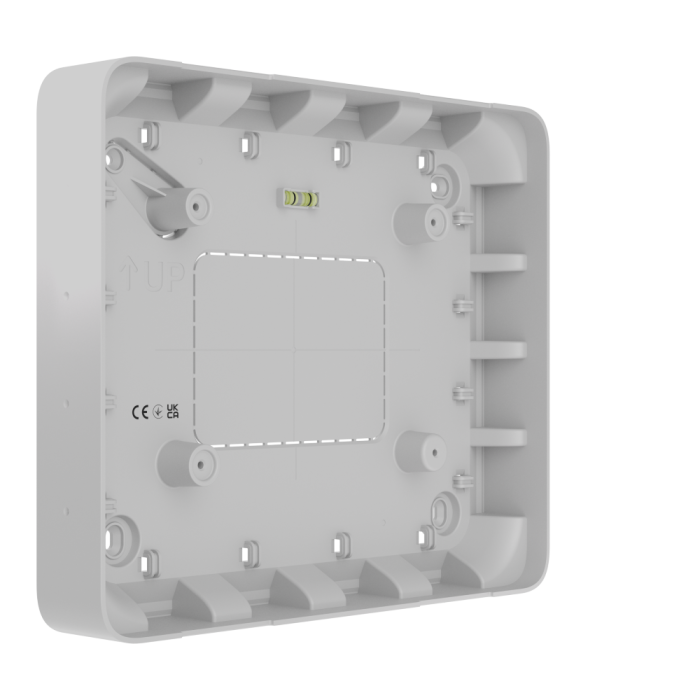

Ajax GlandBox ASP - White
Wiring accessory for control and indicating equipment (CIE)
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
GlandBox
Wiring accessory for central unit
The cleanest way to connect cables
GlandBox is a wiring accessory for neat lateral cable entry into the EN54 Fire Hub Jeweller enclosure. It ensures clean and professional installation when in-wall cable routing isn’t possible — for example, in historical buildings or temporary commercial setups. GlandBox provides secure cable fixation using red glands1 and integrates seamlessly with the CIE design, maintaining the sleek and tidy look.
Key features
- Clean and professional installation
- Effortless cable routing to the CIE
- 16 places to install cable glands four on each side of the accessory
- Support for cable gland diameters of up to 20 mm
- Fasteners to secure cables together using ties
- Perforated part for CIE's tamper button to detect device removal from the surface
- Minimalistic design available in two colours
- IP20-rated enclosure
Hassle-free installation
Installing EN54 Fire Hub Jeweller into GlandBox takes just a couple of minutes. The accessory is ready to use straight out of the box — no adjustments or extra equipment are needed. The design is intuitive and thoughtful so that even on-surface cabling looks neat and is easy to manage.
| Fast installation process | Thought-out design | Neat-looking setup |
| GlandBox features latches for securing the CIE’s mounting panel, allowing easy screw fixation afterward. All necessary fasteners are included in the complete set. | Designed with 16 side recesses, GlandBox enables convenient surface cable routing when in-wall wiring isn’t an option. Each gland is securely fixed and sealed to maintain a clean and protected connection. | GlandBox is built to streamline the surface wiring process. Inside the accessory, built-in fasteners keep cables neatly organized and allow secure fixation with ties. The result is a sleek and professional-looking installation. |
| Category Type | Accessory |
|---|---|
| Colour | White |
| IP Rating | IP20 |
| System Type | Wireless |
| Clearance | No |
Write Your Own Review
Key features
| Places to install cable glands |
16 For routing cables that are not hidden inside the wall. There are four places on each side. |
| Cable gland diameter |
up to 20 mm Cable glands are not included in the complete set. |
| Recesses for drilling |
The drill bit is fixed in the recess and does not move during drilling. We recommend using a hole saw for plastic with a diameter of up to 20 mm. |
| Sabotage protection |
tamper button The perforated part of GlandBox is used for the tamper button to trigger when the CIE is installed in GlandBox. An Ajax system sends fault notifications if an attempt is made to detach GlandBox from the surface or remove the CIE from the mounting panel. |
| Cable fasteners |
To hold the cables together with ties. |
| Aids for easy installation |
Bubble level UP key CIE center marking The bubble level allows for checking the casing inclination angle. The intersection of two lines marks the center of the CIE, and the UP key marks its top. |
Product
| Dimensions |
263 × 223 × 40 mm |
| Weight |
335 g |
| Operating temperature range |
from –10 °C to +40 °C |
| Operating humidity |
up to 75% non-condensing |
| Flammability rating |
UL 94 V-0 |
Complete Set
| Cointains |
GlandBox Installation kit Quick start guide |
