In stock
Product Code
130351.05.WH1
SKU
130351.05.WH1

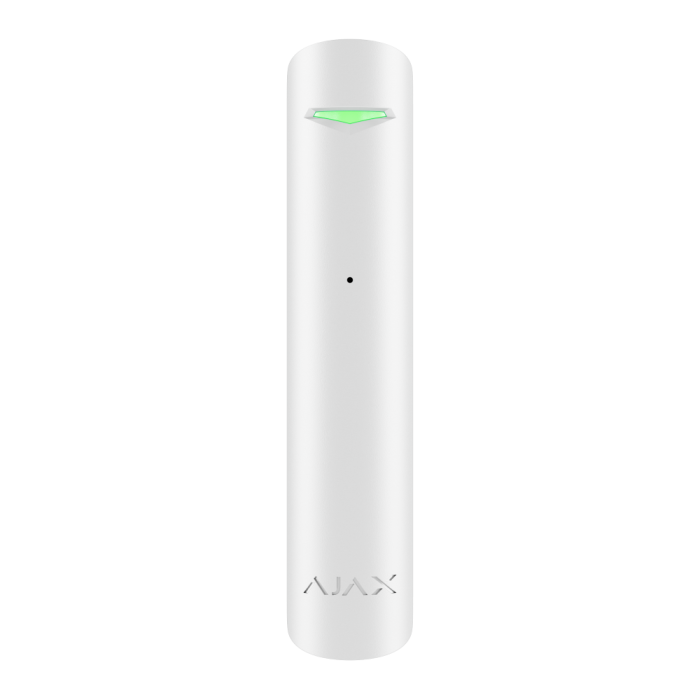

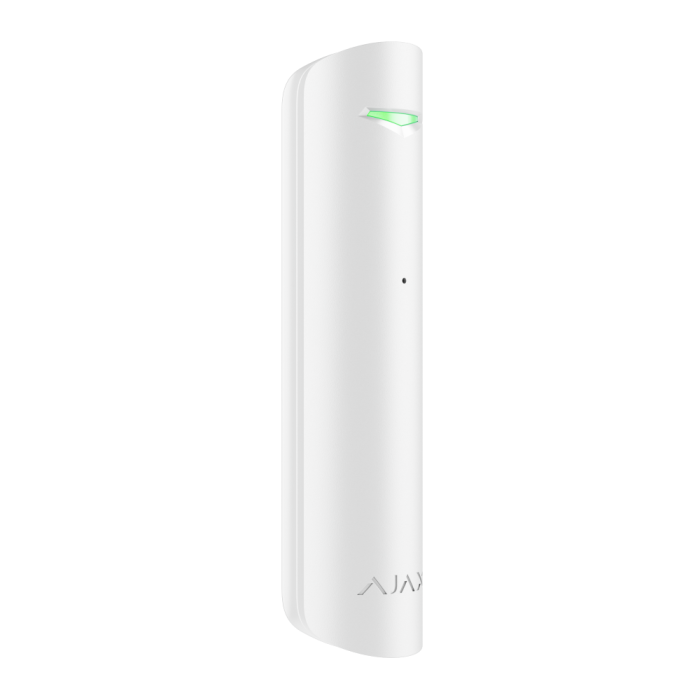

Ajax GlassProtect U Jeweller (8EU) ASP - White
Wireless glass break detector with a microphone
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
UK-focused wireless glass break detector with technology to reduce false alarms. It monitors glazed areas and reports breakage through the Ajax system. It is aimed at clean, quick installations where reliable detection and simple commissioning matter as much as the device itself.
Key features:
- Glass break microphone
- False alarm filtering
- UK market version
- Wireless Jeweller communication
- Jeweller wireless communication
- Tamper protection
- Remote testing and configuration
- Low-maintenance wireless installation
- False alarm reduction features
- Acoustic glass break detection
| Approval | Grade 2 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Glass break detectors |
| Colour | White |
| IP Rating | IP50 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Frequency bands |
868.0–868.6 MHz
|
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range |
up to 1,200 m Between the range extender and a hub in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
Detection
| Sensitive elements |
electret microphone
|
| Glass break detection distance |
from 0.3 up to 9 m
|
| Glass break detection angles |
horizontal: 180° |
| Sensitivity |
3 levels Adjusted by PRO or user with admin rights in the Ajax app. |
| False alarm prevention |
DualTone Two-factor glass break verification software algorithm: by low and high frequencies. |
| Input to connect an additional detector |
Wired detector with the normally closed (NC) contact type. |
Glass break characteristics
| Min size of the glass |
400 × 400 mm Detection distance up to 9 m for all glass types when the High sensitivity level is selected. |
| Type of glass and its thickness: |
|
Sabotage protection
| Tamper alarm |
Notifications on attempts to detach the detector from the surface or remove it from the mounting panel. |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
| Holding screw |
to secure the detector on SmartBracket |
Power supply
| Battery |
1 × CR123A Pre-installed.
|
| Type |
Type C |
| Calculated battery life |
up to 7 years |
| Operating voltage range |
2.1−3.3 V⎓ |
| Nominal operating voltage |
3 V⎓ |
| Quiescent current consumption at nominal voltage |
11 µA |
| Maximum current consumption at nominal voltage |
2.5 mA |
| Full capacity |
1,600 mAh |
| Low battery voltage |
2.4 V⎓ |
| Low battery recovery volatage |
2.7 V⎓ |
| End of life battery voltage |
2 V⎓ Device is switched off. |
| End of life battery capacity | 250 mAh |
Enclosure
| Detector dimensions |
103 × 22 × 21 mm |
| Weight |
40 g |
| Operating temperature range |
from -10 °C to +40 °C |
| Operating humidity |
up to 75% |
| Protection class |
IP50 |
Colour
| Available colours | Black, White |
Complete Set
| Contains |
GlassProtect U Jeweller SmartBracket mounting panel with holding screw CR123A battery (pre-installed) Outside-mounted terminal clamp Installation kit Quick start guide
|
Warranty
| Warranty Period | 24 months |
