Ajax LifeQuality (8EU) ASP - Black
Wireless temperature, humidity, and CO₂ monitor
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.

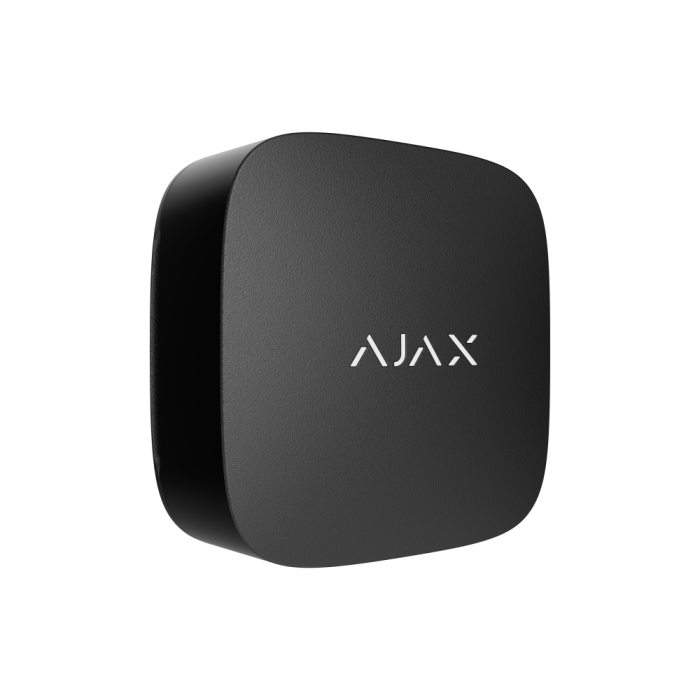

Ajax LifeQuality Jeweller
Wireless temperature, humidity, and CO₂ monitor
Guarding productivity
LifeQuality Jeweller monitors temperature, humidity, and CO2 levels in environments where air quality directly affects comfort and performance. Users get medical-grade measurement accuracy, instant notifications, and detailed in-app insights. If a threshold is exceeded, the device can trigger automation scenarios to activate humidifiers, HVAC systems, or other equipment to restore the comfortable conditions. Readings and configuration are available at any time in the intuitive Ajax app interface.
Key features
- Non-dispersive infrared sensor for precise CO2 measurement
- Key air quality indicators
- CO2
- Temperature
- Humidity
- Automation scenarios to activate climate control equipment
- In-app charts and history
- Up to 3 years of operation on pre-installed batteries
- Backup memory up to 3 days
- LED indication of air quality
- Informative push notifications
- Up to 1,700 m of communication range with an Ajax hub or range extender
- Jeweller and Wings radio communication
- Power adjustment
- Built-in accelerometer to detect device movement
- Remote control and configuration
Explore the differences
| LifeQuality Jeweller | LifeQuality Lite Jeweller | |
| CO₂ sensor | YES | -- |
| Temperature and humidity sensor | YES | YES |
| Battery life | up to 3 years | up to 5 years |
| Operating temperature | 0 °C to +50 °C | -30 °C to +50 °C |
How CO2 concentration affects productivity
- Up to 450 ppm
- Average outdoor CO2 level.
- Up to 1000 ppm
- Acceptable indoor CO2 level. Does not affect2 cognitive performance.
- 1001–1399 ppm
- May cause eye irritation, sore or dry throat, stuffy or runny nose, sneezing, coughing, and reduced concentration.
- 1400–1999 ppm
- May cause headache, dizziness, and fatigue. Adverse health effects may occur with prolonged exposure.
- 2000+ ppm
- May cause wheezing, dry throat, and difficulty concentrating. Increased health risks with prolonged exposure.
- 2500+ ppm
- May significantly reduce decision-making performance.
Medical-grade accuracy inside
LED indicator
Air quality status is visible at any time without opening Ajax apps. A tap on the monitor's logo reveals whether conditions are normal thanks to a green, yellow, red, or purple indication.
Enclosure
Thought-out ventilation openings ensure stable performance in areas with a high risk of condensation. The device is available in black or white.
Temperature and humidity sensor
Powered by the SHT40 digital sensor by Sensirion (Switzerland) with a self-diagnosis mechanism, the device delivers accurate climate monitoring down to ±0.2 °C and ±2% humidity.
CO₂ sensor
Using a Sunrise optical NDIR sensor by Senseair (Sweden), the device measures carbon dioxide directly in the air without relying on mathematical models. With an average power consumption of 45 μA, the sensor is highly energy-efficient and ensures at least 15 years of operation with an accuracy of ±(30 + 3%) ppm.
Batteries
Two pre-installed replaceable CR123A batteries provide up to 3 years of autonomous operation without recharging or connecting the device to the mains.
SmartBracket
The mounting panel simplifies device installation, requiring only a few steps and no enclosure disassembly. A built-in accelerometer detects device detachment or dispositioning.
Always in control with Ajax apps
| Charts | Push Notifications | Remote configuration | Automation scenarios |
| Use a dedicated chart in Ajax apps to track indoor climate and spot deviations at a glance. The chart displays temperature and humidity trends over the selected period: last hour, day, week, month, or year. Measurement history is securely stored and readily available in the apps for up to two years. | Stay informed about any abnormal changes in temperature or humidity without delay. The system sends push notifications as soon as a set threshold is exceeded with precise details, such as time, location, and the triggered device. When set as alarms, the events can also be forwarded to monitoring stations. | Adjust thresholds, LED indication, notification settings, and automation scenarios remotely in Ajax apps. Configuration and maintenance take just a few taps, with no need for on-site visits. | Create and configure an automation scenario in just a few minutes — remotely or on-site. An automated chain of actions works even if the system loses internet connection. |
| Category Type | Air quality detectors |
|---|---|
| Colour | Black |
| IP Rating | IP50 |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features: Two-way communication. Advanced anti-sabotage. Block encryption featuring a dynamic key. Instant notifications. Remote control and configuration in Ajax apps. |
| Frequency bands |
866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz Depends on the sales region. |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation |
GFSK |
| Radio signal range |
up to 1,700 m Between detector and control panel (or range extender) in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
| Wings communication technology |
Proprietary wireless communication technology for backup connection with the hub (or radio signal range extender). It features: Two-way communication. Block encryption with a dynamic key. Re-uploading data packets in case of error during data transfer. |
| Frequency bands |
866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz |
| Radio communication range |
up to 1,700 m Between the detector and a hub/range extender in an open space. |
| Encrypted radio communication |
All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Radio frequency hopping |
To prevent radio interference and jamming. |
Sensitive elements
| Elements |
Temperature and humidity sensor CO2 (carbon dioxide) sensor |
Temperature measurement
| Sensitive element |
Digital temperature and humidity sensor |
| Measurement range |
from 0 °C to +50 °C |
| Measurement accuracy |
±0.2 °C |
| Measurement pitch |
0.1 °C |
Humidity measurement
| Sensitive element | Digital temperature and humidity sensor |
| Measurement range | from 0% to 100% |
| Measurement accuracy | ±1.8% |
| Measurement pitch | 1% |
Carbon diocide (CO2) measurement
| Sensitive element | digital carbon dioxide sensor |
| Measurement range | from 400 to 10,000 ppm |
| Air quality assessment levels |
normal air: up to 1000 ppm moderately polluted air: from 1000 to 1400 ppm polluted air: from 1400 to 2000 ppm critically polluted air: more than 2000 ppm Effects on well-being: from 1000 to 2500 ppm— lethargy; from 2500 to 5000 ppm—possible adverse health effects; 5000 ppm and above—the maximum permissible concentration during an 8-hour working day. |
| Measurement accuracy | ±30 ppm or ±3% |
| Measurement pitch | 1 ppm |
Additional features
| Charts | of temperature, humidity, and carbon dioxide concentration |
| LED indication |
green: Normal air yellow: Slightly polluted air red: Polluted air purple: Сritically polluted air |
| Automatic calibration |
once every 1–14 days |
| Manual calibration |
is run in the Ajax apps. Suitable for unventilated rooms. We recommend calibrating the detector once every 2-3 weeks in such rooms. |
| Scenarios | reactions to changes in temperature, humidity, and carbon dioxide concentration |
| Backup memory |
up to 3 days If the detector loses communication with the hub (or radio signal range extender), it stores all measured values. After the connection is restored, all values are sent to the Ajax app. |
Sabotage protection
| Accelerometer |
Notifies on attempts to tear off the detector from a surface, remove it from the mounting panel, or move the detector if it is placed on a table or shelf. |
| Protection against spoofing |
device authentication |
| Communication loss detection |
within 36 seconds The detection time depends on the Jeweller or Jeweller/Fibra settings. |
Power supply
| Source | 2 × CR123A battery |
| Battery life | Up to 3 years of autonomous operation (2.5 years if LED indication and accelerometer are enabled). |
Enclosure
| Detector dimensions | 77 x 77 x 34.5 mm |
| Weight | 127 g |
| Operating temperature range | from 0 °C to +50 °C |
| Operating humidity | up to 85% |
| Protection class | IP50 |
Colour
| Available colours | Black, White |
Complete Set
| Contains | LifeQuality Jeweller SmartBracket mounting panel 2 × CR123A battery (pre-installed) Installation kit Quick start guide |
