Ajax LifeQuality Lite Jeweller (8EU) ASP - Black
Wireless temperature and humidity monitor
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.

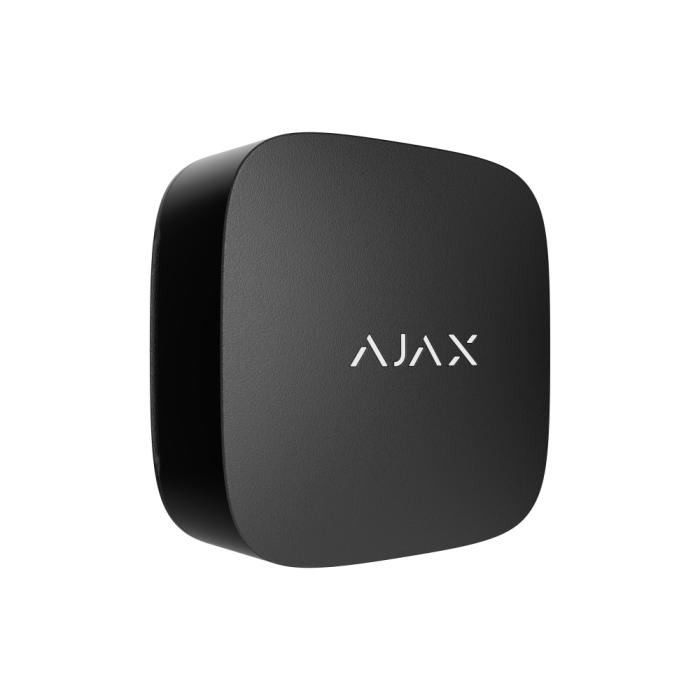

Ajax LifeQuality Lite Jeweller
Wireless temperature and humidity monitor
Essential indoor climate monitoring
LifeQuality Lite Jeweller monitors temperature and humidity at facilities with strict climate requirements. If a threshold is exceeded, the device can trigger automation scenarios to activate humidifiers, HVAC systems, or other equipment to restore the required conditions. The monitor operates on replaceable batteries for years, even in harsh high- or low-temperature environments, requiring minimal maintenance. Readings and configuration are available at any time in the intuitive Ajax app interface.
Key features
- Monitoring of key parameters
- Temperature
- Humidity
- Automation scenarios to activate climate control equipment
- Up to 5 years of operation on pre-installed batteries
- LED indication of climate conditions
- Stable operation in harsh environments –30 °C to +50 °C
- Backup memory up to 3 days
- In-app charts and history
- Built-in accelerometer to detect device movement
- Informative push notifications
- Up to 1,700 m of communication range with an Ajax hub or range extender
- Jeweller and Wings radio communication
- Power adjustment
- Hassle-free installation
- Remote control and configuration
Explore the differences
| LifeQuality Lite Jeweller | LifeQuality Jeweller | |
| CO₂ sensor | -- | YES |
| Temperature and humidity sensor | YES | YES |
| Battery life | up to 5 years | up to 3 years |
| Operating temperature | −30 °C to +50 °C | 0 °C to +50 °C |
Automation in support of compliance
In facilities where climate control is critical, LifeQuality Lite Jeweller not only detects deviations, but also triggers automation scenarios to respond immediately. The monitor can activate humidifiers, heating, ventilation, or other equipment through automation scenarios to restore the required conditions before any damage occurs. The scenarios can be easily created and managed in Ajax apps, and will still be executed if the system goes offline.
Always in control with Ajax apps
| Charts | Push notifications | Remote configuration |
| Use a dedicated chart in Ajax apps to track indoor climate and spot deviations at a glance. The chart displays temperature and humidity trends over the selected period: last hour, day, week, month, or year. Measurement history is securely stored and readily available in the apps for up to two years. | Stay informed about any abnormal changes in temperature or humidity without delay. The system sends push notifications as soon as a set threshold is exceeded, with precise details such as time, location, and the triggered device. When set as alarms, the events can also be forwarded to monitoring stations. | Adjust thresholds, LED indication, notification settings, and automation scenarios remotely in Ajax apps. Configuration and maintenance take just a few taps, with no need for on-site visits. |
Discover future-proof hardware
LED indicator
Climate status is visible at any time without opening Ajax apps. A tap on the monitor's logo reveals whether conditions are normal: green indicates acceptable values, and yellow signals deviations.
Enclosure
Built for demanding environments, the device operates within a range of –30 °C to +50 °C. Its ventilation openings ensure stable performance in areas with a high risk of condensation. The device is available in black or white.
Temperature and humidity sensor
Powered by the SHT40 digital sensor by Sensirion (Switzerland), the device delivers accurate climate monitoring down to ±0.2 °C and ±2% humidity.
Batteries
Two pre-installed replaceable CR123A batteries provide up to 5 years of autonomous operation without recharging or connecting the device to the mains.
SmartBracket
The mounting panel simplifies device installation, requiring only a few steps and no enclosure disassembly. A built-in accelerometer detects device detachment or dispositioning.
Long-lasting autonomy in heat and cold
LifeQuality Lite Jeweller is ready to operate in various environments — from freezers to hot boiler rooms — straight out of the box. The device comes with pre-installed, tested batteries designed for years-long operation. Battery status is always visible in Ajax apps. Months before the batteries are completely discharged, users and monitoring companies receive low battery notifications. This ensures timely maintenance with no service gaps.
- Up to 5 years of autonomous operation
- High-performance batteries from proven manufacturers
- Early low battery notifications
- Easy battery replacement within minutes
Unique wireless technologies
In Ajax systems, communication between wireless devices is powered by proprietary technologies unmatched in the industry. Jeweller ensures reliable alarm and event transmission backed by encryption, frequency hopping, and outstanding energy efficiency. Wings complements it by ensuring data backups reach the hub after connection loss.
- Up to 1,700 m of secure two-way radio communication in open space
- Encrypted two-way radio communication
- Instant alarm and malfunction notifications
Sabotage resistance
Accelerometer for detecting device movement
Accelerometer detects attempts to detach LifeQuality Lite Jeweller from a surface, remove it from the mounting panel, or move it from a table or shelf. Any such attempt is instantly reported to users and the monitoring company.
Frequency hopping against interference and jamming
LifeQuality Lite Jeweller can detect radio interference and jamming. If transmitted data packets are lost, the device automatically switches to a different frequency within the band and reports the issue to the monitoring company and users.
Device authentication against spoofing
During each communication session, the hub authenticates LifeQuality Lite Jeweller by checking its unique parameters. If any parameter fails the check, the hub ignores the device's commands.
Regular polling to control device state
LifeQuality Lite Jeweller regularly exchanges data with the hub. The system monitors the device state and reports any malfunctions. If the connection between the monitor and the hub is lost, the system detects it in just3 36 seconds and notifies the monitoring company and users of the incident.
Data encryption
The system protects all data transmitted between an Ajax hub and LifeQuality Lite Jeweller using dynamic-key block encryption. This protection makes it extremely difficult to reprogram the device and replace or steal data.
Hassle-free installation and setup
LifeQuality Lite Jeweller is ready to operate straight out of the box, with no wiring or enclosure disassembly required. Device connection, configuration, and monitoring are managed via intuitive Ajax apps — on mobile or desktop.
| Installation | Adding to the system | Setup and monitoring |
| Save time by installing the device with the SmartBracket panel — no enclosure disassembly or wiring required. | Connect the device to the hub by scanning the QR code in Ajax apps. | Adjust thresholds, configure automation scenarios, and view real-time readings and historical data via Ajax mobile or desktop apps. Set up notifications for exceeded thresholds as standard events or as alarms sent to a monitoring station. |
| Category Type | Air quality detectors |
|---|---|
| Colour | Black |
| System Type | Comfort and automation |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features: Two-way communication. Advanced anti-sabotage. Block encryption featuring a dynamic key. Instant notifications. Remote control and configuration in Ajax apps. |
| Frequency bands |
866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz Depends on the sales region. |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation |
GFSK |
| Radio signal range |
up to 1,700 m Between detector and control panel (or range extender) in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
| Wings communication technology |
Proprietary wireless communication technology for backup connection with the hub (or radio signal range extender). It features: Two-way communication. Block encryption with a dynamic key. Re-uploading data packets in case of error during data transfer. |
| Frequency bands |
866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz |
| Radio communication range |
up to 1,700 m Between the detector and a hub/range extender in an open space. |
| Encrypted radio communication |
All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Radio frequency hopping |
To prevent radio interference and jamming. |
Temperature measurement
| Sensitive element |
Digital temperature and humidity sensor |
| Measurement range |
from 0 °C to +50 °C |
| Measurement accuracy |
±0.2 °C (from 0 °C to +50 °C) ±0.3 °C (from −10 °C to 0 °C) ±0.4 °C (from −20 °C to −10 °C) ±0.5 °C (from −30 °C to −20 °C) |
| Measurement pitch |
0.1 °C |
Humidity measurement
| Sensitive element | Digital temperature and humidity sensor |
| Measurement range | from 0% to 100% |
| Measurement accuracy | ±1.8% |
| Measurement pitch | 1% |
Additional features
| Charts | of temperature and humidity |
| LED indication |
green: acceptable level yellow: beyond acceptable levels |
| Scenarios | reactions to changes in temperature, humidity, and carbon dioxide concentration |
| Backup memory |
up to 3 days If the detector loses communication with the hub (or radio signal range extender), it stores all measured values. After the connection is restored, all values are sent to the Ajax app. |
Sabotage protection
| Protection against spoofing |
device authentication |
| Accelerometer |
Signals attempts to detach the device from a surface, remove it from the mounting panel, or move from a table or shelf. |
| Communication loss detection |
within 36 seconds The detection time depends on the Jeweller or Jeweller/Fibra settings. |
Power supply
| Source | 2 × CR123A battery |
| Battery life | up to 5 years When operating at room temperature. up to 2.5 years When operating at sub-zero temperatures. |
Enclosure
| Detector dimensions | 77 x 77 x 35 mm |
| Weight | 118 g |
| Operating temperature range | from −30 °C to +50 °C |
| Operating humidity | up to 85% |
Colour
| Available colours | Black, White |
Complete Set
| Contains | LifeQuality Lite Jeweller SmartBracket mounting panel 2 × CR123A battery (pre-installed) Installation kit Quick start guide |
