In stock
Product Code
38167.04.BL1
SKU
38167.04.BL1

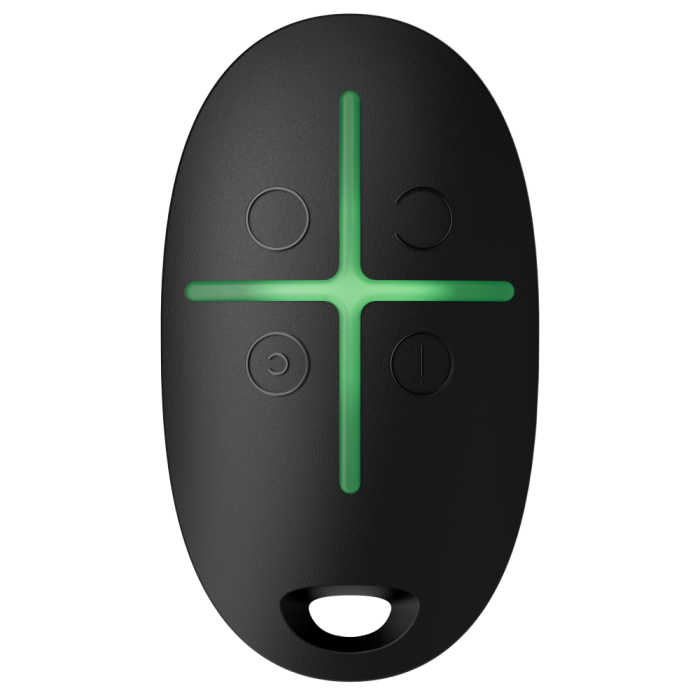

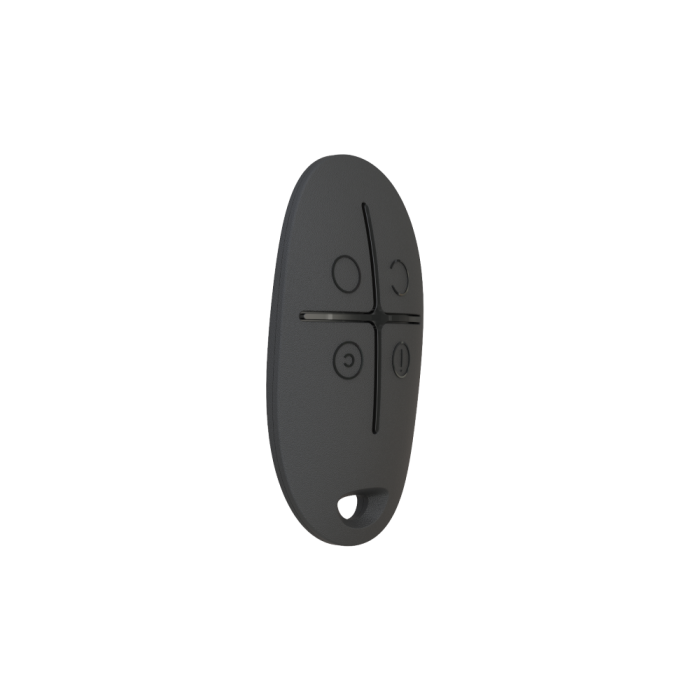

Ajax SpaceControl Jeweller (8EU) ASP - Black
Wireless key fob with a panic button and control for security modes
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
SpcaeControl Jeweller
A key fob for controlling security modes. Features a panic button for sending alarms to your inner circle and a security company in case of trouble.
Principle of operation
The device controls the security modes and sends an alarm signal to the Central Monitoring Station by pressing the key fob panic button.
Features
- Authentication prevents forgery of the device and false alarm signals.
- Jamming detection and communication channels encryption
- Two-way communication
- Calls for help in case of emergency
- Activates full or partial alarm modes
- Indicates command execution with color blink
Connecting and setting up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application.
| Adding to the system | Setup |
| Pairing with the security system via QR code | Configuring and testing in mobile and desktop apps |
| Approval | Grade 2 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Buttons & key fobs |
| Colour | Black |
| IP Rating | IP50 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features: Two-way communication. Advanced sabotage protection. Block encryption featuring a dynamic key. Instant notifications. Remote configuration in the Ajax apps. |
| Frequency bands |
866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depends on the sales region. |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation |
GFSK |
| Radio signal range |
up to 1,300 m Between detector and control panel (or range extender) in an open space. |
| Encrypted communication |
Adjusted by PRO or user with admin rights in the Ajax app. |
| Tilt sensor activation threshold | All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Frequency hopping |
Radio communication uses frequency hopping to prevent interception and jamming. |
Key features
| Number of buttons | 4 System arming button. System disarming button. Night mode button. Panic button. |
| Group management |
A user can select a security group that the key fob manages. |
| Assigning to a user |
When a key fob is assigned to a user, its events are sent to Ajax apps under the user’s name. The key fob has the same security mode management rights as the user. |
| Accidental press protection |
long or double press Available on key fobs with the firmware version 5.54.1.0 or higher manufactured from March 19, 2020. |
Power supply
| Battery | 1 × CR2032 Pre-installed. |
| Type | Type C |
| Calculated battery life | Up to 5 years |
Enclosure
| Dimensions | 65 x 37 x 10 mm |
| Weight | 13 g |
| Operating temperature range | from -10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP50 |
Colour
| Available colours | Black, White |
Complete Set
| Contains | SpaceControl Jeweller CR2032 battery (pre-installed) Quick start guide |
