Ajax Superior DoorProtect G3 Jeweller (8EU) ASP - White
Wireless reed-switch opening detector with shock, tilt, and masking sensors
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.

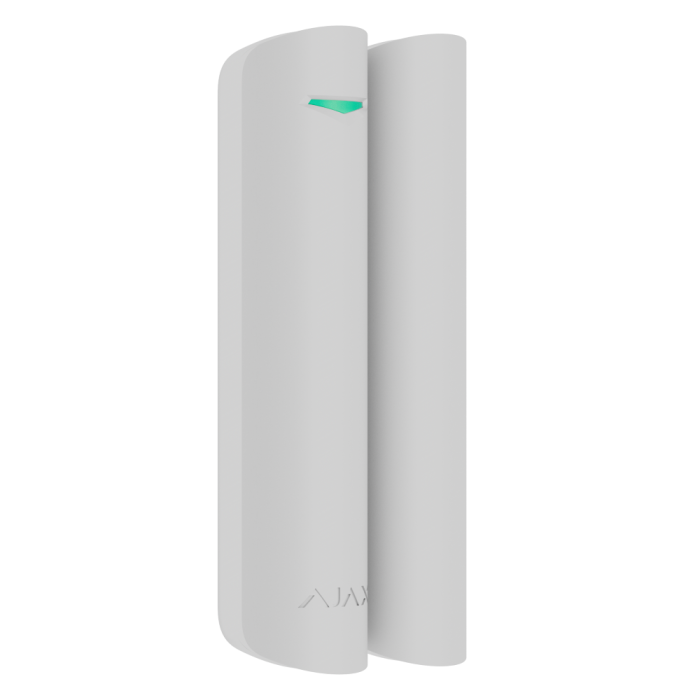

Superior DoorProtect G3 Jeweller
Wireless reed-switch opening detector with shock, tilt, and masking sensors
High-security protection for doors, windows, and beyond
Superior DoorProtect G3 Jeweller is the world's first wireless opening detector certified to Grade 3 requirements. It is designed to protect doors, windows, and skylights. The device has two reed switches as opening sensors and a magnetometer that recognizes magnet spoofing. A built-in accelerometer reacts to vibration, shock, and tilt, so the device protects the facility even when windows are in a tilt mode. The detector filters false alarms effectively and resists sabotage, making it ideal for sites with higher security demands. Professionals can install and configure Superior DoorProtect G3 Jeweller quickly via Ajax apps, ensuring a smooth and efficient workflow.
Built to stand out
- Early threat detection: opening, shock, and tilt
- Sabotage protection that meets Grade 3 requirements
- Wireless operation with up to four years of battery life
- Fast installation and configuration via Ajax apps
Early threat detection
- Two reed switches for opening detection with left/right magnet positioning
- Built-in accelerometer for shock, vibration, and tilt change detection
- Terminals to connect a third-party NC detector
- Plastic reed switches for more durable performance compared to glass alternatives
- Protection against reed switch chattering to prevent false alarms
- Adjustable alarm parameters for shock and tilt sensors to ensure accurate detection
- Shock and tilt sensors
Use the detector as a doorbell
- Sound signals when a door opens
- Signal setup for different security groups
- Customizable signals for separate entrances
Enhanced wireless technologies
Ajax systems use secure two-way communication powered by proprietary radio protocols. Superior Jeweller delivers Grade 3 level reliability with strong encryption, advanced frequency hopping, and outstanding energy efficiency. Wings complements it by ensuring devices always have the latest firmware through regular updates.
- Up to 3,000 m of communication range in open space
- Instant alarm and malfunction notifications
- Two-way radio communication with enhanced encryption
- Over-the-air updates
Long-lasting performance
- Up to four years of autonomous operation
- Enhanced batteries from proven manufacturers
- Minimal impact of threshold temperatures on battery life
- Each battery tested before installation
- Early low battery warnings
- Easy battery replacement in two minutes
- Long-lasting performance
Sabotage resistance
- Holding screw for securing the detector and magnet on SmartBracket
- Frequency hopping for radio interference and jamming protection
- Device authentication against spoofing
- Communication failure detection in 36 s
- Regular polling to control the device and the built-in sensor states
- Automatic device self-diagnosis with status report
- Advanced anti-masking system
- Tamper alarm on dismantling or detachment
Quick installation and easy maintenance
| Installation | Setup | Configuration | Monitoring |
| Installation without enclosure disassembly Ready to operate out of the box Up to four years of operation on pre-installed batterу All necessary fasteners included in the installation kit |
Adding to the hub in minutes via the Ajax app Quick configuration without programming |
Configuration and testing remotely or on-site | Instant notifications about alarms and events Real-time notifications when maintenance is required Notifications in case of detector malfunctions |
| Approval | Grade 3 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Opening detectors |
| Colour | White |
| IP Rating | IP30 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Superior Jeweller communication technology |
Proprietary wireless protocol for transmitting commands, alarms, and events. An upgraded version of the Jeweller radio protocol for Ajax Superior devices, ensuring compliance with Grade 3 (EN 50131). Key features: Two-way communication. Advanced sabotage protection. Enhanced block encryption with a dynamic key. Instant notifications. Remote control and configuration in Ajax apps. |
| Frequency bands |
865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation |
GFSK |
| Radio signal range |
up to 3,000 m Between detector and control panel (or range extender) in an open space. |
| Encrypted communication |
Adjusted by PRO or user with admin rights in the Ajax app. |
| Frequency hopping |
Radio communication uses frequency hopping to prevent interception and jamming. |
| Wings communication technology |
Proprietary wireless communication technology for uploading firmware updates. Key features: Two-way communication. Advanced sabotage protection. Block encryption featuring a dynamic key. Data packet reload in case of transmission errors. Data packets delivery check. |
| Frequency bands |
865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz |
| Radio communication range |
up to 2,000 m Between the device and a hub (or a range extender) in an open space. The maximum range depends on the hub model. |
| Encrypted communication |
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity. |
| Frequency hopping |
To prevent radio interference and jamming. |
Detection
| Sensitive elements |
2 reed switches 1 accelerometer 1 magnetic masking sensor |
| Protection against reed switch chattering |
The detector ignores vibrations lasting up to 0.15 s. |
| Input to connect an additional detector |
Wired detector with the normally closed (NC) contact type and additional Roller shutter mode. |
| Shock sensor sensitivity |
3 levels Adjusted by a PRO or a user with admin rights in Ajax apps. The detection radius depends on the material type: Framed glass window — 1.2 m (high sensitivity level), 1 m (low sensitivity level). Wooden plate — 1.2 m (high sensitivity level), 1 m (low sensitivity level). Concrete plate — 0.75 m (high sensitivity level), 0.5 m (low sensitivity level). The smoother and cleaner the detection surface is, the better the detection radius is. |
| Option to ignore single impact |
Adjusted by a PRO or a user with admin rights in Ajax apps. |
| Tilt sensor activation threshold |
from 5° to 25° Adjusted by a PRO or a user with admin rights in Ajax apps. |
| Chime |
When the system is disarmed, the siren emits a special sound to notify that the opening detectors are triggered. |
Sabotage protection
| Tamper alarm |
Notifications of attempts to detach the detector from the surface or remove it from the mounting panel. |
| Magnetic masking sensor |
The device detects an attempt to mask the main magnet of Superior DoorProtect G3 Jeweller with a fraudulent magnet. |
| Holding screw |
secures the device on SmartBracket |
| Protection against spoofing |
device authentication |
| Communication loss detection |
within 36 seconds Detection time depends on the Jeweller or Jeweller/Fibra settings. |
Power supply
| Battery |
1 × CR123A Pre-installed. |
| Type | type C |
| Calculated battery life |
up to 4 years |
Enclosure
| Detector dimensions | 103 x 22 x 21 mm |
| Magnet dimensions | 103 x 22 x 21 mm |
| Weight | 39 g |
| Operating temperature range | from -10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP30, IK04 |
Colour
| Available colours | Black, White |
Complete Set
| Contains | Superior DoorProtect G3 Jeweller SmartBracket mounting panel CR123A battery (pre-installed) Magnet Connector for a third-party detector Installation kit Quick start guide |
