In stock
Product Code
133210.83.WH1
SKU
133210.83.WH1

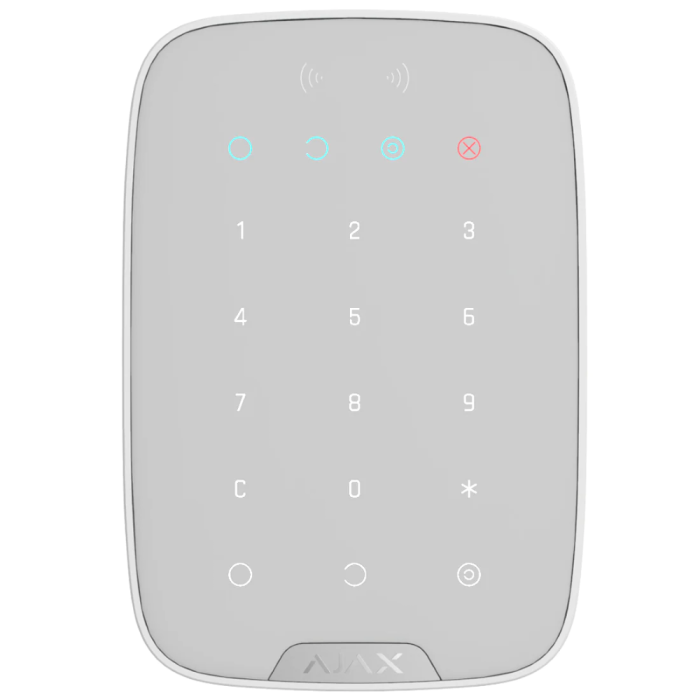

Ajax Superior KeyPad Plus Jeweller (8EU) ASP - White
Wireless keypad with touch buttons supporting authentication via Pass, Tag, and codes
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Superior KeyPad Plus Jeweller
Wireless keypad with touch buttons supporting authentication via Pass, Tag, and codes
Expanded features, reliability, and compliance for PROs
Superior is a game changer among wireless devices with improved certification compliance. Ajax Superior devices are stuffed with cutting-edge hardware, providing exceptional features and effortless installation. All UK-based installers and companies with PRO accounts have full access to Ajax Superior product line.The Ajax Superior difference
| KeyPad Plus Jeweller | Superior KeyPad Plus Jeweller |
| Compliance with international security standards | Compliance with both international and local security standards |
| Common battery | Enhanced battery for stable operation in any temperature |
Contactless control without reliability compromises
Superior MotionProtect Plus Jeweller is a wireless motion detector with an additional microwave sensor. It ensures precise detection of moving objects with temperatures similar to the human body. Upon detecting motion, the device conducts an RF scan of the room using its built-in K-band microwave sensor. This way, the detector eliminates false alarms triggered by thermal interferences, such as operating air conditioners or fireplaces.
Two authentication methods
KeyPad S Plus supports contactless access devices, such as Pass cards or Tag key fobs, as well as codes for user authentication. Access-related information is available in Ajax apps. All events, including user activity and authentication details, can be viewed in the app feed. The apps also allow admins to grant, revoke, restrict, or terminate access permissions to particular users in real time.
Pass card and Tag key fob:
When someone uses the Pass card or the Tag key fob, it is recorded in the event feed of the Ajax app. The admin can revoke, restrict, or temporarily suspend the access rights at any time. Admins can also change users’ rights by expanding or restricting their access to particular groups.
Code:
KeyPad S Plus supports code types as follows:
keypad code (one per keypad)
personal code (individual codes for up to 200 users)
codes for unregistered users (up to 99 codes)
duress codes (one keypad code and up to 200 personal codes)
Contactless access devices
The Pass card and the Tag key fob are equipped with original DESFire® chips and feature the same functionality but different enclosures. Users can choose the form that is convenient for them. One Tag or Pass can control 13 security systems. Access devices are sold separately in batches of 3/10/100 pieces.
Discover future-proof hardware
Touch sensitive panel
Security mode and malfunction indicators
DESFire Pass/Tag reader
Pre-installed enhanced batteries
Tamper
Jeweller antennas
SmartBracket mounting panel
Pre-made fixing points
Point for fixing the keypad with a holding screw
Top-tier data protection
To identify users quickly and securely, Superior KeyPad Plus Jeweller features the DESFire® technology. It is the best-in-class contactless solution to identify a user by card or key fob.
DESFire® is based on the ISO 14443 international standard and combines comprehensive 128-bit encryption and copy protection. This technology is also used in transportation systems of European capitals and access systems at NASA.
Access codes for unregistered users
With a simple assignment of a personal access code in the hub settings, office employees, cleaning company staff, or other individuals enter the area with convenience at its finest.
Complete protection in case of emergency
KeyPad S Plus has a panic button that triggers an alarm. The panic button can be set up to notify users about the alarm, activate sirens, or run an automation scenario. If the user is forced to disarm the system, they can use a duress code. After the code is entered, the keypad simulates regular disarming and sends an alarm to the security company. KeyPad S Plus has one duress code for the device and supports individual codes for up to 200 users3, including unregistered ones.
Smart security management console
KeyPad S Plus is also a simple way to use automation scenarios. Just change the security mode via keypad or press a panic button on the device. The Ajax system automatically turns off the lights, water supply, and appliances. Also, the system closes roller shutters when the user leaves the premises and arms the system.
Outstanding autonomy in heat and cold
A well-thought-out combination of software and hardware ensures that Superior KeyPad Plus Jeweller gets the most out of the enhanced pre-installed AA (FR6) batteries. After they are tested in real time at the production stage, Ajax Systems inspects every unit to ensure the accuracy of battery characteristics.
The batteries provide up to 3.5 years of autonomous keypad operation. With the card and key fob reader disabled, the battery lifespan reaches 4.5 years. Threshold temperatures do not impact this lifespan much, as the batteries offer stable performance within a range from –10 °С to +40 °С. Users and security companies can always check the battery status via Ajax apps and anticipate maintenance thanks to early low-battery warnings.
Unique wireless technology
An Ajax system uses two-way secure radio communication based on the Jeweller proprietary protocol. It provides block cipher encryption and device authentication at each communication session with the hub to prevent sabotage, spoofing, or data theft.
System supervision
All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, including tamper, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.
Effortless installation and setup
It is easy to pair KeyPad S Plus with a hub: all you need is to scan the QR code. No enclosure disassembly or battery installation required. PRO Desktop is available for professional monitoring.
| Approval | Grade 2 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Keypad |
| Colour | White |
| IP Rating | IP30 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features: Two-way communication. Advanced sabotage protection. Block encryption featuring a dynamic key. Instant notifications. Remote configuration in the Ajax apps. |
| Frequency bands |
868.0–868.6 MHz |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation |
GFSK |
| Radio signal range |
up to 1,700 m Between detector and control panel (or range extender) in an open space. |
| Encrypted communication |
Adjusted by PRO or user with admin rights in the Ajax app. |
| Tilt sensor activation threshold | All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Frequency hopping |
Radio communication uses frequency hopping to prevent interception and jamming. |
Key features
| Sensor type |
capacitive |
| Malfunctions and security mode indication |
When Superior KeyPad Plus Jeweller is active, it notifies with an LED indication of the security mode, problems with detectors, or communication loss with the hub. |
| Functional button |
Operates in one of the modes. alarm: The system sends an alarm to the central monitoring station and users. It also activates the sirens connected to the system. mute fire alarm: Mutes interconnected fire detectors alarms. off: The button is disabled. |
| Contactless control |
Pass cards Tag key fobs The functionality of the cards/key fobs is the same, but they differ in design. |
| Access codes |
up to 200 personal codes One code per each user. The number of personal access codes depends on the hub model. 1 keypad code One code per Superior KeyPad Plus Jeweller. |
| Duress codes |
up to 200 personal codes One code per each user. The number of personal duress codes depends on the hub model. 1 keypad code One code per Superior KeyPad Plus Jeweller. |
| Codes for unregistered people |
up to 99 personal codes For people who are not registered in the system. The number of such codes depends on the hub model. |
| Group security management |
Enter the general keypad code and the group ID to manage group security. |
| ACE Type |
type B |
Sabotage protection
| Protection against code guessing |
Superior KeyPad Plus Jeweller locks for 3–180 minutes if an incorrect code is entered more than 3 times in a row within 1 minute. The lock time is adjusted by PRO or user with admin rights in the Ajax app. |
| Tamper alarm | Notifications on attempts to detach the keypad from the surface or remove it from the mounting panel. |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
Power supply
| Battery | 4 × AA Pre-installed. |
| Type | Type C |
| Calculated battery life | Up to 3 years |
| Detector’s operating voltage range | 2.1-3.3 V= |
| Detector’s nominal operating voltage | 3 V |
| Quiescent detector’s current consumption at nominal voltage | 0.013 mA |
| Maximum detector’s current consumption at nominal voltage | 10.5 mA |
| Full capacity | 6,000 mAh |
| Low battery voltage | 2.5 V= |
| Low battery recovery volatage | 2.7 V= |
| End of life battery voltage | 2.25 V= |
| End of life battery capacity | 500 mAh |
Enclosure
| Detector dimensions | 165 x 113 x 20 mm |
| Weight of the black device | 270 g |
| Weight of the white device | 252 g |
| Operating temperature range | from -10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP30, IK04 |
Colour
| Available colours | Black, White |
Complete Set
| Contains | Superior KeyPad Plus Jeweller SmartBracket mounting panel 4 AA batteries (pre-installed) Installation kit Quick start guide |
Warranty
| Warranty Period | 24 months |
