Ajax Superior StreetSiren DoubleDeck Fibra

Wired siren with a clip lock for a branded faceplate

Additional promotion of security services

Superior StreetSiren DoubleDeck Fibra is a wired siren and a part of the Ajax ecosystem. It is equipped with an LED frame and a piezoelectric alarm indicator capable of producing sound of up to 113 dB in volume. The siren alerts users to multiple types of alarms, signals delays when entering/leaving, displays the current security mode, and notifies of doors being opened. Superior StreetSiren DoubleDeck Fibra communicates with an Ajax hub using the secure wired Fibra protocol. All alarms and event notifications are instantly sent to Ajax apps, which also allow for remote device management.

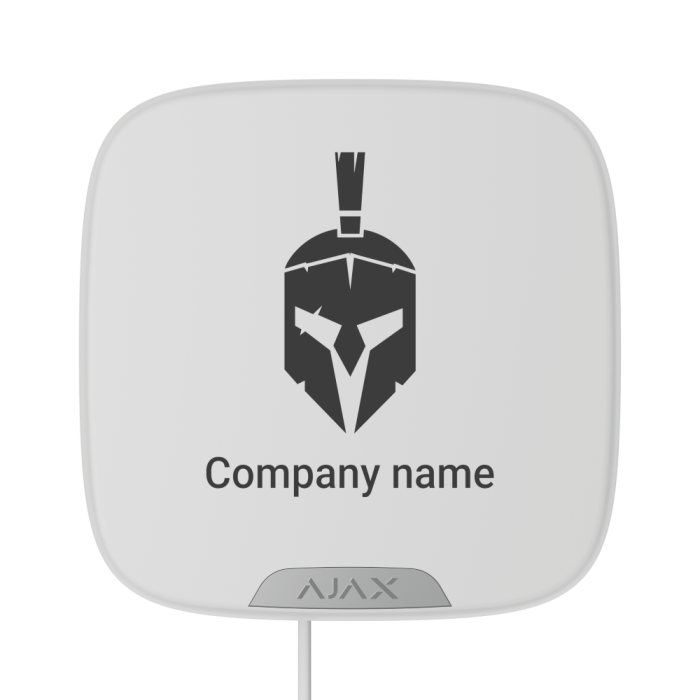

A standout feature of Superior StreetSiren DoubleDeck Fibra is the Brandplate faceplate that gives security service providers the option to print their logo and contact information directly on the siren’s front panel. This transforms the siren into an additional marketing channel, helping providers reach new customers, such as passersby and neighbors.

Key Features

• Advertising for a monitoring, installation or service company
• Adjustable sound volume
• Adjustable alarm duration
• Bright LED frame
• Chime feature
• After-alarm indication
• Up to 2,000m of wired communication
• Fibra wired communication
• Informative push notifications
• Remote control and configuration
• power consumption up to 0.37W
• Pairing with a hub via automatic line scanning or QR code

Future-proof hardware

• Protected enclosure
• LED frame
• Piezoelectric buzzer volume of up to 113 dB
• Tamper button
• SmartBracket mounting panel with removable terminals
• Built-in level
• Built-in rechargeable backup battery to notify of alarms and events
• Perforated section for Fibra line cable output
• Fixing points to mount the siren
• Fasteners to fix the cables with ties
• Place to fasten the siren with a screw

One device, five missions

Informs of any alert
An installer can configure which detectors or security groups the siren responds to. The volume is loud enough to deter intruders and can be changed remotely via the app. The sound can also be muted, leaving only the LED alarm indication. It is bright enough to draw attention from people nearby.

Indicates delays
Superior StreetSiren DoubleDeck Fibra can be set to indicate a delay when entering or leaving. If the feature is on, the built-in LED frame and sound remind a user that the site needs to be disarmed.

Displays the security mode
The siren’s LED frame can turn on to show that the site is armed or that the system’s security mode has changed or can always be on to avoid unwanted tracking. This is convenient for those who control the security system using a keypad or key fob. Also, the sound indication can be used to notify when the security mode is changed.

Notifies of doors being opened
Superior StreetSiren DoubleDeck Fibra can make a special sound to indicate that the opening detectors are triggered when the site is disarmed. It is a Chimes feature, and it is perfect for stores. Employees will be immediately notified that new visitors have entered.

Provides after-alarm indication
When activated, the LED frame indicates confirmed and unconfirmed alarms and tamper alarms until the site is disarmed.

Reliable performance

Unique wired technology

Fibra is proprietary Ajax technology for secure two-way communication between devices and a hub or module that extends the Fibra line. Fibra features encryption and device authentication to prevent sabotage, spoofing, and data theft. The Fibra line supports all types of devices, including sirens, keypads, and detectors with photo verification.

Energy efficiency as a priority

Fibra communication is based on the TDMA principle, according to which each device has a short time frame for exchanging data with the hub. The device’s communication module remains inactive the rest of the time. This significantly reduces power consumption and helps minimize interference even when multiple devices communicate simultaneously.

• TDMA principle
• Power consumption of up to 0.37 W

System supervision

All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, such as tamper, communication, and power supply statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for monitoring companies and users. In case of any malfunction or connection failure, an installation engineer is informed immediately to provide necessary services.

Complex anti-sabotage system

Tamper alarm
The tamper button is triggered when the siren is detached from the surface or dismantled. With the appropriate settings, other sirens in the system can also respond to the tamper alarm.

Short-circuit protection
The system instantly detects a short circuit on the line and notifies both the security company and users. Once the issue is resolved, there is no need to replace fuses, as the system restores operation automatically.

Data encryption
All data the system stores and transmits is protected by block encryption featuring a dynamic key. This robust approach ensures that data cannot be replaced, stolen, or used to reprogram the device.

Device authentication against spoofing
The hub checks the siren’s unique parameters for authentication during each communication session. If any parameter fails the check, the hub ignores device commands.

Regular polling
The device regularly exchanges data with the hub. The system controls each device state and reports if there is a malfunction or connection loss. It takes only 36 seconds6 to detect connection loss and notify the monitoring company and users of the incident.

Data-rich notifications
An Ajax system instantly delivers informative notifications of alarms and events. Monitoring companies and users receive precise details about the incident, including the triggered device, along with the time and location.

Protected enclosure
The siren enclosure is designed to withstand vandalism and environmental factors. A dense enclosure featuring special sealing bands and sealant provides weather resistance and is certified with an IP54 rating. Durable plastic and metal grating ensure additional security. Secure mounting prevents the siren from being detached from the wall.

PRO is king

The myth about wired systems being difficult to install is busted. Ajax minimized an expensive, long, and dusty experience for PROs by developing an ultimate set of tools to make the process easy and flexible, from project design to client support and system maintenance. There is no need to disassemble the device for installation. Intuitive Ajax apps help quickly make the siren a part of the system, and each device can be reconfigured remotely at any moment. No programming required — everything is available out of the box.
