In stock
Product Code
CFP704-2
SKU
CT8104

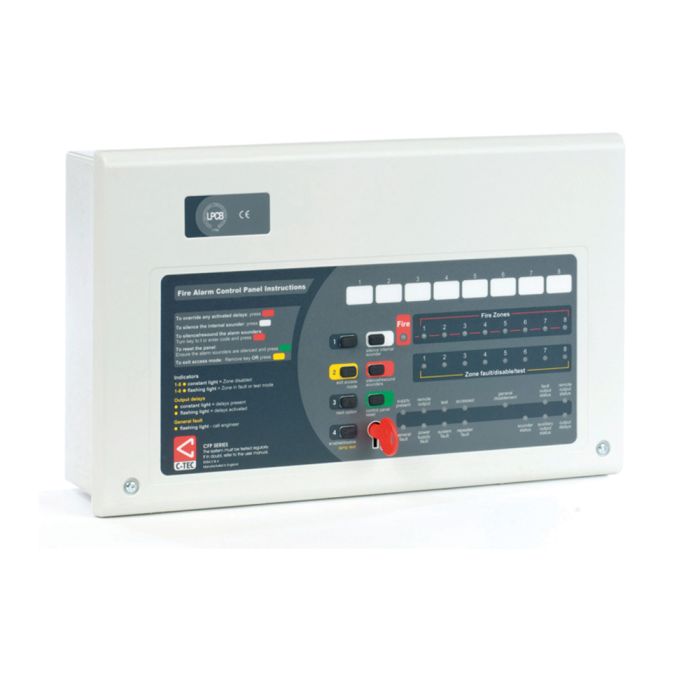

C-TEC 4 Zone CFP Alarmsense Panel Surface/Semi Flush
4 Zone CFP Alarmsense Panel Surface/Semi Flush
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
LPCB certified to EN54-2/4, C-TEC's CFP two-wire 4 zone AlarmSense fire panel is designed to work with Apollo's AlarmSense range of detectors, call points, sounders and visual indicators.
Most conventional fire systems work with two pairs of wires per zone: one pair for detection devices; the other for alarm devices. By using different voltage bands for quiescent and alarm states, AlarmSense components can be connected to the same pair of supply wires. This reliable technology takes all of the complexity out of fire system design, leading to quicker, more flexible installation and around a 20-25% reduction of labour over a standard four wire system.
The CFP704-2 includes four AlarmSense zones, four conventional sounder circuits, class change & alert inputs and on-board fire & fault relays. A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone facilities.
LPCB certified to EN54-2/4, C-TEC’s CFP two-wire 4 zone AlarmSense fire panel is designed to work with Apollo’s AlarmSense range of detectors, call points, sounders and visual indicators.
Most conventional fire systems work with two pairs of wires per zone: one pair for detection devices; the other for alarm devices. By using different voltage bands for quiescent and alarm states, AlarmSense components can be connected to the same pair of supply wires. This reliable technology takes all of the complexity out of fire system design, leading to quicker, more flexible installation and around a 20-25% reduction of labour over a standard four wire system.
The CFP704-2 includes four AlarmSense zones, four conventional sounder circuits, class change & alert inputs and on-board fire & fault relays. A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone facilities.
Optional repeaters and relay expansion boards also available.
| Category Type | Panel |
|---|---|
| Colour | Grey |
| System Type | Two Wire |
| Clearance | No |
Write Your Own Review
| Approvals/certifications | Certified to EN54-2 & 4 by the LPCB |
| Mains Supply | 230V 50/60Hz |
| Mains rated current | 350mA maximum |
| Internal power supply | 19V-28.5V (27V nominal) Ripple 7V maximum (battery fault) |
| Total output current limited to | 1.5A @ 230Vac (lmaxA eq 146mA) |
| Quiescent current | 25mA (mains failed, internal sounder active, PSU & gen fault LED lit.) |
| Max battery size and type | 2 x 12V 3.2Ah VRLA connected in series. Min battery size 1.2Ah |
| No. of detector zone circuits | The CFP704-2 has 4 AlarmSense zone circuits which are compatible with Apollo's AlarmSense range of detectors & call points AND sounders & visual indicators. (Max. length per circuit is 500m) |
| Call point resistor value | Only use AlarmSense Call points |
| Max devices per detector zone | 25 AlarmSense detectors/manual call points per AlarmSense zone. For AlarmSense sounder limitations per AlarmSense zone see 'Max. sounder output current' section |
| No. of conventional sounder circuits | 4 - these are additional conventional (non-AlarmSense) sounder circuits. Max length per circuit is 500m |
| EOL resistor value | 6800Ω 5% Tol. 0/25W (blue, grey, red, gold) |
| Alarm voltage | 27V max, 20V min (final battery voltage) |
| Auxiliary relays | Two: (1) Aux. Fire; (2) Fault. Volt free single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc. |
| Open collector outputs | Two: (1) Reset (Active during reset cycle); (2) Remote (Active during any unsilenced fire condition provided all relevant delays have expired). Max. sink current 30mA, Max. open circuit volt |
| Other outputs | 24V Aux. Power (Protected by a resettable fuse. 100mA min. hold current. Resets when fault removed). |
| Auxiliary inputs | Two: (1) ‘Class Change’ (constant sounders); (2) Alert (pulsed sounders). Connect to 0V to trigger, Max. input voltage 27V (non-latching) |
| Engineer (AL3) functions | Program coincidence (double knock); Invoke One Man Walk Test; Program delays; Set up zones for non-latching operation; Program sounders to resound (or not resound) |
| Expansion connections | Yes – for optional network driver cards (one required per repeater system), relay output cards and EN54-13 sounder circuit interface boards |
| Product Dimensions (mm) | 380 W x 235 H x D 96mm (hole required for flush mounting = 367 W x 220 H x 75 D mm. No bezel required) |
| Construction & finish | Plastic lid and base; RAL7035 textured |
| IP rating | IP30 |
| Weight | 1.75kg (without batteries) |
