In stock
Product Code
302-014
SKU
CR19012

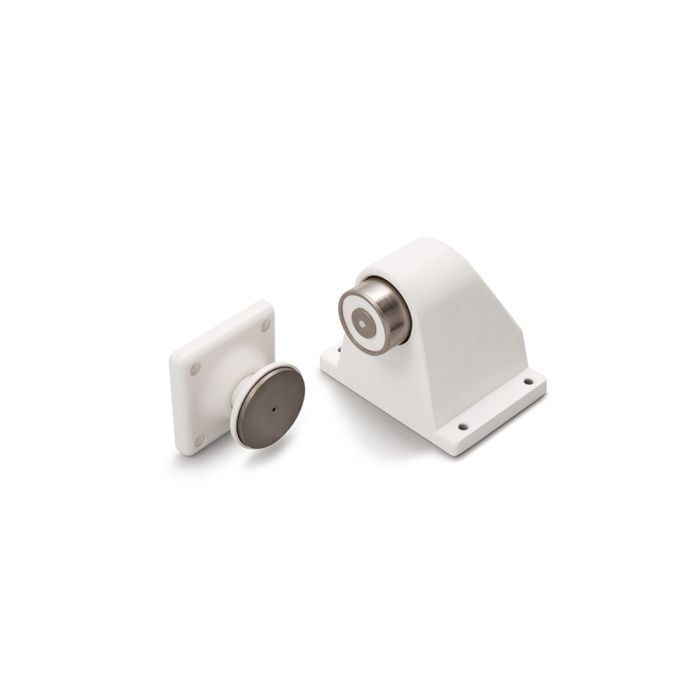

Cranford Controls Floor Mounted Door Retainer 24V, 200N
Floor Mounted Door Retainer 24V, 200N
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Electromagnetic fire door retainers allow fire doors to be legally held open.
The DRX range is ideal for applications where maximum protection is needed against vandalism or accidental damage. Floor mounting also allows install when the fire door is not near a wall.
When connected into a fire alarm system, power to the electromagnet is removed when the alarm is active; closing the fire door via it’s standard mechanism.
Features
- Rugged cast aluminium housing built to resist damage
- Manual release button allows door to be closed without operating fire alarm
- Third party certified to EN1155 as a hold-open device
- Knockouts included for surface or rear cable entry
Electromagnetic fire door retainers allow fire doors to be legally held open.
The DRX range is ideal for applications where maximum protection is needed against vandalism or accidental damage. Floor mounting also allows install when the fire door is not near a wall.
When connected into a fire alarm system, power to the electromagnet is removed when the alarm is active; closing the fire door via it’s standard mechanism.
Features
- Rugged cast aluminium housing built to resist damage
- Manual release button allows door to be closed without operating fire alarm
- Third party certified to EN1155 as a hold-open device
- Knockouts inclded for surface or rear cable entry
| Approval | EN1155 |
|---|---|
| Category Type | Magnet |
| IP Rating | IP51 |
| Clearance | No |
Write Your Own Review
| Part No. | 302-014 |
| Holding Force (N) | 200 |
| Voltage | 24VDC |
| Current (mA) | 45 |
| Mounting | Floor Only |
| Ingress Protection | IP51 |
| Temp Range (°C) | 0 to +40 |
| Colour (Body) | White |
| Material | Metal |
| Weight (kg) | 0.70 |
