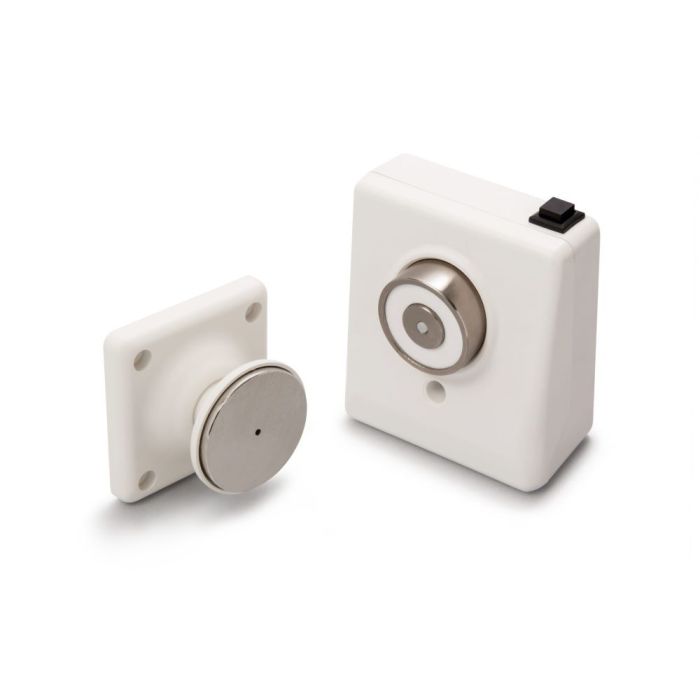

Cranford Controls Wall Mounted Door Retainer 24V, 200N
Wall Mounted Door Retainer 24V, 200N
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
The DRW door retainer is available in two housings, a flame retardant low profile ABS plastic body, specially designed for Cranford and a single gang metal bodied version. Each unit features a spring loaded release pin mounted centrally within the electromagnet ensuring that on power off, the fire door is pushed safely and effectively away from the keeper plate.
Key Features:
- Manual release button
- Provided complete with keeper plate
- Rapid and easy installation
- Additional accessory products available
Electromagnetic fire door retainers allow fire doors to be legally held open in high foot traffic areas, reducing touchpoints and allowing access for all.
When connected into a fire alarm system, power to the electromagnet is removed when the alarm is active; closing the fire door via it’s standard mechanism.
24VDC and 230VAC variants are available in fire resistant ABS or metal housings options.
Features
- Legally holds open fire doors in public access areas including hospitals, offices, hotels and nursing homes
- Manual release button allows door to be closed without operating fire alarm
- Third party certified to EN1155 as a hold open device
- Knockouts included for surface or rear cable entry
| Approval | EN1155 |
|---|---|
| Category Type | Magnet |
| IP Rating | IP51 |
| Clearance | No |
Write Your Own Review
| Part No. | 302-019 |
| Holding Force (N) | 200 |
| Voltage | 24VDC |
| Current (mA) | 50 |
| Mounting | Wall or Floor (Bracket Req) |
| Ingress Protection | IP51 |
| Temp. Range (°C) | 0 to +40 |
| Colour (body) | White |
| Material | ABS |
| Weight (kg) | 0.4 |
