In stock
Product Code
SH-14-3201-0001-99
SKU
UT2620G

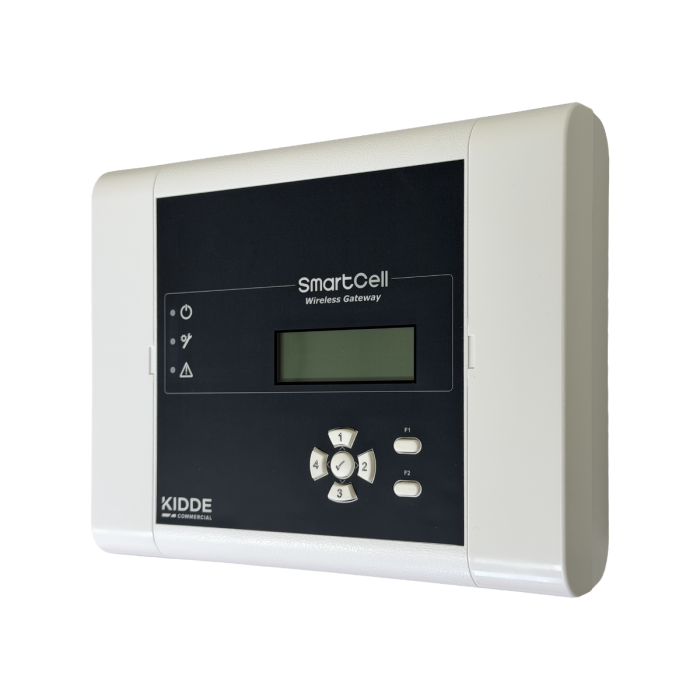

Excellence SmartCell Addressable Wireless Gateway
Excellence SmartCell Addressable Wireless Gateway
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
The SH-14-3201-0001-99 is a Excellence protocol gateway for interfacing a zone of wireless SmartCell fire alarm devices into a wired Excellence addressable fire alarm system. It enables these wireless devices to be managed directly from the control panel and provides a seamless interface between the hardwired components and the wireless zone.
Features
- Quick and easy to install
- Freely programmable to suit the protected area
- Automatic selection from 32 wireless channels for reliable signalling
- Multipath technology ensures a robust wireless solution
- Diversity transceivers allow maximum operational range
| Label / Promotion | New |
|---|---|
| Approval | EN54-13, EN54-25, EN54-17, CPR |
| Category Type | Interface |
| Colour | White |
| IP Rating | IP54 |
| System Type | Wireless |
| Clearance | No |
Write Your Own Review
General
| Status indication | 80 character LCD display |
| Compatibility | Excellence series addressable systems |
| Addressing method | Electronic |
| Address range | 1 to 128 |
| Wireless frequency | 868 to 870 MHz |
Electrical
| Power supply type | Loop powered |
| Operating voltage | 17 to 29VDC |
| Current consumption |
55mA (typical) 85mA (max) |
| Configuration | < 4 Gateways per loop |
| Output transmitter power | 14 dBm / 25 mW |
Isolation
| Type | Negative line break |
| Loop current | 17 to 29 VDC |
| Series resistance | < 0.2Ω |
| Switch current | < 1.2A |
| Leakage current | < 1mA |
| Isolation voltage | 14 to 15.5 VDC |
| Reconnect voltage | 14 to 15.5 VDC |
| Constant current | < 1 A |
Physical
| Physical dimensions | 270 x 220 x 80mm ( W x H x D) |
| Net weight | 1.45kg |
| Colour | Traffic white (RAL9016) |
| Mounting type | Wall mount |
| Material | Plastic |
| Cable specification | 0.13 to 3.31mm² (26 to 12 AWG) shielded or unshielded twisted pair (52 Ω / 500 nF max.) |
| Loop length | 2 km (using 0.8mm² cable) 3 km (using 1.5mm² cable) |
Environmental
| Vandal proof | No |
| Operating temperature | -10 to 55°C |
| Storage temperature | 0 to +30°C |
| Relative humidty | 0 to 95% noncondensing |
| Environment | Indoor |
| IP rating | IP54 |
| Application temperature | 25°C (typical) |
Regulatory
| Compliancy | CE, ICASA, REACH, RoHS 3, UKCA, WEEE |
| Certification | CPR |
| Standards | EN54-13 (Upcoming), EN54-17, EN54-18, EN54-25, ETSI 300-220 |
Compatible products
| Category | Part Code | Description |
| Detection Device | SC-21-0200-0001-99 | SmartCell Dual Smoke/Heat Detector |
| Detection Device | SC-51-0100-0001-99 | SmartCell Fire Manual Call Point (Includes protective transparent cover) |
| Door Holder | SC-44-0200-0001-99 | SmartCell SmartDoor White |
| Door Holder | SC-44-0300-0001-99 | SmartCell SmartDoor Black |
| Interface Unit | SC-41-0200-0001-99 | SmartCell Dual Input/Output |
| Notification Device | SC-22-0200-0001-99 | SmartCell Dual Smoke/Heat Detector With Sounder |
| Notification Device | SC-23-0210-0001-99 | SmartCell Dual Smoke/Heat Detector With Sounder VAD, Red Flash |
| Notification Device | SC-23-0220-0001-99 | SmartCell Dual Smoke/Heat Detector With Sounder VAD, White Flash |
| Notification Device | SC-31-0100-0001-99 | SmartCell Sounder Red |
| Notification Device | SC-31-0200-0001-99 | SmartCell Sounder White |
| Notification Device | SC-32-0120-0001-99 | SmartCell Red Sounder and Wall-Beacon (VAD White Flash) |
| Notification Device | SC-32-0220-0001-99 | SmartCell White Sounder and Wall-Beacon (VAD White Flash) |
| Notification Device | SC-33-0220-0001-99 | SmartCell White Sounder and Ceiling-Beacon (VAD White Flash) |
