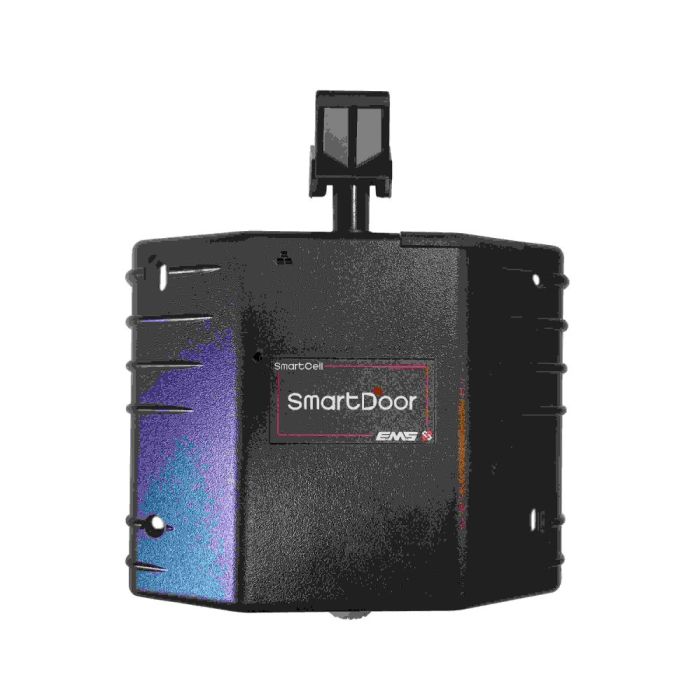

SmartCell SmartDoor Black
SmartCell Wireless Door Holder
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
SmartDoor is an intelligent wireless door controller, that combines both industry proven mechanics and the renowned fully EN certified robustness of SmartCell wireless technology.
Quick and easy to install, SmartDoor offers individual addressing at the SmartCell or Excellence Control Panel.
Operating on the 868 MHz European harmonised frequency band and with full SmartCell system integration, SmartDoor is wholly controlled by the fire system.
This device is third party certified and compatible with the full SmartCell product range.
- Fully wireless
- Quick and easy to install
- Fully addressable
- Controlled by the SmartCell or Excellence control panel
| Approval | EN54-25 |
|---|---|
| Category Type | Accessory |
| Colour | Black |
| System Type | Wireless |
| Clearance | No |
Write Your Own Review
| Power supply type | Batteries |
| Operating voltage | 2.22 to 3.3 VDC |
| Current consumption | 60 μA |
| Physical dimensions | 195 x 205 x 45 mm (W x H x D) |
| Net weight | 0.5 kg |
| Colour | Black |
| Mounting position | Door |
| Max. door leaf width | 1600 mm |
| Max. test door mass | 160 kg |
| Max. overload test drop weight | 36 kg |
| Max. test door friction | 0.8 Nm |
| Min. angle between door open / closed positions | 66 ° |
| Vandal proof | Yes |
| Operating temperature | -10 to +55 °C |
| Storage temperature | -10 to +30 °C (with batteries) |
| Relative humidity | 0 to 95% noncondensing |
| Environment | Indoor |
