In stock
Product Code
XLEN-R-12
SKU
HA8700

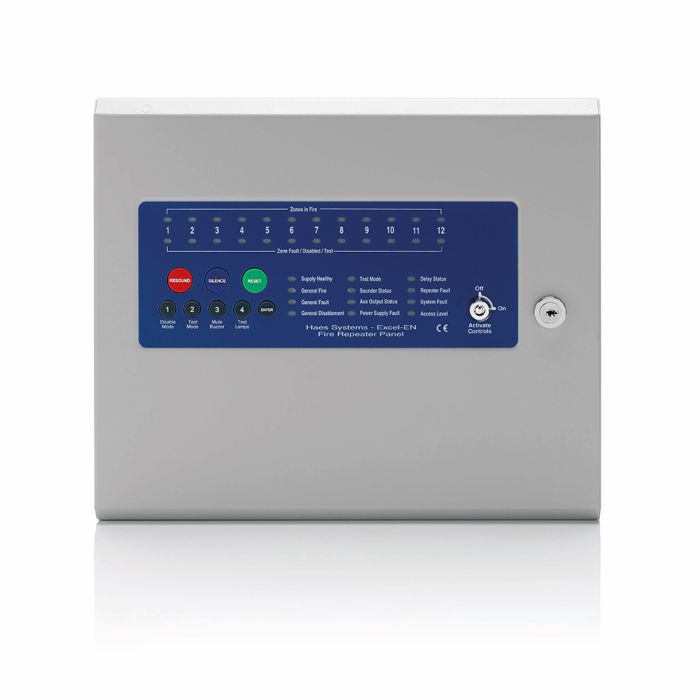

Haes Esento 12 Way Repeater Panel
Esento 12 Way Repeater Panel
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
12 zone fully functional or passive fire alarm repeater panel suitable for the Esento conventional panel range (not suitable for Eclipse panels)
12 zone fully functional or passive fire alarm repeater panel suitable for the Esento conventional panel range (not suitable for Eclipse panels)
| Category Type | Repeater |
|---|---|
| Colour | Grey |
| IP Rating | IP30 |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
Enclosure
Cable Entry
Dimensions
Mains Supply
Battery Capacity
Outputs
Switch Inputs
Communication Wiring
1.2mm Mild Steel IP30. Colour ref: MW334E Interpon powder coat
Via 20mm knockouts located in the top and rear of the cabinet
Back Box: 300mm W x 250mm H x 800mm D, Lid: 308mm W x 260mm H x 23mm D
1.25A internal switch mode power supply, Nom 27v DC
2 x 3.2Ah 12v VRSLA
6 x programmable sw -ve outputs (including on network card)
Class change & alert (pulsing)
Fault tolerant wiring requires 4 core (min 1.5mm) fireproof cable. Legacy radial wiring requires 2 core (min 1.5mm) fireproof cable
