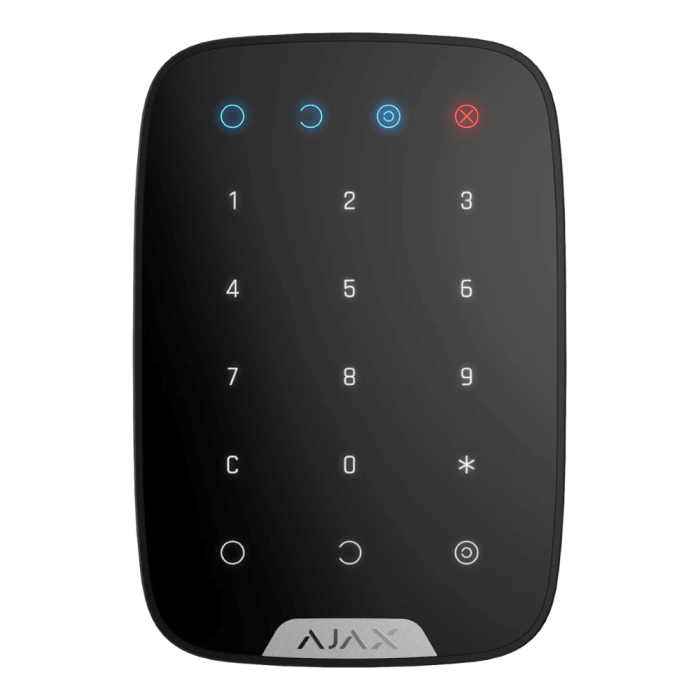

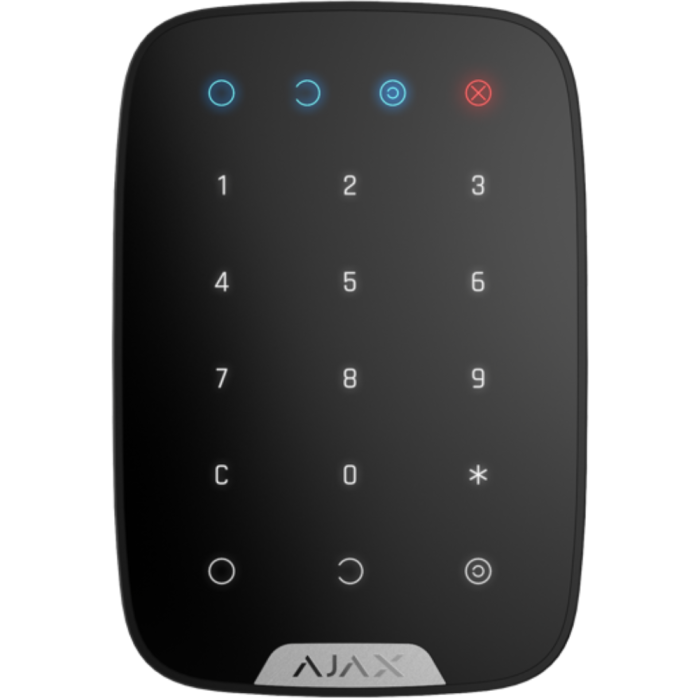

Ajax Keypad Jeweller (8EU) ASP - Black
Wireless touch keypad is used to arm/disarm an Ajax security system
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
KeyPad Jeweller
Wireless touch keypad is used to arm/disarm an Ajax security system. It is mounted in the room near the entrance door to provide quick access to the keypad.
Principle of operation
The device operates security modes when a digital code is entered on the keypad. Indication notifies of current security status, problems with detectors or breakdown of communication with the hub.
Features
- Alarm button is available. It notifies of each attempt to guess the code and blocks automatically if the permissible number of entries is exceeded.
- Authentication to prevent forgery
- Jamming detection and communication channels encryption
- Tampering alarm
- The device activates the full security mode by pressing one button
- If the burglar forces the user to enter the code, a hidden alarm signal can be sent to the Central Monitoring Station
- The keypad is blocked automatically if the incorrect code is entered too many times
Access for unregistered users
KeyPad supports up to 99 keypad access codes1 for people not registered in the Ajax system. Thanks to this feature, there is no need to create accounts for office employees, a cleaning company, or a realtor: it is enough to assign an access code to a person in the hub settings.
- Сreating and editing codes remotely
- Notifications for adding, removing, and deactivating code
- A unique name and ID binding to identify the user
Installation and set up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the keypad. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
| Adding to the system | Installation | Setup |
| Pairing with the security system via QR code | Effortless installation with the SmartBracket mounting panel | Configuring and testing in mobile and desktop apps |
| Approval | Grade 2 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Keypad |
| Colour | Black |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features: Two-way communication. Advanced sabotage protection. Block encryption featuring a dynamic key. Instant notifications. Remote configuration in the Ajax apps. |
| Frequency bands |
866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depends on the sales region. |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation |
GFSK |
| Radio signal range |
up to 1,700 m Between detector and control panel (or range extender) in an open space. |
| Encrypted communication |
Adjusted by PRO or user with admin rights in the Ajax app. |
| Frequency hopping |
Radio communication uses frequency hopping to prevent interception and jamming. |
Key features
| Sensor type |
capacitive |
| Malfunctions and security mode indication |
When KeyPad is active, it notifies with LED indication of the security mode, problems with detectors, or communication loss with the hub. |
| Functional button |
Operates in one of the modes. alarm The system sends an alarm to the central monitoring station and users. It also activates the sirens connected to the system. mute fire alarm Mutes interconnected fire detectors alarms. off The button is disabled. |
| Access codes |
up to 200 personal codes One code per each user. The number of personal access codes depends on the hub model. 1 keypad code One code per KeyPad. |
| Duress codes |
up to 200 personal codes One code per each user. The number of personal duress codes depends on the hub model. 1 keypad code One code per KeyPad. |
| Codes for unregistered people |
up to 99 personal codes For people who are not registered in the system. The number of such codes depends on the hub model. |
| Group security management |
Enter the general keypad code and the group ID to manage group security. |
| ACE Type |
type B |
Sabotage protection
| Protection against code guessing |
KeyPad locks for 3–180 minutes if an incorrect code is entered more than 3 times in a row within 1 minute. The lock time is adjusted by PRO or user with admin rights in the Ajax app. |
| Tamper alarm | Notifications on attempts to detach the keypad from the surface or remove it from the mounting panel. |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
Power supply
| Battery | 4 × AA Pre-installed. |
| Type | Type C |
| Calculated battery life | Up to 2 years |
Enclosure
| Detector dimensions | 150 x 103 x 14 mm |
| Weight | 197 g |
| Operating temperature range | from -10 °C to +40 °C |
| Operating humidity | up to 75% |
Colour
| Available colours | Black, White |
Complete Set
| Contains | KeyPad Jeweller SmartBracket mounting panel 4 × ААА battery (pre-installed) Installation kit Quick start guide |
Warranty
| Warranty Period | 24 months |
