In stock
Product Code
99968.286.BL1
SKU
99968.286.BL1

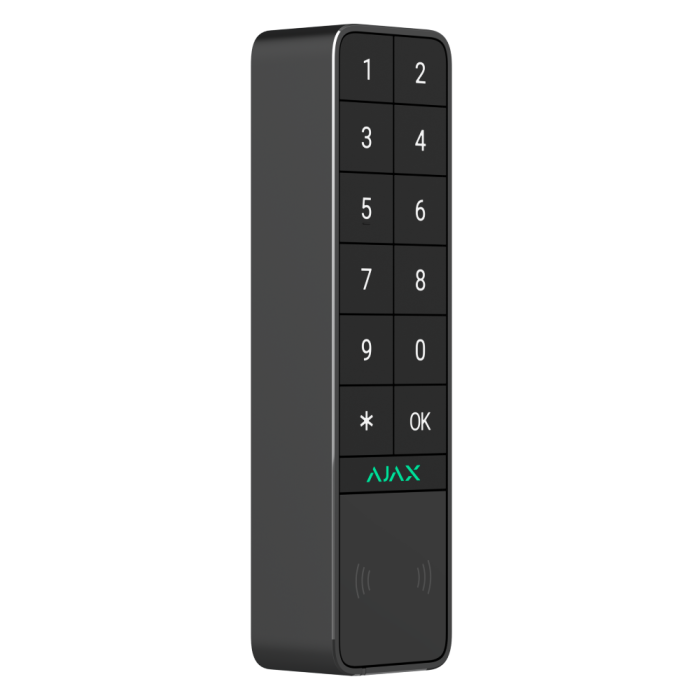

Ajax KeyPad Outdoor Jeweller (8EU) ASP - Black
Wireless keypad supporting authentication via Pass, Tag, smartphones, and codes. For outdoor and indoor use.
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Outdoor wireless keypad for controlling an Ajax system from outside the premises. It supports access credentials and secure communication in a weather-resistant body. It helps turn a technical security system into something customers can use confidently every day.
Key features:
- Outdoor-rated keypad
- Pass, Tag and code support
- Panic and duress functions
- Battery or external power options
- Jeweller wireless communication
- Simple user control
- Works with Ajax apps and compatible hubs
- Secure encrypted communication
- Fast daily operation for end users
- Outdoor installation option
| Approval | Grade 2 (EN 50131) |
|---|---|
| Category Type | Keypad |
| IP Rating | IP66 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Frequency bands |
866.0 – 866.5 MHz Depends on the sales region. |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range |
up to 1,700 m Between the range extender and a hub in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
Key features
| Keypad functions |
Each of the above can be configured as either a primary or secondary keypad function in the device settings in Ajax apps. Only one primary and one secondary function can be active at a time. Switch between functions by long-pressing the OK button on the keypad. |
| Authentication methods | access codes Tag key fobs Pass cards smartphone (via Bluetooth) |
| Access codes |
1 per each KeyPad Outdoor Jeweller.
1 per user. Up to 50 per each KeyPad Outdoor Jeweller. The total number depends on the hub model.
1 per user not registered in an Ajax system. Up to 50 per each KeyPad Outdoor Jeweller. The total number depends on the hub model.
1 per user. Up to 50 per each KeyPad Outdoor Jeweller. The total number depends on the hub model. |
| Contactless access |
DESFire® EV1, EV2, EV3 ISO 14443-А (13.56 MHz) |
| Contactless authentication via smartphone |
A smartphone with an Ajax app installed and Bluetooth Low Energy (BLE) support can be used for authentication instead of Tag or Pass. BLE is a radio protocol with low power consumption. The keypad supports Android and iOS smartphones with BLE 4.2 and later. |
| Arming without entering a code |
When enabled, this feature allows users to arm the facility without entering a code or presenting an access device. |
| Group security management |
Users can change the security mode of groups they have access to directly from the keypad. |
| Authorization confirmation with a passcode |
This feature activates two-factor authentication. When enabled, users must first present an access device (Pass, Tag, or smartphone) and then enter a passcode to confirm authorization. |
| Function button |
Operates in one of the following modes:
Sends an alarm to the central monitoring station and users. Also activates the sirens connected to the system.
Mutes alarms triggered by interconnected fire detectors.
The button is disabled. |
| Automation device control |
Allows users to control automation devices or run scenarios by keypad. |
| Starting entry delay |
Activates an entry delay, enabling users to disarm the facility using the main keypad. |
| Indication of malfunctions and security mode |
When enabled, the keypad uses LED indicators to show the current security mode, as well as detector malfunctions or loss of communication with the hub. A built-in buzzer notifies of alarms, opening doors, and entry/exit delays. |
Sabotage protection
| Protection against code guessing |
The keypad locks if an incorrect code is entered or unverified access devices are used more than 3 times in a row within 1 minute. The lock duration can be adjusted by a PRO or user with admin rights in an Ajax app. |
| Tamper alarm |
Notifications on attempts to detach the keypad from the surface or remove it from the mounting panel. |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
Power supply
| Battery |
2 × AAA Pre-installed. |
Optional power supply
| External supply operating range |
10.5–14 V⎓, up to 1 A The batteries serve as a backup when an external power supply is connected. |
Enclosure
| Dimensions |
170 × 45 × 31 mm |
| Weight |
258 g |
| Operating temperature range |
from −25 °C to +60 °C |
| Operating humidity |
up to 80% |
| Protection class |
IP66, IK08 |
Colour
| Available colours | Black, White, Graphite |
Complete Set
| Contains |
KeyPad Outdoor Jeweller 2 × CR123A battery (pre-installed) SmartBracket mounting panel Installation template Installation kit Quick start guide |
Warranty
| Warranty Period | 24 months |
