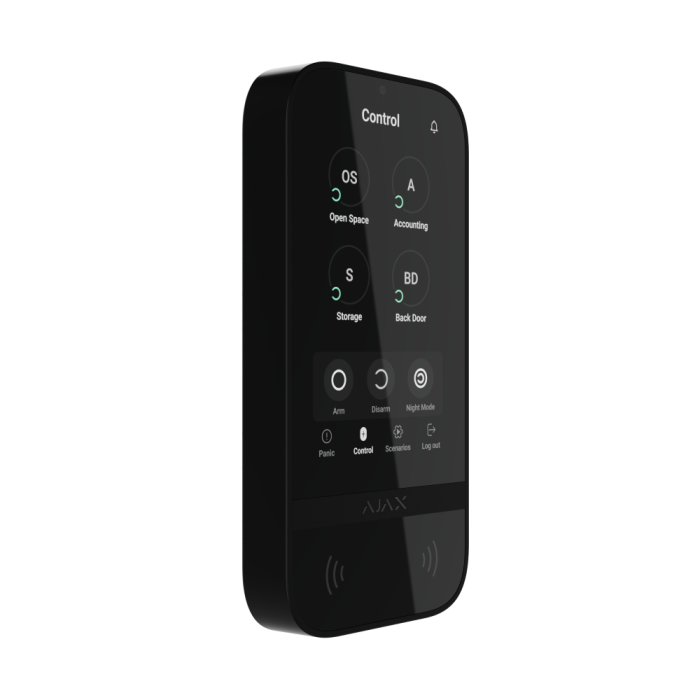

Ajax KeyPad TouchScreen Jeweller (8EU) ASP - Black
Wireless keypad with a touch screen that supports authentication with smartphones, Pass, Tag, and codes
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Wireless touchscreen keypad for controlling Ajax security systems. It gives users a clearer interface for arming, disarming, group control and system status. It helps turn a technical security system into something customers can use confidently every day.
Key features:
- Touchscreen interface
- Group and Night Mode control
- Pass and Tag support
- Wireless Jeweller communication
- Jeweller wireless communication
- Simple user control
- Works with Ajax apps and compatible hubs
- Secure encrypted communication
- Fast daily operation for end users
- Control of security modes and devices
| Approval | Grade 2 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Keypad |
| Colour | Black |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Frequency bands |
866.0 – 866.5 MHz Depends on the sales region. |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range |
up to 1,700 m Between the range extender and a hub in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
| Wings communication technology |
Proprietary wireless communication technology to transmit large data packets. Key features:
|
| Frequency bands |
866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depends on the sales region. |
| Radio signal range |
up to 1,700 m Between keypad and hub (or range extender) in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
Display
| Diagonal | 5" |
| Matrix type | IPS |
| Resolution |
480 × 854 px |
| Sensor type | capacitive |
| Brightness settings | automatic manual If Auto Adjust is enabled, the display brightness depends on the light conditions. This saves battery power. |
| Backlight lifetime |
30,000 hours Guaranteed backlight lifetime when the Always Active Display toggle is enabled. It can be adjusted in Ajax apps and activates only when external power is connected. |
Key features
| Panic buttons | panic fire auxiliary help Sending an alarm or calling for help from the separate keypad tab. |
| Control | codes Tag key fobs Pass cards smartphone (Bluetooth) |
| Contactless access |
DESFire® EV1, EV2 ISO14443-А (13.56 MHz) |
| Access codes |
up to 200 personal codes One code per each user. The number of personal access codes depends on the hub model. 1 keypad code Per each KeyPad TouchScreen Jeweller. |
| Duress codes |
up to 200 personal codes One code per each user. The number of personal duress codes depends on the hub model. 1 keypad code Per each KeyPad TouchScreen Jeweller. |
| Codes for unregistered people |
up to 99 personal codes For people who are not registered in the Ajax system. The number of such codes depends on the hub model. |
| Arming without entering a code |
The enabled feature allows the user to arm the system without entering a code or presenting the access device. |
| Group management |
Changing the security mode of the groups to which the user has access from the keypad’s display. |
| Scenarios management |
A separate keypad tab contains up to 6 buttons, and each one can control one automation device or a group of devices. |
| Indication of malfunctions and security mode |
If enabled, the logo lights up red continuously or when the system or group is armed. KeyPad TouchScreen Jeweller indication is shown on the display only when it is active. Built-in buzzer notifies about alarms, door openings and entry/exit delays. |
| Acknowledgment of the latest events |
up to 100 events Displays the latest system events since the last check. Events are grouped and sorted by the date of their occurrence. |
| Fire alarm muting |
Turns off the fire detectors alarm, including the interconnected alarm. |
| User pre-authorization | When the feature is enabled, viewing the current system status and control screen is unavailable. For access, the user must pre-authorize: enter a code or present a personal access device to the keypad. |
| Contactless authorization with a smartphone |
A smartphone with the installed Ajax app and Bluetooth Low Energy (BLE) support can be used instead of Tag or Pass to authorize a user. BLE is a radio protocol with low power consumption. The keypad supports Android and iOS smartphones with BLE 4.2 and higher. |
| Auto screen wakeup |
The keypad wakes up automatically when approaching it. The approaching distance can be adjusted in the app. |
| Remote firmware update |
When a new firmware is available, an admin or PRO with the rights to configure the system can run the update in Ajax apps. The keypad must be connected to an external power supply to update the firmware. |
| ACE Type | Type B |
Sabotage protection
| Protection against code guessing |
The keypad locks if an incorrect code is entered or unverified access devices are used more than 3 times in a row within 1 minute. The lock time is adjusted by PRO or user with admin rights in the Ajax app. |
| Tamper alarm |
Notifications on attempts to detach the keypad from the surface or remove it from the mounting panel. |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
| Holding screw |
To secure the keypad on SmartBracket. |
Power supply
| Battery |
6 × AAA Pre-installed. |
Enclosure
| Dimensions |
172 × 82 × 26 mm |
| Weight - black |
325 g |
| Weight - white |
329 g |
| Operating temperature range |
from -10 °C to +40 °C |
| Operating humidity |
up to 75% |
Colour
| Available colours | Black, White |
Complete Set
| Contains |
KeyPad TouchScreen Jeweller SmartBracket mounting panel 6 АА batteries (pre-installed) Installation kit Quick start guide |
Warranty
| Warranty Period | 24 months |
