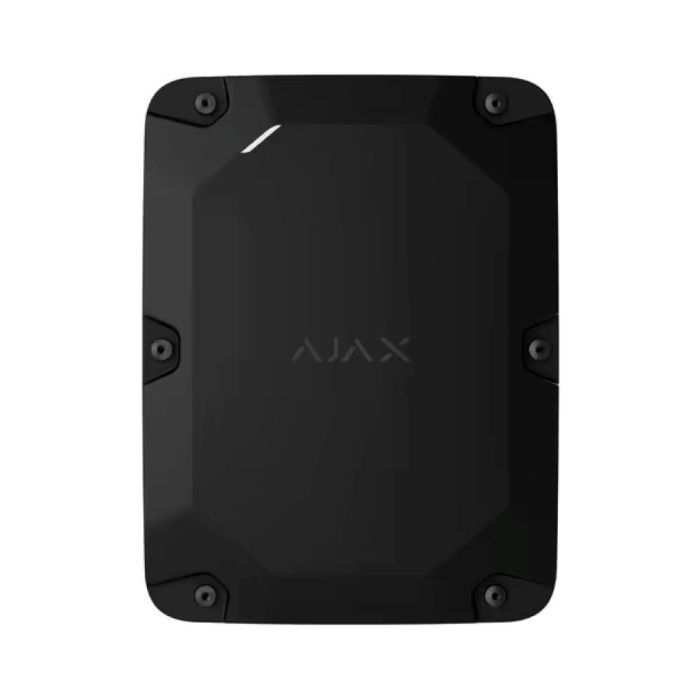

Ajax Superior MegaHub (8PD/UEU) - Black
Hybrid control panel for the biggest projects. Works with up to 999 Fibra and Jeweller devices. Connectable via Ethernet, Wi-Fi, and two SIM cards (2G/LTE).
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Superior MegaHub
Hybrid control panel for the biggest projects. Works with up to 999 Fibra and Jeweller devices. Connectable via Ethernet, Wi-Fi, and two SIM cards (2G/LTE).
The core of enterprise-level security
Superior MegaHub is the flagship of the Ajax ecosystem, designed for projects where conventional systems reach their limits. It combines wired and wireless technologies into one hybrid powerhouse, supporting up to 999 devices and 100 security groups. Designed for the most demanding projects, the hub overcomes the limitations of traditional hybrid systems and gives professionals the freedom to build security setups of any size and configuration. The device also comes fully equipped out of the box, with a built-in power supply, Ethernet, Wi-Fi, cellular, and radio modules. Certified to Grade 3, it forms a solid foundation for complex security setups, integrating intrusion protection, automation, and video surveillance into a single reliable solution.
Performance that scales
- Unmatched capacity with support for up to 999 wired and wireless devices
- Hybrid connectivity to merge wired and wireless Ajax devices into a single system
- Quick configuration and setup with no programming
- Compliance with Grade 3 to meet strict requirements for high-security installations
Key features
- Up to 999 devices wired or wireless — freely combined in a single system
- Up to 100 security groups for flexible access management
- Up to 100 automation scenarios to control lighting, gates, and other systems
- Up to 1000 users with individually configurable permissions
- Up to 500 rooms to organize devices by zone or function
- Up to 10 range extenders per hub to expand wireless coverage across large sites
- 8 lines to connect wired Ajax Superior devices
- Up to 2,000 m of communication range between the hub and devices in open space
- Fibra line topologies
- Beam
- Ring
- Tree
- Communication with devices
- Fibra
- Superior Jeweller
- TurboWings
- VoRF
- Built-in connectivity
- Ethernet
- Wi-Fi
- 2 SIM cards
- Cellular and radio modules
- Grade 3 certified
- Support for ExternalAntenna to overcome cellular signal interference
- Visual alarm verification
- by device alarm
- by tamper alarm
- by magnetometer alarm
- by scenario
- on demand
- by schedule
- by arming/disarming
- by masking attempt
- Security automation
- by alarm
- by schedule
- by arming/disarming
- by pressing Ajax Button
- by temperature
- by humidity
- by CO2 concentration
- Up to 60 hours of autonomous operation on a 12 V⎓, 18 Ah backup battery
- Protected casing for the device shipped with a standard casing
Discover future-proof hardware
Superior MegaHub comes either in its original casing or as a board for installation into Ajax Case in combination with other devices. In the original casing, the hub's current state is always visible via LED indication. If purchased without a casing, an external LED can be connected to the hub's board and mounted outside Ajax Case. This flexibility enables installers to efficiently combine the hub with other devices and arrange them neatly within a single enclosure.
All communicators built in
Superior MegaHub comes fully equipped with all necessary communicators — no additional modules are needed. Built-in radio modules provide seamless connectivity between the hub and system devices. Alarms and events are sent to the monitoring station via Ethernet, Wi-Fi, or cellular communication.
Communication between the hub and system devices
Fibra
Fibra communication technology allows installers to wire lines2 up to 2,000 m long. A single Superior MegaHub can run up to 8 lines. Ajax modules that split, protect, and power the line can extend the connection distance by dozens of times.
Fibra lines are multifunctional and allow for connecting different types of devices at once. All alarms, events, and visual verification data are delivered over the same line without interference. Fibra also features robust encryption and device authentication to prevent sabotage, spoofing, and data theft.
Superior Jeweller
Superior Jeweller delivers Grade 3 level reliability with strong encryption and advanced frequency hopping. It provides a radio communication range of up to 2,000 m in open space. The protocol transmits alarms, events, and readings to Ajax apps in just 0.15 seconds.
The protocol uses polling to display current device states, enabling real-time remote system control. Automatic power adjustment makes it energy efficient by avoiding the constant use of maximum transmitter power. This ensures long-lasting operation of wireless devices on pre-installed batteries.
TurboWings
TurboWings is a wireless technology designed for delivering photo verification data over distances of up to 1,700 m in open space. It also functions as a fallback communication channel that transmits large data packets if the main connection is lost. Once it is restored, TurboWings automatically sends data backups from cameras and detectors to the hub.
VoRF
VoRF is a proprietary audio communication protocol that ensures seamless and secure data exchange between the hub and devices (e.g., voice modules). It enables reliable voice communication between the secured site and the monitoring station. Based on time division duplex technology, the protocol provides simultaneous two-way communication over distances of up to 1,700 m without requiring on-site activation.
Communication with Ajax server and apps
The hub can be connected to three internet providers simultaneously: one via Ethernet and two via cellular networks. Ethernet serves as the primary channel, while two SIM cards with 2G/3G/4G (LTE) support act as backups. If the primary connection is lost, the hub automatically switches to the SIM with the strongest signal — all within seconds.
- Ethernet
- Wi-Fi
- Cellular: 2 × SIM 2G/3G/4G (LTE)
Reliable cellular communication through any barrier
When the hub is installed in a basement or metal-enclosed space, ExternalAntenna helps overcome cellular signal interference. The 3-meter cable allows for optimal antenna placement for the strongest possible signal. If the cable is cut or damaged, both the security company and users receive an instant alert.
- Cellular communication boost
- External antenna breakage detection
- Cable length of 3 m
PRO is king
The myth of wired systems being difficult to install is finally busted. Ajax has turned what used to be an expensive, time-consuming, and dusty process into a fast and flexible experience for PROs. A complete set of Ajax tools is meant to make every stage easy and convenient — from project design to client support and system maintenance.
The Superior MegaHub board can be installed into Ajax Case with a flick of the wrist. Intuitive Ajax apps guide installers through setup and help instantly integrate the device into the system. Once added, the device can be configured, tested, and maintained remotely at any time. No programming required — everything is ready to work out of the box.
| Installation | Setup | Configuration | Monitoring |
| The hub is available for order either in its original casing or as a board installed into Ajax Case. The installation kit includes all necessary fasteners, allowing installers to mount the device on a wall effortlessly. The hub board is removable, which makes wiring quick and easy. | The hub can be added to the system by scanning its QR code or entering the ID manually. Once added, the device is assigned a default name and settings optimized for common use cases. | Intuitive Ajax apps enable remote device setup and testing from anywhere with an internet connection, using a smartphone or computer. Installers can adjust settings and provide service promptly without visiting the site. | Ajax systems transmit events and alarms to the Ajax PRO Desktop app or any third-party monitoring software. Both users and security companies receive notifications in less than a second. Each alert includes detailed information: the device name, event time, and exact location of the triggered device. Photo or video alarm verification is also available, allowing CMS operators to see exactly what happened. |
More freedom in project design
Superior MegaHub supports both Superior Jeweller and Fibra communication protocols, allowing for any combination of wired and wireless devices within a single system. Installers can create the most efficient setups using three wired topologies alongside wireless connectivity. This hybrid flexibility simplifies installation, reduces costs, and ensures reliable performance across sites of any size or complexity.
Wireless connection
Ajax wireless technologies provide up to 2,000 m of communication range in open space. Ajax range extenders can effectively double the wireless coverage and deliver a stable connection across larWireless connection
Beam topology
Beam (radial wiring) uses one Fibra line and provides up to 2,000 m of wired communication1 without line extenders. A single hub can support up to eight beams or a combination of beams and other topologies.ge or complex facilities.
Ring topology
Ring uses two Fibra lines to form a hub–device–hub loop. If a line is broken, all devices remain operational — the system automatically splits into two beams. Ring offers up to 500 m of wired communication and can also be combined with other topologies on the same hub.
Tree topology
Tree connection helps create more complex system layouts by branching the line with Fibra accessories. Superior LineSplit Fibra divides one line into four branches and extends each by 2,000 m. Superior LineSupply Fibra provides additional power and extends the line as well.
Stable performance even in a blackout
Main power supply
Superior MegaHub features a built-in 110–240 V~ power supply that connects to the mains. Wired Ajax Superior devices are highly energy-efficient, consuming significantly less energy than comparable products from other manufacturers. This allows the entire system to operate without additional modules.
Backup battery
The hub can power the system for up to 60 hours while running on a 12 V⎓, 18 Ah backup battery. And when Battery Power Saver is enabled, the system can operate much longer. Meanwhile, wireless Ajax Superior devices require no external power supply, as they are battery-operated.
Sabotage resistance
Physical protection of the line against breakage
Superior MegaHub supports eight Fibra lines. With wired Ajax accessories, installers can split, power, protect, and extend connections dozens of times. Lines can also be branched to create unexpected cable routes, making tampering more difficult for intruders. With Ring topology, a line breakage forms two fully operational segments without losing any device. The system instantly notifies both the security company and users.
Tamper alarm
The hub that shipped with a standard casing features one tamper button. It triggers an alarm if the hub is detached from the surface. The model without casing allows for connecting an external tamper board sold with Ajax Case.
Device authentication to prevent spoofing
The hub automatically verifies each device's unique parameters during every communication session. If any parameter fails authentication, the hub ignores all commands from that device.
Communication failure detection in 36 s
Each system device regularly exchanges data with the hub and can send three data packets as often as every 12 seconds. If the connection is lost, the system detects it in only 36 seconds and notifies the security company and users about the incident.
Data encryption
All data stored and transmitted by the system is protected with block cipher encryption featuring a dynamic key. This makes it virtually impossible to reprogram the device, substitute, or steal the data.
Jamming detection and frequency hopping
Superior MegaHub constantly monitors the quality of wireless communication with system devices. If data packets are lost, it automatically switches to a different frequency within the band and reports the interference. Both the security company and users are notified about jamming attempts, ensuring the system stays one step ahead of sabotage.
Informative push notifications
In case of an alarm, the system instantly notifies users via Ajax apps with critical alerts that include alarm type, device name, facility name, and room. Each detector-triggered alarm is also assigned a code, enabling monitoring companies to identify it quickly. The hub transmits alarms to the Ajax PRO Desktop app or third-party monitoring software using proprietary protocols. Upon receiving an alarm, operators always know exactly where help is needed.
More Ajax superpowers
Visual verification of alarms
The hub supports photo and video alarm verification via Ajax MotionCam detectors and security cameras. Integrated in one powerful system, this device combination does the trick. It helps quickly assess the situation, saving users from concerns and monitoring companies from unnecessary patrol dispatches.
Automation for greater safety
Superior MegaHub supports up to 100 automation scenarios, allowing flexible configuration to meet the specific safety requirements of each site. The hub can arm or disarm the system by schedule, and the system can automatically react to events — for example, activate a smoke machine when someone enters the premises, shut off water in case of a leak, or start ventilation if the CO₂ level rises. Lights, electric locks, roller shutters, and garage doors can be controlled by schedule, arming/disarming, button press, or detector alarm.
Automation for greater safety
Operating system with immunity to lags and viruses
The hub runs on a real-time proprietary operating system OS Malevich. It's immune to viruses, resistant to cyberattacks, and extremely reliable. Loading and executing actions takes less than a second from tapping on a smartphone. Each automation scenario is executed within the same rapid timeframe.
The operating system can be automatically updated via the internet. The hub also transmits updates to other connected devices. Each update enhances the overall system performance and adds new features, so Ajax devices evolve and remain relevant for years.
| Approval | Grade 3 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Hubs |
| Colour | Black |
| IP Rating | IP66 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Capacity
| Ajax devices |
up to 999 Specifically, up to 5 range extenders. |
| Ajax NVRs | Up to 36 |
| Ajax cameras | up to 224 via Ajax NVRs and up to 492 standalone |
| Third-party IP cameras | up to 100 when using RTSP via SDK up to 224 when using ONVIF via Ajax NVRs |
| Users |
up to 1,000 Any number of admin users within the limit. PRO accounts for installers and monitoring companies. Access management for regular users. |
| Access codes | Up to 1,000 |
| Access control devices | Up to 1,000 Tags and Pass Cards |
| Automation scenarios |
up to 100 By alarm. By schedule. By arming/disarming. By temperature, humidity, CO2 concentration. By pressing Button. By touching LightSwitch. |
| Security groups |
up to 100 |
| Rooms |
up to 500 |
| Event log |
up to 1000 events Events are saved on the non-volatile onboard flash memory. |
Wired communication
| Fibra communication technology |
Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection. It features: Two-way communication. Advanced anti-sabotage. Instant notifications. Remote configuration via the Ajax apps. |
| Compatible wire |
4–core cable Bus connection. |
| Input |
8 Fibra lines Compatible with Fibra devices only. |
| Fibra line length |
up to 2,000 m When using the U/UTP cat.5 twisted pair. |
| Power supply of devices |
up to 14.4 W For all connected wired devices. |
| Output voltage range |
19–24 V⎓ |
| Topologies |
Star Ring In the line breakage event, the ring splits into two working segments, the devices continue to operate, and the system notifies a security company and users about the incident. |
| Devices polling interval |
from 12 to 300 s Adjusted by PRO or user with admin rights in the Ajax app. |
| Encrypted communication | All stored and transmitted data is protected by block encryption featuring a dynamic key. |
Wireless communication
| Jeweller communication technology |
Proprietary wireless technology for transmitting commands, alarms, and events. Superior Jeweller is an upgraded version of the Jeweller radio protocol for Ajax Superior devices, ensuring compliance with EN 50131 (Grade 3). Key features:
|
| Frequency bands | 865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz |
| Maximum effective radiated power (ERP) | up to 25 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio signal range |
up to 2,500 m Between the hub and connected devices (in an open space). Maximum range depends on the connected device. |
| Polling interval |
from 12 to 300 s Adjusted by PRO or user with admin rights in the Ajax apps. |
| Encrypted communication |
All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Frequency hopping |
To prevent radio interference and radio signal interception. |
| Wings communication technology |
Proprietary wireless communication technology to transmit photo verifications. Key features:
|
| Frequency bands | 865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz |
| Maximum effective radiated power (ERP) |
up to 25 mW Featured automatic power control to reduce power consumption and noise interference. |
| Radio signal range |
up to 2,500 m Between the hub and connected devices (in an open space). Maximum range depends on the connected device. |
| Encrypted communication |
All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Frequency hopping |
To prevent radio interference and radio signal interception. |
Communication channels
| Ethernet |
1 × 8P8C socket Up to 100 Mbps. |
| Cellular | 2 × micro–SIM slot |
| Cellular bands |
Cellular 2 × micro SIM slot Cellular bands 2G GSM900/DCS1800 (B3/B8) 4G (LTE) FDD B1/B3/B5/B7/B8/B20 Wi-Fi 802.11 b/g/n module Up to 72 Mbps. |
| Automatic switching between communication channels |
Switching between SIM cards — up to 4 minutes. Switching between 4G, 3G, and 2G networks on one SIM card — instantly. Switching between Ethernet and SIM card — instantly. |
| Communication channels prioritization |
Ethernet Wi-Fi Cellular connection Communication channels work in parallel to increase system reliability. Most of the data is transmitted via Ethernet. |
| External antenna connectors |
Jeweller Wings 4G (LTE) The system will notify users if ExternalAntenna is damaged. ExternalAntenna is sold separately. |
| Alarm Transmission System Categories |
SP2, SP5, DP3 |
| Control panel operation method |
Pass-through |
| Signaling security |
S2 Substitution security. |
| Information security |
I2 |
| Encryption algorithm |
AES 128 |
Notifications
| Supported notification types |
Push SMS Calls |
| Event types |
Alarms Video detections Malfunctions Armed modes System events Non-security alerts Automation devices Smart lock events Doorbell ringing Notification types are configured individually for each user. Notifications can be customized for A–F schemes according to EN 50131 requirements |
Photo verification
| Photo verification types |
Photo by alarm Photo by scenario Photo on demand Photo by schedule Photo by arming/disarming Photo by anti-masking Photo by tamper alarm Photo by magnetometer |
| Photo delivery time |
up to 9 s By default. |
| Photo resolution |
up to 960 × 720 pixels Depends on the detector. |
| Number of photos in a series: |
from 1 to 5 pictures |
Monitoring
| Supported protocols |
SIA DC-09 (SIA-DCS) SurGard (Contact ID) ADEMCO 685 Other proprietary protocols |
| Event types |
System alarms and events Photo verifications Panic button coordinates |
Sabotage protection
| Tamper alarm |
The system sends notifications of attempts to open the hub casing lid or detach the casing from the surface. |
| Protection against spoofing |
Device authentication |
| Frequency hopping | The hub sends notifications of jamming or connection loss with the devices to all users and the monitoring company. |
| Jamming alert | Superior Hub Hybrid 2 analyzes the noise level in the channel and the communication quality with the added devices and sends a notification in 30 seconds. |
Power supply
| Main power supply type |
Type A. |
| Device operating AC voltage range |
100–240 V~, 50/60 Hz From the main power supply. |
| Device operating DC voltage range |
10.5–15 V⎓ |
| Autonomous operation |
up to 60 hours Superior MegaHub with an 18 Ah backup battery can power a system with XXX wired devices for 60 hours. Wireless devices operate on batteries and do not require an additional power supply. The Battery power saver feature allows extending the backup battery life.. |
| Low battery voltage |
11.7 V= |
| Low battery recovery voltage |
12.7 V= |
| End of life battery voltage |
10.5 V= Superior MegaHub switches off. |
| Maximum output peak-to-peak ripple battery voltage |
1.2 V= |
| Minimum backup battery energy level in the charged state |
100% |
Current consumption
| Maximum nominal |
240 A |
| Quiescent at nominal voltage* |
up to 178 mA When GSM and Ethernet are enabled. up to 170 mA When Ethernet is disabled. 2 From the backup battery if the main power supply is lost. |
Casing
| Dimensions |
395 × 300 × 110 mm |
| Weight of the white device |
TBC |
| Weight of the black device |
TBC |
| Operating temperature range |
from −25 °C to +55 °C |
| Operating humidity |
up to 95% |
| Protection class |
IP66, IK10 |
Complete Set
| Contains |
Superior MegaHub Power cable Battery connection cable Ethernet cable Case E (395) Installation kit 8 terminating resistors (120 Ω) Quick start guide |
