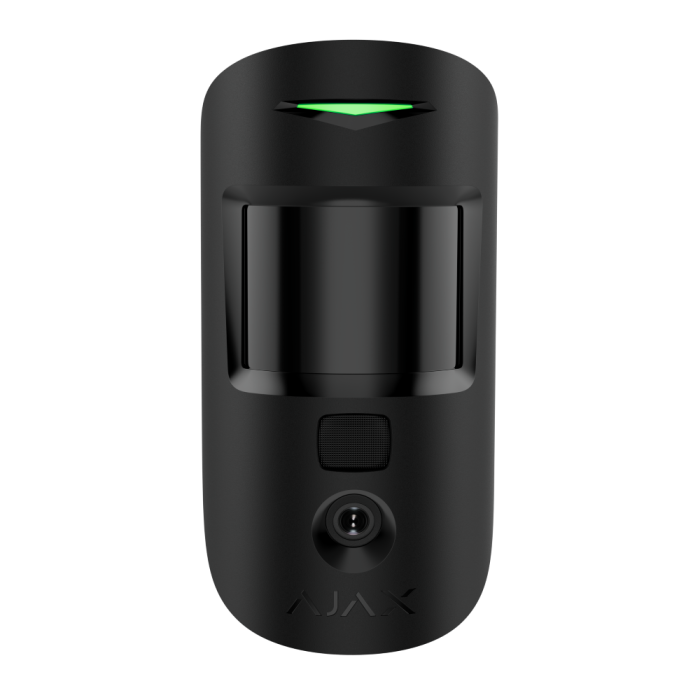

Superior MotionCam HD (PhOD) Jeweller

Wireless PIR motion detector with extended photo verification possibilities. Supports HD resolution.

Lightning-fast alarms. Verified in HD.

Superior MotionCam HD (PhOD) Jeweller is a next-generation motion detector designed to provide high-quality alarm photo verification with support for both HD1 and HDR. Thanks to HD technology, details such as faces or text become more clear and recognizable. In turn, HDR further enhances the image by improving colors and contrast, ensuring that photos look more lifelike and are free from overexposed or underexposed areas. But there’s more: Superior MotionCam HD (PhOD) Jeweller captures and delivers photos at incredible speeds thanks to the TurboWings protocol. Thus, security teams can quickly confirm real threats and respond effectively. Users can take on-demand photos anytime with a single tap in an Ajax app. The device can also be configured to take photos automatically by scenario, by arming/disarming, or according to a set schedule.

HD to capture every detail

With HD technology, photos from cameras become clearer and sharper, allowing better visibility of text, faces, and other details. Based on the facility requirements, PRO users can choose from four resolution options to balance image quality and delivery speed. HD resolution is ideal when a priority is to capture as much detail as possible. Images with lower resolution are sent faster, which is important for real-time monitoring. For example, with QVGA resolution, images arrive in just 4.5 seconds. The preferred photo resolution can be configured remotely via Ajax desktop and mobile apps.

HDR for challenging lighting conditions

Superior MotionCam HD (PhOD) Jeweller captures clear, balanced images using an advanced optical system, a CMOS sensor, and HDR (High Dynamic Range) technology. HDR improves colors and contrast by combining photos with different exposures into one. This prevents images from being too bright or too dark. As a result, photos look more colorful, detailed, and natural — just like we see things in real life.

Instant awareness on demand

Superior MotionCam HD (PhOD) Jeweller takes just 4.5 seconds to send a photo in resolution of 320 × 240 pixels and 15.5 seconds for an HD photo. In either case, this allows users to promptly access the actual situation at the scene. It takes a simple tap in an Ajax app to take a photo on demand. Additionally, the device can be configured to automatically take photos by arming/disarming, by schedule, or when another detector in the system is triggered.

TurboWings for fast photo transmission over long distances

Superior MotionCam HD (PhOD) Jeweller not only captures exceptional detail but also transmits it to the app incredibly fast over long distances. This is possible thanks to TurboWings, an Ajax Systems' enhanced data transfer protocol. With TurboWings, Superior MotionCam HD (PhOD) Jeweller delivers photos twice as fast as other Ajax motion detectors.

No intruder goes unnoticed

PIR Sensor	All Ajax motion detectors use PIR sensors by Excelitas Technologies — a field-leading American manufacturer specializing in designing and producing optronic components since 1931. Ajax Systems constantly proves the sensor's Superior quality at the production stage: we test 100% of manufactured devices. Wrapped into Ajax technologies, it brings the utmost accuracy of intrusion detection.
Special lens	The pattern of the Fresnel lens sections is designed to differentiate between the IR diagrams of a human, animal, and thermal noise. Large lens sections capture radiation at an adult's head and torso level. Smaller sections make the diagram more detailed. The lens provides the detector with accurate information about the thermal object in the detection zone and the nature of its movement.
Thermal interferences filter	We processed thousands of thermal patterns caused by humans, animals, and the environment to develop the SmartDetect software algorithm. In armed mode, the detector constantly analyses the thermal diagram from the PIR sensor, including the IR radiation intensity, thermal spot size, movement speed, time spent in the detection zone, and other parameters. The algorithm identifies false alarm markers instantly and with high accuracy. As a result — the detector accurately responds to human motion without false alarms.
Temperature compensation	Temperature compensation is a software mechanism keeping the thermal diagram contrast even if the ambient temperature is close to the temperature of the human body. With each ambient temperature measurement, the detector corrects the PIR sensor data according to the coefficient table stored in its memory. The detector is effective over the entire operating temperature range.
Sensitivity level	The detector can adapt to the conditions of a particular facility, considering possible thermal interference or pets. The sensitivity setting changes the set of markers by which false alarms are filtered. Low sensitivity makes the detector less likely to respond to an active pet. A high sensitivity will raise the alarm in case of any motion in the detection zone.
Professional intallation	With the correct installation at the height of 2.4 m and lens direction perpendicular to an alleged intrusion path, the detector provides an accurate thermal diagram and pet immunity. It instantly responds to a real threat, minimising false alarms caused by animals weighing up to 20 kg and below 50 cm in height.

Discover future-proof hardware

IR illumination for low light conditions
Optical system with HD camera
HDR processor
CMOS sensor
Fresnel lens
PIR sensor
Tamper button
Superior Jeweller and TurboWings antennas
Enhanced pre-installed batteries
Holding screw
SmartBracket mounting panel

Stable performance in heat and cold

The Ajax Superior devices are equipped with high-quality batteries from proven manufacturers only. In addition to real-time testing on the battery production stage, Ajax Systems inspects every unit to ensure the accuracy of the batteries’ characteristics. The temperature range does not affect the capacity, as the batteries provide stable performance in temperatures from –10 °С to +40 °С.

Enhanced wireless technologies

Ajax systems use secure two-way communication powered by proprietary radio protocols. Superior Jeweller7 delivers reliability with strong encryption, advanced frequency hopping, and outstanding energy efficiency. TurboWings complements it by transmitting photo verification data from motion detectors and ensuring connected devices always have the latest firmware7 through regular updates.

System supervision

All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, such as a tamper state, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.

Sabotage-resistant

All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, such as a tamper state, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.

Tamper alarm
The enclosure has two tamper buttons, which notify the security company and users once the device is dismantled from the mount.

Data encryption
All data the system stores and transmits is protected by block encryption featuring a dynamic key. Encryption makes it extremely difficult to reprogram the device, replace, or steal the data.

Data-rich notifications
An Ajax system instantly notifies about alarms and events with informative push notifications: security companies and users know exactly which device triggered, when and where it happened.

Regular polling
The device regularly exchanges data with the hub. The system controls each device state and reports if there is a malfunction or connection loss.

Device authentication against spoofing
The hub checks the device’s unique parameters for authentication during each communication session. If any parameter fails the check, the hub ignores device commands.

Communication failure detection
The device regularly exchanges data with the hub. With minimal polling settings (3 data packages in 12 seconds), it takes 36 seconds to identify communication loss and notify the security company and users about the incident.

Effortless installation and setup

Superior MotionCam HD (PhOD) Jeweller is ready to operate straight out of the box. Using the SmartBracket panel, an installer can effortlessly mount the device on the wall, eliminating the need to disassemble the enclosure. Ajax apps help quickly make the device a part of the ecosystem: simply pair the device with the hub by scanning the QR code. It can always be reconfigured remotely without the need for on-site visits.

Attributes

Attributes
Approval	Grade 2 (EN 50131), PD 6662:2017
Category Type	Motion detectors
Colour	Black
IP Rating	IP50
System Type	Intruder
Clearance	No

Reviews

Write Your Own Review

Product Attachments

Specifications

Communication

Superior Jeweller data transfer protocol	Proprietary wireless protocol for transmitting commands, alarms, and events. Key features: Two-way communication. Advanced sabotage protection. Enhanced block encryption with a dynamic key. Instant notifications. Remote control and configuration in Ajax apps.
Frequency bands	865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz
Maximum effective radiated power (ERP)	up to 20 mW Automatic power control to reduce power consumption and noise interference.
Radio signal modulation	GFSK
Radio signal range	up to 1,700 m Between detector and control panel (or range extender) in an open space.
Encrypted communication	All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.
Frequency hopping	Radio communication uses frequency hopping to prevent interception and jamming.

TurboWings communication technology	Proprietary wireless communication technology for uploading firmware updates. Key features: Two-way communication. Advanced sabotage protection. Block encryption featuring a dynamic key. Data packet reload in case of transmission errors. Data packets delivery check.
Frequency bands	865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz
Radio communication range	up to 1,700 m Between the device and a hub (or a range extender) in an open space. The maximum range depends on the hub model.
Encrypted communication	All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.
Frequency hopping	To prevent radio interference and jamming.

Detection

Sensitive elements	PIR sensor
Motion detection distance	up to 12 m When installed at the height of 2.4 m
Motion detection angles	horizontal: 88.5°
Motion detection speed	from 0.3 to 2.0 m/s The direction of the detector sensors should be perpendicular to an alleged intrusion path into the facility.
Sensitivity	4 levels Adjusted by a PRO or a user with admin rights in the Ajax app
Pet immunity	weight: up to 20 kg height: up to 50 cm
False alarm prevention	SmartDetect Software algorithm.
Temperature compensation	Effective motion detection at temperatures from −10°C to +40°C.

Photo verification

Photo by alarm	A built-in camera is activated if the detector is armed and motion is detected.
Photo by tamper alarm	A built-in camera takes a photo if the tamper triggering is detected. The feature is disabled by default.
Photo on demand	The user takes pictures at any time or when the detector is armed (depending on settings). The feature is disabled by default.
Photo by scenario	The detector’s camera takes pictures automatically when other Ajax detectors are triggered. The feature is disabled by default.
Photo by schedule	The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher.
Photo by arming/disarming	The detector automatically takes photos when the security state is changed.
Adjustable photo resolution	960 × 720 px 640 × 480 px (by default) 320 × 240 px 160 × 120 px Adjusted by PRO or a user with admin rights in an Ajax app.
HDR image	Improves detail accuracy in bright and dark scenes.
IR backlight	For night photography and low light conditions.
Series of pictures	from 1 to 5 images with a resolution of 320 × 240 px or 160 × 120 px from 1 to 3 images with a resolution of 640 × 480 px or 960 × 720 px Adjusted by PRO or a user with admin rights in an Ajax app.
Photo delivery time	up to 3 s — 160 × 120 px resolution up to 4.5 s — 320 × 240 px resolution up to 11 s — 640 × 480 px resolution up to 15.5 s — 960 × 720 px resolution Photo delivery time depends on the image resolution selected in the device settings.

Sabotage protection

Tamper alarm	Notifications on attempts to detach the detector from the surface or unlock the SmartBracket lock and remove the detector from the mounting panel.
Holding screw	to secure the detector on SmartBracket
Protection against spoofing	device authentication
Communication loss detection	after 36 s Detection time depends on the Jeweller/Fibra settings.

Power supply

Battery	2 × CR123A Pre-installed.
Type	Type C
Calculated battery life	up to 4 years With Photo on demand toggle disabled. up to 3 years With Photo on demand toggle enabled.
Detector’s operating voltage range	4.2-6.2 V=
Detector’s nominal operating voltage	6 V
Quiescent detector’s current consumption at nominal voltage	0.030 mA
Maximum detector’s current consumption at nominal voltage	400 mA
Full capacity	1,550 mAh
Low battery voltage	4.7-5.0 V=
Low battery recovery volatage	5.0-5.3 V=
End of life battery voltage	3.8 V=
End of life battery capacity	150 mAh

Enclosure

Detector dimensions	135 x 70 x 60 mm
Weight of the white device	170 g
Weight of the black device	157 g
Operating temperature range	from -10 °C to +40 °C
Operating humidity	up to 75%
Protection class	IP50

Colour

Available colours

Black, White

Complete Set

Contains

Superior MotionCam HD (PhOD) Jeweller
SmartBracket mounting panel with holding screw
2 × CR123A batteries (pre-installed)
Installation kit
Quick start guide

Warranty

Warranty Period

24 months
