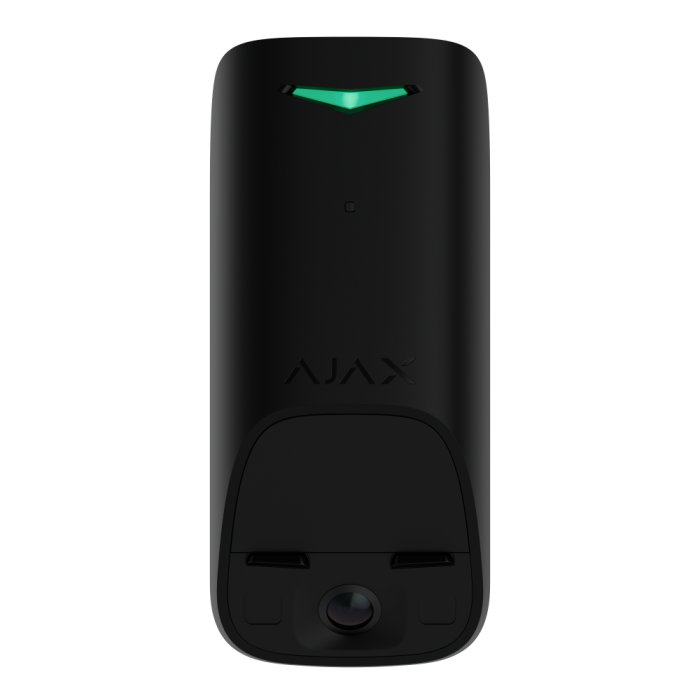

Ajax Superior MotionCam G3 (PhOD) Jeweller (8EU) ASP - Black

Wireless PIR motion detector with extended photo verification possibilities. Supports HD resolution.

Be the first to review this product

DELIVERY

We always aim to same day dispatch on all orders received before 2.30pm.

TRADE COUNTER

Firesense also offer the ability to collect your order from our trade counter.

Superior MotionCam G3 (PhOD) Jeweller

Wireless PIR motion detector with an anti-masking system

Verified motion alarms for high stakes. Now wireless.

Keep an eye on any threats with Superior MotionCam G3 (PhOD) Jeweller — the world's first Grade 3 motion detector with a built-in camera. It detects anyone sneaking or rushing up to 15 m away, crawling beneath the detector, or trying to obstruct the sensors. Within seconds, the device captures evidence and delivers a photo series to the monitoring station and system users to give a clear view of the scene. Images come in HD1 and are enhanced with HDR for vivid detail and balanced exposure in any lighting. Choose when to get insight: after an alarm, by set scenarios, or on demand. All to always have the true picture and respond only to real threats quickly and effectively.

Built to stand out

Photo verification of alarms and events delivered in seconds
Clarity in every image with HD and HDR
Detection of any movement: fast or slow, high or low
Advanced protection against intricate sabotage techniques
Fully wireless device with up to six years of battery life
Installation and setup within a few minutes

Visual proof of any threat

Photo by alarm
Photo on demand
Photo by scenario
Photo by schedule
Photo by masking
Photo by arming/disarming
Photo by tamper alarm

Clear evidence in every detail

Superior MotionCam G3 (PhOD) Jeweller is engineered to deliver maximum information in every photo. It features an enhanced optical system, an optimized aspect ratio, and a field of view wider than detection coverage. Together, these improvements allow the device to capture and convey more details for fast and accurate situation assessment.

Four resolutions up to HD

HD (864 × 720 pixels)
- The best quality to capture any detail
VGA (576 × 480 pixels)
- Balance of quality and delivery speed
QVGA (288 × 240 pixels)
- Fast delivery with moderate quality
QQVGA (160 × 128 pixels)
- The fastest delivery
HDR technology
- See every detail with balanced exposure, even in challenging lighting conditions
Up to five photos per series
- Choose a single photo or an animated series for a better context of the event
Smart IR illumination
- Get a clear view of the event, even in low-light conditions

Enhanced motion detection

Horizontal viewing angle: 90°
Proprietary optical system with a PIR sensor and multifaceted mirror to focus IR radiation
Detection of any movement fast or slow, and even crawling
Vertical viewing angle: 71°
Temperature compensation for efficient detection in heat and cold
SmartDetect Software algorithm and three sensitivity levels to avoid false alarms
Regular self-check of a PIR sensor, anti-masking sensor, and camera connection

Enhanced wireless technology

Superior Jeweller is our next-generation radio protocol developed for the wireless devices of the Ajax Superior product line. It delivers stronger encryption, advanced frequency hopping, and outstanding energy efficiency. This makes Superior Jeweller the first-ever wireless communication technology to meet Grade 3 requirements.

Up to 3,500 m of communication range in open space
Instant alarm and malfunction notifications
Two-way radio communication with enhanced encryption
Device polling interval starting from 12 s

TurboWings for fast photo transmission over long distances

Superior MotionCam G3 (PhOD) Jeweller not only captures exceptional detail but also transmits it to Ajax apps incredibly fast over long distances. This is possible thanks to TurboWings, an Ajax Systems' enhanced data transfer protocol. With TurboWings, Superior MotionCam G3 (PhOD) Jeweller delivers photos twice as fast as other Ajax motion detectors. The protocol also ensures devices always have the latest firmware through regular updates.

Long-lasting performance

Up to six years of autonomous operation
High-performance batteries from proven manufacturers
Pre-installation battery testing for reliability
Minimal impact of threshold temperatures on battery life
Early low-battery warnings
Easy battery replacement within minutes

Sabotage resistance

Advanced anti-masking system
Two tamper buttons to detect dismantling or detachment
Locker for fixing the device on the SmartBracket mounting panel
Frequency hopping for radio interference and jamming protection
Device authentication against spoofing
Communication loss detection3 within 36 seconds
Regular polling to control the device and the built-in sensor states
Automatic device self-check with state report
Instant notifications of camera disconnection
Anti-sabotage features are compliant with Grade 3 requirements.

Hassle-free installation and setup

Installation	Setup	Configuration	Monitoring
Quick installation without enclosure disassembly Built-in spirit level Option for side installation Ready to operate straight out of the box Up to six years of operation on pre-installed batteries All necessary fasteners included in the complete set	Adding to the system via QR code Setup in minutes via an Ajax app — no programming required	Configuration and testing of the device and photo verification features remotely or on site	Instant notifications of alarms and events Integration with monitoring company software for seamless photo transmission Real-time notifications when maintenance is required

Attributes

Attributes
Approval	Grade 3 (EN 50131), PD 6662:2017
Category Type	Motion detectors
Colour	Black
IP Rating	IP30
System Type	Intruder
Clearance	No

Reviews

Write Your Own Review

You're reviewing:Ajax Superior MotionCam G3 (PhOD) Jeweller (8EU) ASP - Black

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

Product Attachments

Specifications

Communication

Superior Jeweller data transfer protocol	Proprietary wireless protocol for transmitting commands, alarms, and events. An upgraded version of the Jeweller radio protocol for Ajax Superior devices, ensuring compliance with Grade 3 (EN 50131). Key features: Two-way communication. Advanced sabotage protection. Enhanced block encryption with a dynamic key. Instant notifications. Remote control and configuration in Ajax apps.
Frequency bands	865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz
Maximum effective radiated power (ERP)	up to 20 mW Automatic power control to reduce power consumption and noise interference.
Radio signal modulation	GFSK
Radio signal range	up to 3,500 m Between detector and control panel (or range extender) in an open space.
Encrypted communication	All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.
Frequency hopping	Radio communication uses frequency hopping to prevent interception and jamming.

Wings communication technology	Proprietary wireless communication technology for uploading firmware updates. Key features: Two-way communication. Advanced sabotage protection. Block encryption featuring a dynamic key. Data packet reload in case of transmission errors. Data packets delivery check.
Frequency bands	865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz
Radio communication range	up to 3,500 m Between the device and a hub (or a range extender) in an open space. The maximum range depends on the hub model.
Encrypted communication	All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.
Frequency hopping	To prevent radio interference and jamming.

Detection

Sensitive elements	PIR sensor microwave sensor K-band microwave sensor to prevent false alarms caused by thermal interference.
Motion detection distance	up to 15 m When installed at the height of 2.4 m
Reduced blind zone	up to 30 cm Detects a crawling person at a distance of 30 cm from the detector.
Motion detection angles	horizontal: 90° vertical: 71°
Motion detection speed	from 0.1 to 4.0 m/s The direction of the detector sensors should be perpendicular to an alleged intrusion path into the facility.
Sensitivity	3 levels Adjusted by a PRO or a user with admin rights in the Ajax app
False alarm prevention	SmartDetect Software algorithm.
Temperature compensation	Effective motion detection at temperatures from −10°C to +40°C.
Self-test of sensitive elements	The device checks its sensors’ state and notifies if any malfunction is detected.

Photo verification

Photo by alarm	A built-in camera is activated if the detector is armed and motion is detected.
Photo on demand	The user takes pictures at any time or when the detector is armed (depending on settings). The feature is disabled by default.
Photo by scenario	The detector’s camera takes pictures automatically when other Ajax detectors are triggered. The feature is disabled by default.
Photo by schedule	The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher.
Photo by masking or tamper alarm	The detector automatically takes photos when masking is detected or when the tamper is triggered. The feature is disabled by default.
Photo by arming/disarming	The detector automatically takes photos when the security state is changed.
Adjustable photo resolution	HD (864 × 720 pixels) VGA (576 × 480 pixels) QVGA (288 × 240 pixels) QQVA (160 × 128 pixels) Adjusted by PRO or user with admin rights in the Ajax app.
HDR image	Improves detail accuracy in bright and dark scenes.
IR backlight	For night photography and low light conditions.
Series of pictures	from 1 to 5 images with a resolution of 288 × 240 px or 160 × 128 px from 1 to 3 images with a resolution of 576 × 480 px or 864 × 720 px Adjusted by PRO or user with admin rights in the Ajax app.
Photo delivery time	up to 3 s — 160 × 128 px resolution up to 4 s — 288 × 240 px resolution up to 10 s — 576 × 480 px resolution up to 14 s — 864 × 720 px resolution When the hub is connected via Ethernet or 4G and the Wings signal strength between the hub and the device is 3 bars. Photo delivery time refers to the time required to deliver a photo from the detector to the hub. For a detector connected via a range extender, the photo delivery time is available here.

Sabotage protection

Tamper alarm	2 tampers Notifications on attempts to detach the detector from the surface or unlock the SmartBracket lock and remove the detector from the mounting panel.
Protection against spoofing	device authentication
Anti-masking system	detects attempts to block the detector view
Lock for SmartBracket	To secure the detector on SmartBracket.
Communication loss detection	after 36 s Detection time depends on the Jeweller/Fibra settings.

Power supply

Battery	4 × CR123A Pre-installed.
Type	Type C
Calculated battery life	Up to 6 years
Detector’s operating voltage range	4.2-6.2 V=
Detector’s nominal operating voltage	6 V
Quiescent detector’s current consumption at nominal voltage	0.464 mA
Maximum detector’s current consumption at nominal voltage	1200 mA
Full capacity	3,200 mAh
Low battery voltage	4.705-5.005 V=
Low battery recovery volatage	5.055-5.335 V=
End of life battery voltage	3.8 V=
End of life battery capacity	300 mAh

Enclosure

Detector dimensions	66 x 66 x 140 mm
Weight of the black device	294 g
Operating temperature range	from -10 °C to +40 °C
Operating humidity	up to 75%
Protection class	IP30, IK04
