In stock
Product Code
133215.120.BL1
SKU
133215.120.BL1

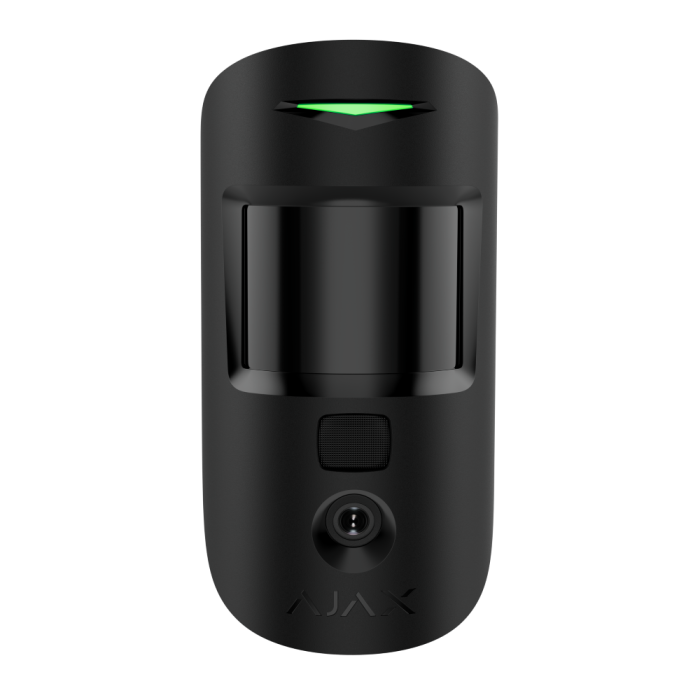

Ajax Superior MotionCam (PhOD) Jeweller (8EU) ASP - Black
Wireless PIR motion detector with extended photo verification possibilities
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Superior MotionCam (PhOD) Jeweller
Wireless PIR motion detector with extended photo verification possibilities
Expanded features, reliability, and compliance for PROs
Superior is a game changer among wireless devices with improved certification compliance. Ajax Superior devices are stuffed with cutting-edge hardware, providing exceptional features and effortless installation. All UK-based installers and companies with PRO accounts have full access to Ajax Superior product line.The Ajax Superior difference
| MotionCam (PhOD) Jeweller | Superior MotionCam (PhOD) Jeweller |
| Compliance with international security standards | Compliance with both international and local security standards |
| No holding screw | Holding screw for secured installation |
Lightning-fast alarms. Verified.
Superior MotionCam (PhOD) Jeweller has a built-in camera that takes photos once the detector is triggered. It needs just 9 seconds to show the actual situation on the scene. With visual evidence available in Ajax apps, the security company can quickly verify the threat and respond accordingly. Several types of photo verification relieve users of unnecessary anxiety and prevent security companies from false patrol calls. Users can take an on-demand photo with a single tap to monitor their house's state at any time. The detector can also automatically take photos by an alarm of another device in the system, by a specific schedule, and by arming/disarming.
Discover future-proof hardware
IR illumination for low light conditions
Fresnel lens
Camera
Enhanced battery
Jeweller and Wings antennas
PIR sensor
Tamper
SmartBracket mounting panel
Holding screw to secure the detector on SmartBracket
No intruder goes unnoticed
| PIR Sensor | All Ajax motion detectors use PIR sensors by Excelitas Technologies — a field-leading American manufacturer specializing in designing and producing optronic components since 1931. Ajax Systems constantly proves the sensor's Superior quality at the production stage: we test 100% of manufactured devices. Wrapped into Ajax technologies, it brings the utmost accuracy of intrusion detection. |
| Special lens | The pattern of the Fresnel lens sections is designed to differentiate between the IR diagrams of a human, animal, and thermal noise. Large lens sections capture radiation at an adult's head and torso level. Smaller sections make the diagram more detailed. The lens provides the detector with accurate information about the thermal object in the detection zone and the nature of its movement. |
| Thermal interferences filter | We processed thousands of thermal patterns caused by humans, animals, and the environment to develop the SmartDetect software algorithm. In armed mode, the detector constantly analyses the thermal diagram from the PIR sensor, including the IR radiation intensity, thermal spot size, movement speed, time spent in the detection zone, and other parameters. The algorithm identifies false alarm markers instantly and with high accuracy. As a result — the detector accurately responds to human motion without false alarms. |
| Temperature compensation | Temperature compensation is a software mechanism keeping the thermal diagram contrast even if the ambient temperature is close to the temperature of the human body. With each ambient temperature measurement, the detector corrects the PIR sensor data according to the coefficient table stored in its memory. The detector is effective over the entire operating temperature range. |
| Sensitivity level | The detector can adapt to the conditions of a particular facility, considering possible thermal interference or pets. The sensitivity setting changes the set of markers by which false alarms are filtered. Low sensitivity makes the detector less likely to respond to an active pet. A high sensitivity will raise the alarm in case of any motion in the detection zone. |
| Professional intallation | With the correct installation at the height of 2.4 m and lens direction perpendicular to an alleged intrusion path, the detector provides an accurate thermal diagram and pet immunity. It instantly responds to a real threat, minimising false alarms caused by animals weighing up to 20 kg and below 50 cm in height. |
Stable performance in heat and cold
The Ajax Superior devices are equipped with high-quality batteries from proven manufacturers only. In addition to real-time testing on the battery production stage, Ajax Systems inspects every unit to ensure the accuracy of the batteries’ characteristics. The temperature range does not affect the capacity, as the batteries provide stable performance in temperatures from –10 °С to +40 °С.
Unique wireless technologies
An Ajax system uses two-way secure radio communication based on the Jeweller proprietary protocol. It provides block cipher encryption and device authentication at each communication session with the hub to prevent sabotage, spoofing, or data theft.
System supervision
All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, such as a tamper state, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.
Sabotage-resistant
All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, such as a tamper state, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.
Tamper alarm
The enclosure has two tamper buttons, which notify the security company and users once the device is dismantled from the mount.
Data encryption
All data the system stores and transmits is protected by block encryption featuring a dynamic key. Encryption makes it extremely difficult to reprogram the device, replace, or steal the data.
Data-rich notifications
An Ajax system instantly notifies about alarms and events with informative push notifications: security companies and users know exactly which device triggered, when and where it happened.
Regular polling
The device regularly exchanges data with the hub. The system controls each device state and reports if there is a malfunction or connection loss.
Device authentication against spoofing
The hub checks the device’s unique parameters for authentication during each communication session. If any parameter fails the check, the hub ignores device commands.
Communication failure detection
The device regularly exchanges data with the hub. With minimal polling settings (3 data packages in 12 seconds), it takes 36 seconds to identify communication loss and notify the security company and users about the incident.
Effortless installation and setup
MotionCam S (PhOD) is ready to operate straight out of the box. Using the SmartBracket panel, an installer can effortlessly mount the device on the wall, eliminating the need to disassemble the enclosure. Ajax apps help quickly make the device a part of the ecosystem: simply pair the device with the hub by scanning the QR code. It can always be reconfigured remotely without the need for on-site visits.
| Approval | Grade 2 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Motion detectors |
| Colour | Black |
| IP Rating | IP50 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller data transfer protocol |
Proprietary wireless communication technology to transmit alarms and events. Key features: Two-way communication. Advanced anti-sabotage. Block encryption featuring a dynamic key. Instant notifications. Remote configuration via the Ajax apps. |
| Frequency bands |
865.0–868.0 MHz |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation |
GFSK |
| Radio signal range |
up to 1,700 m Between detector and control panel (or range extender) in an open space. |
| Encrypted communication |
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity. |
| Frequency hopping |
Radio communication uses frequency hopping to prevent interception and jamming. |
| Wings communication technology |
Proprietary wireless communication technology for uploading firmware updates. Key features: Two-way communication. Advanced sabotage protection. Block encryption featuring a dynamic key. Data packet reload in case of transmission errors. Data packets delivery check. |
| Frequency bands |
868.0–868.6 MHz |
| Radio communication range |
up to 1,700 m Between the device and a hub (or a range extender) in an open space. The maximum range depends on the hub model. |
| Encrypted communication |
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity. |
| Frequency hopping |
To prevent radio interference and jamming. |
Detection
| Sensitive elements | PIR sensor |
| Motion detection distance |
up to 12 m When installed at the height of 2.4 m |
| Reduced blind zone | up to 30 cm Detects a crawling person at a distance of 30 cm from the detector. |
| Motion detection angles |
horizontal: 88.5° |
| Motion detection speed |
from 0.3 to 2.0 m/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity |
3 levels Adjusted by a PRO or a user with admin rights in the Ajax app |
| Pet immunity | weight: up to 20 kg height: up to 50 cm |
| False alarm prevention |
SmartDetect Software algorithm. |
| Temperature compensation |
Effective motion detection at temperatures from −10°C to +40°C. |
Photo verification
| Photo by alarm | A built-in camera is activated if the detector is armed and motion is detected. |
| Photo on demand | The user takes pictures at any time or when the detector is armed (depending on settings). The feature is disabled by default. |
| Photo by scenario | The detector’s camera takes pictures automatically when other Ajax detectors are triggered. The feature is disabled by default. |
| Photo by schedule | The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher. |
| Photo by arming/disarming | The detector automatically takes photos when the security state is changed. |
| Adjustable photo resolution | 640 × 480 px 320 × 240 px (by default) 160 × 120 px Adjusted by PRO or user with admin rights in the Ajax app. |
| IR backlight | For night photography and low light conditions. |
| Series of pictures | from 1 to 5 images with a resolution of 320 × 240 px or 160 × 120 px from 1 to 3 images with a resolution of 640 × 480 px Adjusted by PRO or user with admin rights in the Ajax app. |
| Photo delivery time | up to 7 s — 160 × 120 px resolution up to 9 s — 320 × 240 px resolution up to 20 s — 640 × 480 px resolution Photo delivery time depends on the image resolution selected in the device settings. |
Sabotage protection
| Tamper alarm | 3 tampers Notifications on attempts to detach the detector from the surface or unlock the SmartBracket lock and remove the detector from the mounting panel. |
| Protection against spoofing |
device authentication |
| Anti-masking system |
detects attempts to block the detector view |
| Lock for SmartBracket | To secure the detector on SmartBracket. |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller/Fibra settings. |
Power supply
| Battery | 2 × CR123A Pre-installed. |
| Type | Type C |
| Calculated battery life | up to 4 years With Photo on demand toggle disabled. up to 3 years With Photo on demand toggle enabled. |
| Detector’s operating voltage range | 4.2-6.2 V= |
| Detector’s nominal operating voltage | 6 V |
| Quiescent detector’s current consumption at nominal voltage | 0.058 mA |
| Maximum detector’s current consumption at nominal voltage | 18 mA |
| Full capacity | 3,300 mAh |
| Low battery voltage | 4.55 V= |
| Low battery recovery volatage | 4.9 V= |
| End of life battery voltage | 4.2 V= |
| End of life battery capacity | 600 mAh |
Enclosure
| Detector dimensions | 135 x 70 x 60 mm |
| Weight of the black device | 165 g |
| Weight of the white device | 149 g |
| Operating temperature range | from -10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP50, IK04 |
Colour
| Available colours | Black, White |
Complete Set
| Contains | Superior MotionCam (PhOD) Jeweller SmartBracket mounting panel with holding screw 2 × CR123A battery (pre-installed) Installation kit Quick start guide |
Warranty
| Warranty Period | 24 months |
