In stock
Product Code
ACC-EN(BLK)
SKU
HO2507B

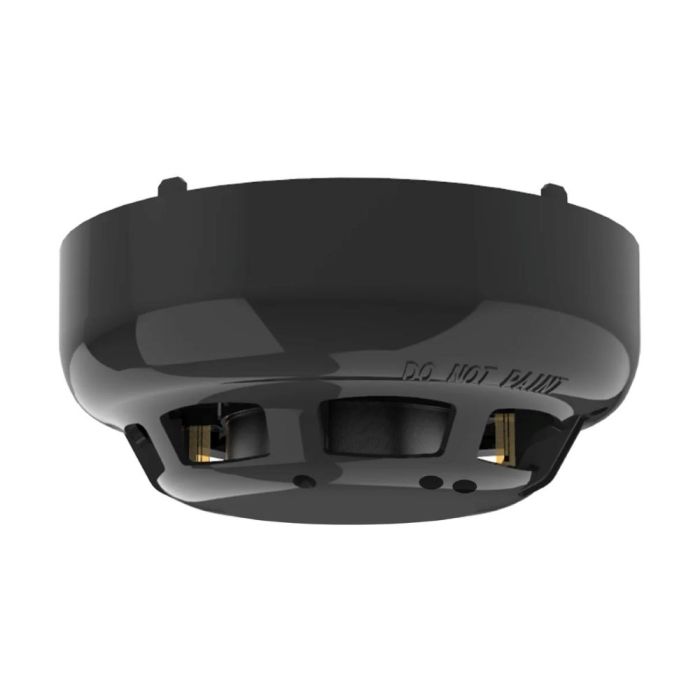

Hochiki Addressable Multi-Sensor Detector, Black
Addressable Multi-Sensor Detector, Black
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Model ACC-EN is a Multi-Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol, and incorporates a thermal element and High Performance photoelectric smoke chamber. The ACC-EN has three modes, which are controlled from the Control Panel, allowing either the optical element or thermal element or both elements to be active in making the fire decision. The sensor polling LEDs can be controlled via the Control Panel (pulsing/non-pulsing). The ACC-EN smoke chamber can easily be removed or replaced for easy maintenance.
- User selectable modes
- Incorporates Optical & Heat elements
- Removable, High Performance Chamber
- Twin LEDs allow 360° viewing – green when polling, turning red in fire
- Pulsing/non-pulsing controlled from panel*
- Variable sensitivity
- Approved to EN54-5, EN54-7 and EN54-29
- Electronically Addressed
- LPCB & VdS approved to categories A1 & C
- Also available in white and black
- SIL Level 2 capable variants available
| Approval | EN54-5, EN54-7 |
|---|---|
| Category Type | Detector |
| Colour | Black |
| Detection | Multisensor |
| IP Rating | IP42 |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
Ordering code
Operating Voltage
Low Power Mode
Quiescent Mode Current
Maximum Current Consumption
Alarm Current (controlled by CIE)
Transmission Method
Operating Temperature Range
Operating Humidity
Storage Temperature Range
Storage Humidity
Colour / Case Material
Weight
Diameter (mm) / Height (mm)
Compatible Bases ]
Base Fixing Centres (mm)
Approvals
Wind Exposure (Ref EN54-7)
IP Rating
ACC-EN(BLK) - Black
17 to 41 VDC
120 μA (typ.)
400 µA (typ) at 24 VDC
45.5 mA
9.1 mA (excluding remote indicator)
Digital Communications using ESP
-10 °C to + 50 °C
95 %RH - Non Condensing (at 40 °C)
-30 °C to +60 °C
<80% RH at 60 °C
Black / Polycarbonate
95
100 / 45
YBN-R/3, YBO-R/SCI, YBN-R/3(SCI)*2, YBO-BS, YBO-BS2, YBO-BS2(SCI)*2, YBO-BSB, YBO-BSB2
48 ~ 74
EN54-5, EN54-7 and EN54-29, LPCB & VdS approved to categories A1 & C, SIL2
1 ± 0,2 m s-1
IP42
