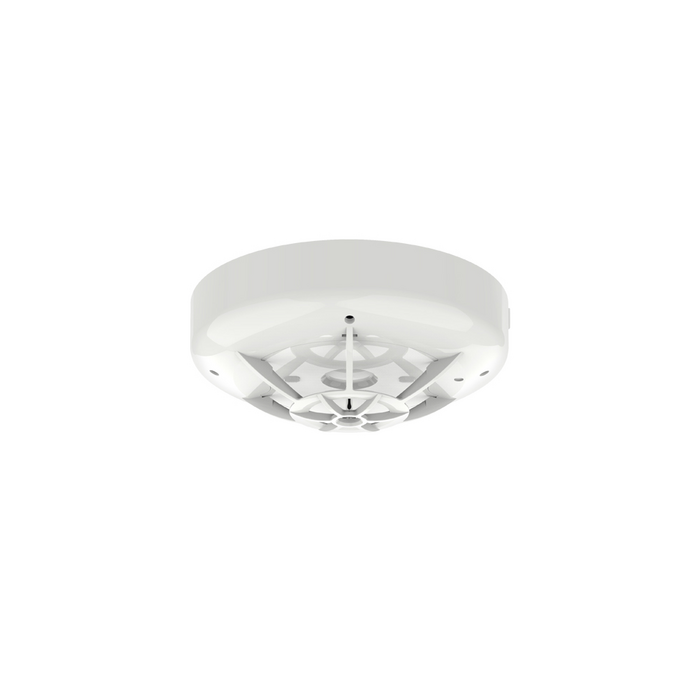

Hochiki DCV-AAK-E-OW Conventional Heat Detector
A1R Rate of Rise Heat Detector with a 60 Degree fixed temperature
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Hochiki DCV-AAK-E
DCV-MK-E is a Rate of Rise Heat Detector with a 60 Degree fixed temperature element using a thermistor and linearising circuit to provide an accurate linear response Heat Detector, The DCV-MK-E is ideal for use where medium ambient temperatures exist, such as drying rooms or where Smoke Detectors are unsuitable because Of the presence Of steam or cooking fumes such as in a kitchen. The DCV-AAK-E is supported by a range of bases for different applications and these are supported on the majority Of conventional Systems. A third terminal provides remote indicator output.
Features
- Electronic linear heat detection
- Remote Indicator output
- Wide votage range (9.5~30 VDC)
- Twin fire allow 3600 Viewing
- Range of mounting bases
- Approved by LPCB
- VdS pending
- Available in ivory and white.
| Label / Promotion | New |
|---|---|
| Clearance | No |
Write Your Own Review
Specifications
| Ordering codes |
DCV-MK-E-WI - ivory / DCV-AAK-E-OW - white |
| Operating voltage |
9.5 - 30 VDC |
| Quiescent current |
17.5 PA |
| Maximum current in alarm (typical) |
40 mA |
| Remote indicator drive |
20 mA (max) |
| IP Rating |
IP22 |
| Maximum humidity |
95% RH - non condensing (at 400C) |
| Operating Temperature range |
-10 to +50 Degrees |
| Storage Temperature Range |
-30 to +70 Degrees |
| Colour/Case material |
Ivory or white / polycarbonate |
| Compatible bases |
YBN-R/6, YBN-R/6SK, YBO-R/6R, YBO-R/6RS,YBO-R/6N, YBO-R/6PA |
| Base fixing centres (mm) |
48 ~ 74 |
| Weight (g) Dimensions (mm) |
65/Ø 100xH38 |
| Approvals to Class AIR |
LPCB VdS - pending |
