In stock
Product Code
DCD-CE3(WHT)
SKU
HO2004W

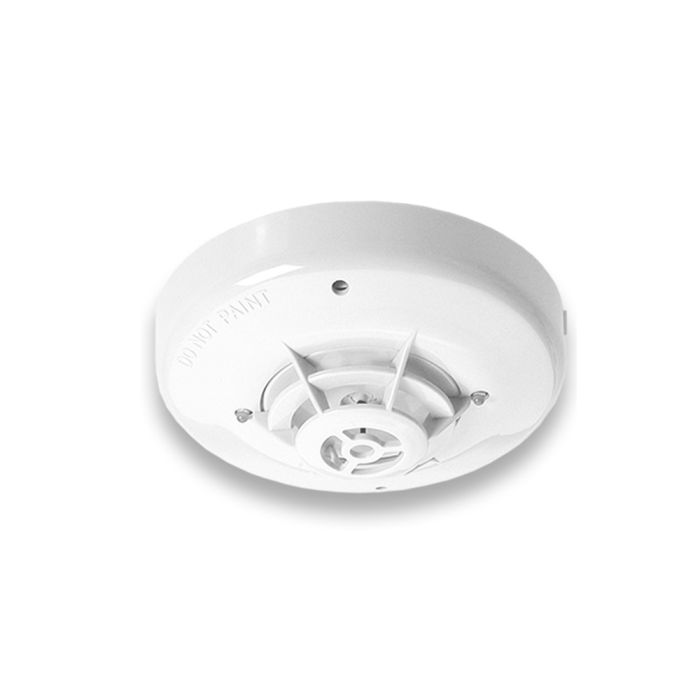

Hochiki Conventional 90°C Heat Detector, White
Conventional Combined Rate of Rise & Fixed Temperature Heat Detector (90°C), White
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Model DCD-CE3 is a Rate of Rise Heat Detector with a 90 °C fixed temperature element using a thermistor and linearising circuit to provide an accurate linear response Heat Detector.
The DCD-CE3 is ideal for use where medium ambient temperatures exist, such as drying rooms or where Smoke Detectors are unsuitable because of the presence of steam or cooking fumes such as in a kitchen.
The DCD-CE3 is supported by a wide range of bases for different applications and these are supported on the majority of conventional systems. A third terminal provides remote indicator output.
The DCD-CE3(WHT) is a Rate of Rise Heat Detector with a 90 °C fixed temperature element using a thermistor and linearising circuit to provide an accurate linear response Heat Detector. The DCD-CE3(WHT) is ideal for use where medium ambient temperatures exist, such as drying rooms or where Smoke Detectors are unsuitable because of the presence of steam or cooking fumes such as in a kitchen. The DCD-CE3(WHT) is supported by a wide range of bases for different applications and these are supported on the majority of conventional systems. A third terminal provides remote indicator output.
Features
- Electronic linear heat detection
- Incorporates a 90° C fixed temperature element
- Remote Indicator output
- Wide voltage range (9.5 ~ 30 V dc)
- Twin fire LEDs allow 360° viewing
- Full range of mounting bases
- Approved by LPCB & VdS
- Also available in ivory
| Category Type | Detector |
|---|---|
| Colour | White |
| Detection | Heat |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
| Operating Voltage | 9.5-30 VDC |
| Quiescent Current | 35μA |
| Maximum current in alarm (typical) | 40mA |
| Remote indicator drive | 20mA (max) / 9.5-14mA (typ) |
| IP rating | IP63 |
| Maximum humidity | 95% RH - Non condensing (at 40°C) |
| Operating temperature range | -10°C to +50°C |
| Storage temperature range | -30°C to +70°C |
| Colour/Case Material | White / Polycarbonate |
| Compatible Bases | YBN-R/6, YBN-R/6SK, YBO-R/6R, YBO-R/6RS, YBO-R/6RN, YBO-R/6PA |
| Base fixing centres (mm) | 48-74 |
| Weight (g) / Dimensions (mm) | 76 / Ø 100 x H 38 |
| Approvals to (EN54:2000) Class A1 & A1R | LPCB, VDS (G204045)* Only applicable to the YBN-R/6SK base |
