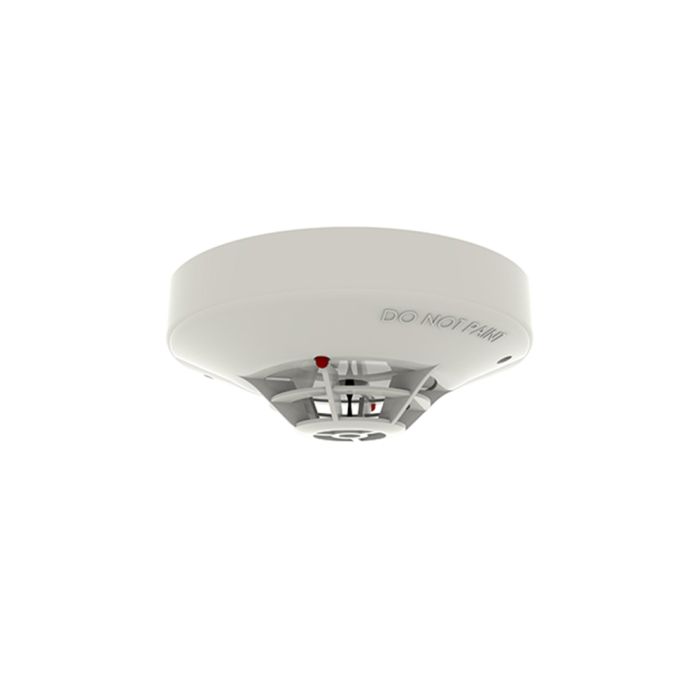

Hochiki Conventional 90°C Fixed Temperature Heat Detector, Ivory
Conventional 90°C Fixed Temperature Heat Detector, Ivory
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Model DFJ-CE3 is a 90°C Fixed Temperature Heat Detector using a thermistor and linearising circuit to provide an accurate linear response Heat Detector. A third terminal provides integral remote indicator output.
The DFJ-CE3 is ideal for use where medium ambient temperatures exist, such as drying rooms or where Smoke Detectors are unsuitable because of the presence of steam or cooking fumes such as in a kitchen.
The DFJ-CE3 is supported by a wide range of bases for different applications and these are supported on the majority of conventional systems
The DFJ-CE3 is a 90 °C Fixed Temperature Heat Detector using a thermistor and linearising circuit to provide an accurate linear response Heat Detector. A third terminal provides integral remote indicator output. The DFJ-CE3 is ideal for use where medium ambient temperatures exist, such as drying rooms or where Smoke Detectors are unsuitable because of the presence of steam or cooking fumes such as in a kitchen. The DFJ-CE3 is supported by a wide range of bases for different applications and these are supported on the majority of conventional systems.
Features
- Electronic linear heat detection
- Remote Indicator output
- Wide voltage range (9.5 ~ 30 V dc)
- Twin fire LEDs allow 360 viewing
- Fixed Temperature Detector
- Full range of mounting bases
- Approved by LPCB & VdS
- Also available in white.
| Category Type | Detector |
|---|---|
| Colour | Ivory |
| Detection | Heat |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
| Operating Voltage | 9.5-30 VDC |
| Quiescent Current | 35μA |
| Maximum current in alarm (typical) | 40mA |
| Remote indicator drive | 20mA (max) / 9.5-14mA (typ) |
| IP rating | IP63 |
| Maximum humidity | 95% RH - Non condensing (at 40°C) |
| Operating temperature range | -10°C to +50°C |
| Storage temperature range | -30°C to +70°C |
| Colour/Case Material | Ivory / Polycarbonate |
| Compatible Bases | YBN-R/6, YBN-R/6SK, YBO-R/6R, YBO-R/6RS, YBO-R/6RN, YBO-R/6PA |
| Base fixing centres (mm) | 48-74 |
| Weight (g) / Dimensions (mm) | 76 / Ø 100 x H 38 |
| Approvals to (EN54:2000) Class A1 & A1R | LPCB, VDS (G204047)* Only applicable to the YBN-R/6SK base |
