In stock
Product Code
35278.62.BL1
SKU
35278.62.BL1

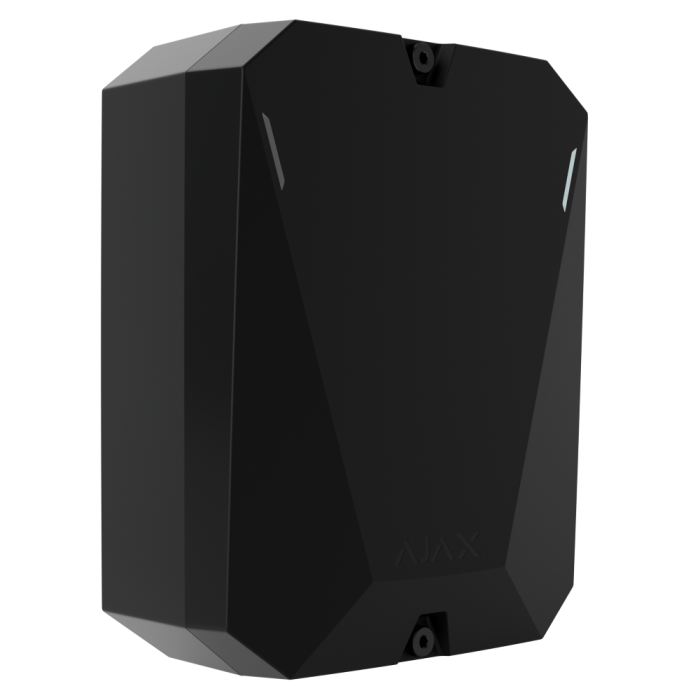

Ajax MultiTransmitter Jeweller (8EU) plug type G - Black
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
| Approval | Grade 2 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Integration modules |
| Colour | Black |
| IP Rating | IP40 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Frequency bands |
866.0 – 866.5 MHz Depends on the sales region. |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range |
up to 1,800 m Between the range extender and a hub in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
Wired devices connection
| Number of zones |
Multiple devices can be connected to one zone. The number of connected devices depends on their power consumption. |
| Type of connection |
NC, NO, EOL MultiTransmitter Jeweller with a firmware version lower than 2.13. NC, NO, EOL, 2EOL, 3EOL 2EOL and 3EOL connection types are only available for MultiTransmitter Jeweller with the firmware version 2.13.0 or later. The integration module should be added to a compatible hub running on OS Malevich 2.13 or later. If Hub (4G) Jeweller is used, the control panel should be updated to OS Malevich 2.28 or later. |
| EOL resistance | from 1 kΩ to 7.5 kΩ with 100 Ω increment MultiTransmitter Jeweller with a firmware version lower than 2.13. EOL resistance is measured automatically in the Ajax PRO apps. from 1 kΩ to 15 kΩ for each resistor, up to 30 kΩ of total resistance MultiTransmitter Jeweller with a firmware version 2.13 and higher. Resistance is measured automatically for each EOL resistor in the Ajax PRO apps. |
| Cable length |
up to 400 m When using a signal cable with a 0.22 mm² copper-clad aluminium conductor. |
| Operation mode | pulse, bistable Adjusted by a PRO or user with admin rights in the Ajax app. |
| Event types | 15 event types of wired devices Tamper alarm Intrusion Fire Auxiliary alarm Panic button Gas alarm Malfunction Leakage Glass break High temperature Low temperature Masking Duress code (opening) Vibration (seismic sensor) Custom Adjusted by a PRO or a user with admin rights in the Ajax app. |
Sabotage protection
| Protection against spoofing | device authentication |
| Tamper alarm | 2 tampers |
| Communication loss detection | after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
| Instant detection of wired connection loss, short circuits, and malfunctions | when using EOL/2EOL/3EOL connection type Depends on the connection type. |
Power supply
| MultiTransmitter Jeweller power supply | 100–240 V, 50/60 Hz |
| MultiTransmitter Jeweller backup power supply | 12 V⎓ battery, 4 or 7 Ah 12 V⎓, up to 7 Ah capacity with a full charge cycle of up to 30 hours MultiTransmitter Jeweller average consumption from the backup battery after the main power supply loss is up to 33 mA (without detectors). When using a 7 Ah battery, the minimum operating time at a maximum load of 1 А will be 7 hours. For autonomous work for 12 or 24 hours, the maximum load should be no more than 0.55 A and 0.28 A, respectively. The backup battery is not included in the set. |
Board
| Dimensions | 192 × 238 × 100 mm |
| Weight | 874 g |
| Operating temperature range | from −10 °C to +40 °C |
| Operating humidity | IP40, IK06 |
Colour
| Available colours | Black, White |
Complete Set
| Contains | MultiTransmitter Jeweller board Casing Power cable Screw terminal block Adapter (only for INCERT compliance) 12 V⎓ battery connection cable Installation kit Quick start guide |
Warranty
| Warranty Period | 24 months |
