In stock
Product Code
56211.18.NC1
SKU
56211.18.NC1

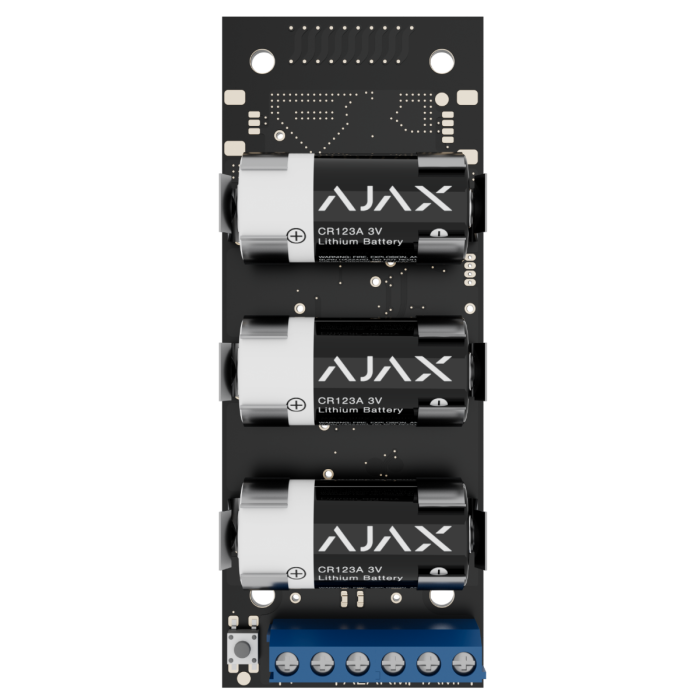

Ajax Transmitter Jeweller (8EU) GB
Wireless module to integrate one third-party device into the Ajax system
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Wireless module for integrating one third-party wired detector into an Ajax system. It allows external sensors to report alarms through the Ajax hub. It gives you more flexibility on awkward sites and helps protect the margin by reducing workarounds.
Key features:
- Connects one wired detector
- Wireless Jeweller communication
- Tamper input support
- Compact enclosure
- Jeweller wireless communication
- Designed to extend or integrate Ajax systems
- Remote status visibility
- Installer-friendly commissioning
- Supports more flexible system design
- Connects one wired third-party detector to Ajax
| Approval | Grade 2 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Integration modules |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Frequency bands |
866.0 – 866.5 MHz Depends on the sales region. |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range |
up to 1,600 m Between the range extender and a hub in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
Wired devices connection
| Supported configurations |
Transmitter Jeweller has two pairs of terminal inputs for tamper and alarm sensor connection. Alarm and tamper inputs can be used to connect a wired device using the AATT (Alarm Alarm Tamper Tamper) scheme. |
| Terminals for wired device connection |
“+ –” — 3.3 V⎓ power supply output for connecting a wired device. ALARM — inputs for connecting a wired device. TAMP — inputs for connecting a tamper of a wired device. |
| Third-party device contact states |
NO, NC |
| Tamper contact states |
NO, NC |
| Cable length |
up to 130 m When using 24 AWG twisted pair cable. |
| Operating modes |
pulse, bistable |
| Sensor modes |
Notify of alarms, Switch arming modes |
| Event types |
14 event types of wired devices Intrusion Fire Auxiliary alarm Panic button Gas alarm Malfunction Leakage Glass break High temperature Low temperature Masking Duress code (opening) Vibration (seismic sensor) Custom |
Sabotage protection
| Protection against spoofing | device authentication |
| Accelerometer |
alert when the integration module is moved |
| Tamper alarm terminals | Terminals for connecting to a wired device tamper (if applicable). |
| Communication loss detection | after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
Power supply
| Battery | 3 × CR123A |
| Output to the connected wired device | 3.3 V⎓, up to 125 mA One power supply line from Transmitter Jeweller. |
Board
| Dimensions | 100 × 39 × 22 mm |
| Weight | 74 g |
| Operating temperature range | from −25 °C to +50 °C |
| Electric shock protection | Class III |
Colour
| Available colours | N/A |
Complete Set
| Contains | Transmitter Jeweller 3 × CR123A battery (pre-installed) Installation kit Quick start guide |
Warranty
| Warranty Period | 24 months |
