In stock
Product Code
XL-RDU
SKU
HA8701

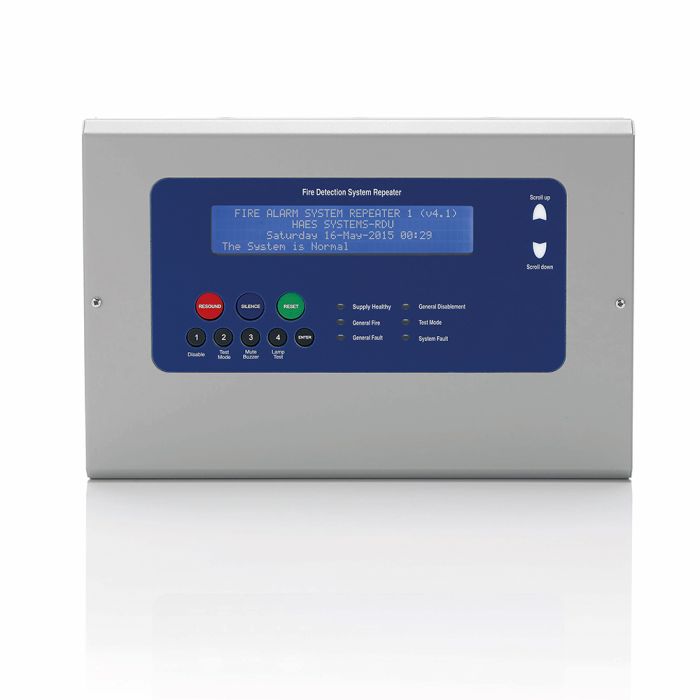

Haes Esento Remote Display Unit Repeater Panel
Esento Remote Display Unit repeater Panel
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Haes Esento Remote Display Unit
LCD remote display unit fire alarm repeater panel, fully functional or passive. Suitable for the ESENTO conventional panel range (not suitable for Eclipse panels). Can be used on a ESENTO network to display and control across the entire network.
Features:
- 4 x 40 character LCD display
- Full system control
- Fire & fault outputs
- Remote key switch input
- PSU fault inputs
- 28v dc supply input
- USB input for PC program upload/download
- Test mode, with or without sounders
- Disable zones, sounder O/Ps, aux O/Ps & delays
| Category Type | Repeater |
|---|---|
| Colour | Grey |
| IP Rating | IP30 |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
Specifications
| Enclosure |
1.2mm Mild Steel IP30. Colour ref: MW334E Interpon powder coat |
| Cable Entry |
Via 20mm knockouts located in the top and rear of the cabinet |
| Dimensions |
305mm W x 204mm H x 42mm D |
| Display | 4 x 40 characted backlit LCD display |
| Input Voltage | Requires 24v dc supply |
| Inputs | Optional key switch input |
| Outputs | 1 x Fire, 1 x Fault 24v dc outputs |
| Communication Wiring | Fault tolerant wiring requires 4 core (min 1.5mm) fireproof cable, Legacy radial wiring requires 2 core (min 1.5mm) fireproof cable |
