In stock
Product Code
YBN-R/6SK(WHT)
SKU
HO2006DW

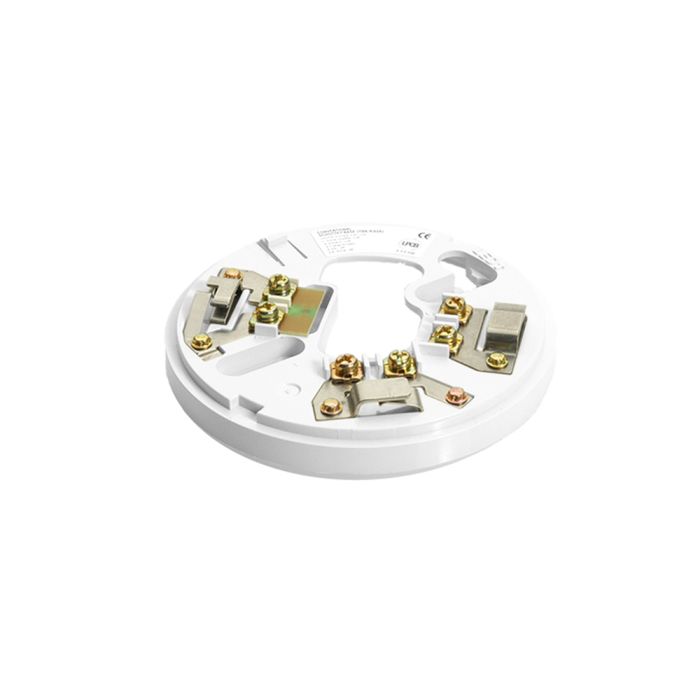

Hochiki Conventional Schotty Diode Base, White
Conventional Schottky Diode Mounting Base, White
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Model YBN-R/6SK is a Conventional Detector Mounting Base with in-line Schottky Diode, associated with the CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm control panels.
It is supplied with square cable clamps for secure and reliable cable termination and the base provides line continuity during detector removal. Therefore Call Points can be wired in any order on the zone providing a suitable panel and End Of Line (EOL) unit is used. The integrated third terminal provides remote indicator output.
The YBN-R/6SK(WHT) is a Conventional Detector Mounting Base with in-line Schottky Diode, associated with the CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm control panels. It is supplied with square cable clamps for secure and reliable cable termination and the base provides line continuity during detector removal. Therefore Call Points can be wired in any order on the zone providing a suitable panel and End Of Line (EOL) unit is used. The integrated third terminal provides remote indicator output.
Features
- Integral remote indicator output
- In-line Schottky Diode for Line Continuity
- Low Profile, only 8 mm
- Rugged design
- Quick connections via square cable clamps
- Accepts 2.5 mm2 cables
- Bayonet slot, low insertion force for detectors.
| Category Type | Base |
|---|---|
| Colour | White |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
| Operating Voltage | 15-30 VDC |
| Operating temperature range | -10°C to +50°C |
| Storage temperature range | -30°C to +60°C |
| Maximum Humidity | 95% RH Non-condensing (at 40°C) |
| Colour/Case Material | White / ABS |
| Weight (g) / Dimensions (mm) | 52 / 100 / 8 |
| Fixing centres (mm) | 48-74 |
