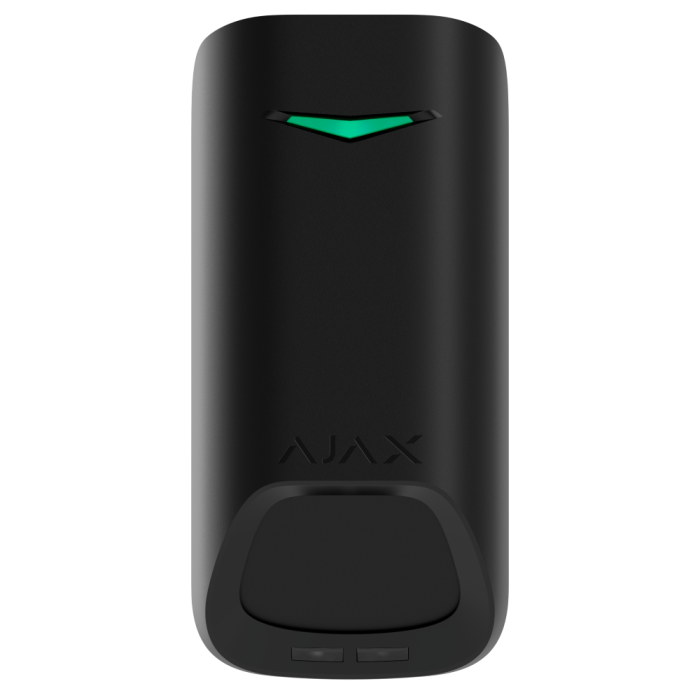

Ajax Superior MotionProtect Plus G3 Jeweller (8EU) ASP - Black
Wireless PIR motion detector with an additional K-band microwave sensor and anti-masking system
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Superior MotionProtect G3 Plus Jeweller
Wireless PIR motion detector with an additional K-band microwave sensor and anti-masking system
Dual accuracy for high stakes. Now wireless.
Superior MotionProtect Plus G3 Jeweller delivers uncompromising protection where no move can be overlooked. It's the first-ever wireless Grade 3 motion detector with dual detection technology. In addition to PIR-based detection, it uses a K-band microwave sensor to distinguish real threats from thermal interference and prevent false alarms. The device detects both slow and fast movement up to 15 m away, as well as any crawl-under attempt. An advanced anti-masking system instantly responds when someone blinds the detector — whether with an object, paint, or tape. And thanks to the wire-free design, installation takes only minutes.
Built to stand out
| Dual motion detection to prevent false alarms from airflows, HVAC systems, and other thermal interference |
Detection of any movement: fast or slow, high or low |
| Advanced protection against intricate sabotage techniques |
Fully wireless device with up to four years of battery life |
| Installation and setup within few minutes |
Enhanced motion detection
Dual detection technology - with PIR and K-band microwave sensors
Software algorithm and three sensitivity levels - to avoid false alarms
Proprietary optical system - with PIR sensor and multifaceted mirror to focus IR radiation
Horizontal viewing angle - 90 degrees
vertical viewing angle - 71 degrees
Detection of any movement - fast, slow or crawling
Regualar self-check - of PIR, microwave, and anti-masking sensors
**Superior MotionProtect Plus G3 Jeweller does not support the pet immunity feature.**
Enhanced wireless technologies
Ajax systems use secure two-way communication powered by proprietary radio protocols. Superior Jeweller delivers Grade 3 level reliability with strong encryption, advanced frequency hopping, and outstanding energy efficiency. Wings complements it by ensuring devices always have the latest firmware through regular updates.
Long-lasting performance
Up to four years of autonomous operation
High-performance batteries from proven manufacturers
Pre-installation battery testing for reliability
Minimal impact of threshold temperatures on battery life
Early low-battery warnings
Easy battery replacement within minutes
Sabotage resistance
Advanced anti-masking system
Three tamper buttons to detect dismantling or detachment
Locker for fixing the device on the SmartBracket mounting panel
Frequency hopping for radio interference and jamming protection
Device authentication against spoofing
Communication loss detection withing 36 seconds
Regular polling to control the device ad the built-in sensor states
Automatic device self-check with state report
Hassle-free installation and setup
| Installation | Setup | Configuration | Monitoring |
| Quick installation without enclosure disassembly Built-in spirit level Option for side installation Ready to operate straight out of the box Up to seven years of operation on pre-installed batteries All necessary fasteners included in the complete set |
Adding to the system via QR code Setup in minutes via an Ajax app — no programming required |
Configuration and testing remotely or on site | Instant notifications of alarms and events Real-time notifications when maintenance is required |
| Approval | Grade 3 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Motion detectors |
| Colour | Black |
| IP Rating | IP30 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Superior Jeweller data transfer protocol |
Proprietary wireless protocol for transmitting commands, alarms, and events. An upgraded version of the Jeweller radio protocol for Ajax Superior devices, ensuring compliance with Grade 3 (EN 50131). Key features: Two-way communication. Advanced sabotage protection. Enhanced block encryption with a dynamic key. Instant notifications. Remote control and configuration in Ajax apps. |
| Frequency bands |
865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation |
GFSK |
| Radio signal range |
up to 3,000 m Between detector and control panel (or range extender) in an open space. |
| Encrypted communication |
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity. |
| Frequency hopping |
Radio communication uses frequency hopping to prevent interception and jamming. |
| Wings communication technology |
Proprietary wireless communication technology for uploading firmware updates. Key features: Two-way communication. Advanced sabotage protection. Block encryption featuring a dynamic key. Data packet reload in case of transmission errors. Data packets delivery check. |
| Frequency bands |
865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz |
| Radio communication range |
up to 3,000 m Between the device and a hub (or a range extender) in an open space. The maximum range depends on the hub model. |
| Encrypted communication |
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity. |
| Frequency hopping |
To prevent radio interference and jamming. |
Detection
| Sensitive elements | PIR sensor microwave sensor K-band microwave sensor to prevent false alarms caused by thermal interference. |
| Motion detection distance |
up to 15 m When installed at the height of 2.4 m |
| Reduced blind zone | up to 30 cm Detects a crawling person at a distance of 30 cm from the detector. |
| Motion detection angles |
horizontal: 90° vertical: 71° |
| Motion detection speed |
from 0.1 to 4.0 m/s The direction of the detector sensors should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity |
3 levels Adjusted by a PRO or a user with admin rights in the Ajax app |
| False alarm prevention |
SmartDetect Software algorithm. |
| Temperature compensation |
Effective motion detection at temperatures from −10°C to +40°C. |
| Self-test of sensitive elements | The device checks its sensors’ state and notifies if any malfunction is detected. |
Sabotage protection
| Tamper alarm | 3 tampers Notifications on attempts to detach the detector from the surface or unlock the SmartBracket lock and remove the detector from the mounting panel. |
| Protection against spoofing |
device authentication |
| Anti-masking system |
detects attempts to block the detector view |
| Lock for SmartBracket | To secure the detector on SmartBracket. |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller/Fibra settings. |
Power supply
| Battery | 4 × CR123A Pre-installed. |
| Type | Type C |
| Calculated battery life | Up to 7 years |
| Detector’s operating voltage range | 3.5-6.0 V= V= |
| Detector’s nominal operating voltage | 6 V |
| Quiescent detector’s current consumption at nominal voltage | 40 uA |
| Maximum detector’s current consumption at nominal voltage | 96 mA |
| Full capacity | 3,100 mAh |
| Low battery voltage | 5.2 V= |
| Low battery recovery volatage | 5.4 V= |
| End of life battery voltage | 3.6 V= |
| End of life battery capacity | 200 mAh |
Enclosure
| Detector dimensions | 135 x 66 x 60 mm |
| Weight of the black device | 315 g |
| Weight of the white device | 310 g |
| Operating temperature range | from -10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP30 |
Colour
| Available colours | Black, White |
Complete Set
| Contains | Superior MotionProtect G3 Plus Jeweller SmartBracket mounting panel 4 × CR123A battery (pre-installed) Installation kit Quick start guide |
Warranty
| Warranty Period | 24 months |
