In stock
Product Code
SOC-E3N
SKU
HO2002N

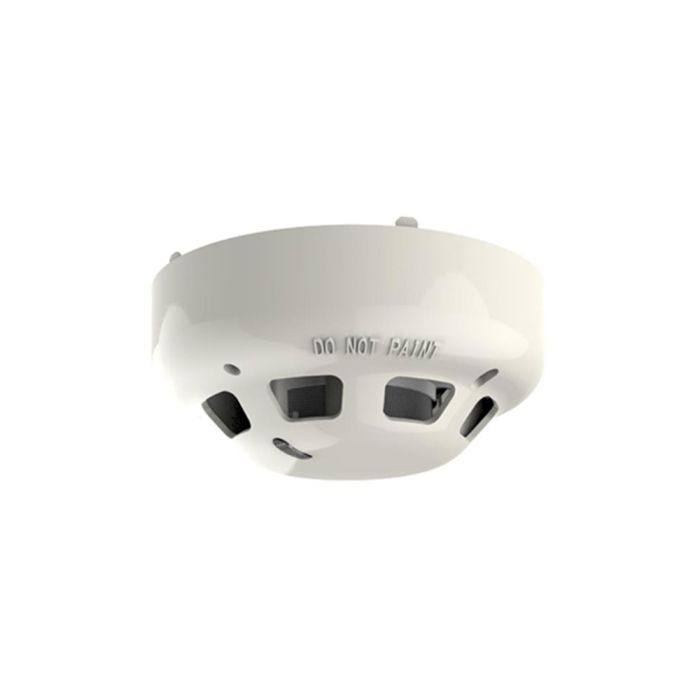

Hochiki SOC-E3N Conventional Photoelectric Smoke Detector Ivory
Conventional Photoelectric Smoke Detector Ivory
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Compatible with the majority of existing Conventional systems. The SOC-E3N incorporates Hochiki’s unique High Performance photoelectric smoke chamber removing the need to use Ionisation Detectors in the majority of applications. ‘ASWV’ Drift Compensation technology is incorporated to ensure the Detector is operating at its optimum sensitivity and therefore reducing potential false alarms. If the contamination limit is exceeded then the integral red LED will flash once every three seconds to give a visual warning. The smoke chamber is easily removed or replaced for cleaning and utilises a unique baffle design which allows smoke to enter the chamber whilst keeping out ambient light.
The SOC-E3N is an optical Smoke Detector, which is fully compatible with the majority of existing Conventional systems. The SOC-E3N incorporates Hochiki’s unique High Performance photoelectric smoke chamber removing the need to use Ionisation Detectors in the majority of applications. ‘ASWV’ Drift Compensation technology is incorporated to ensure the Detector is operating at its optimum sensitivity and therefore reducing potential false alarms. If the contamination limit is exceeded then the integral red LED will flash once every three seconds to give a visual warning. The smoke chamber is easily removed or replaced for cleaning and utilises a unique baffle design which allows smoke to enter the chamber whilst keeping out ambient light.
Features
- Removable, High Performance chamber
- Automatic Sensitivity Window Verification (ASWV) – Drift Compensation Technology
- Remote Indicator output
- Wide voltage range (12 ~ 30 VDC)
- Low profile design with one piece outer cover
- Single fire LED - 360° viewing
- Range of mounting bases
- Approved by LPCB and VdS.
| Category Type | Detector |
|---|---|
| Colour | Ivory |
| Detection | Optical |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
| Operating Voltage | 12-30 VDC |
| Quiescent Current | 35μA |
| Maximum current in alarm (typical) | 40mA |
| Remote indicator drive | 20mA (max) |
| Operating temperature range | -10°C to +50°C |
| Storage temperature range | -30°C to +60°C |
| Maximum humidity | 95% RH. Non-condensing (at 40°C) |
| IP rating | IP42 |
| Colour/Case Material | Ivory / ABS |
| Compatible Bases | YBN-R/6, YBN-R/6SK, YBO-R/6R, YBO-R/6RS, YBO-R/6RN, YBO-R/6PA |
| Base fixing centres (mm) | 48-74 |
| Weight (g) / Dimensions (mm) | 95 (excluding base) / Ø 100 x H 38 |
| Approvals to (EN54:2000) Class A1 & A1R | LPCB EN54:Part7 VdS (G217088) |
